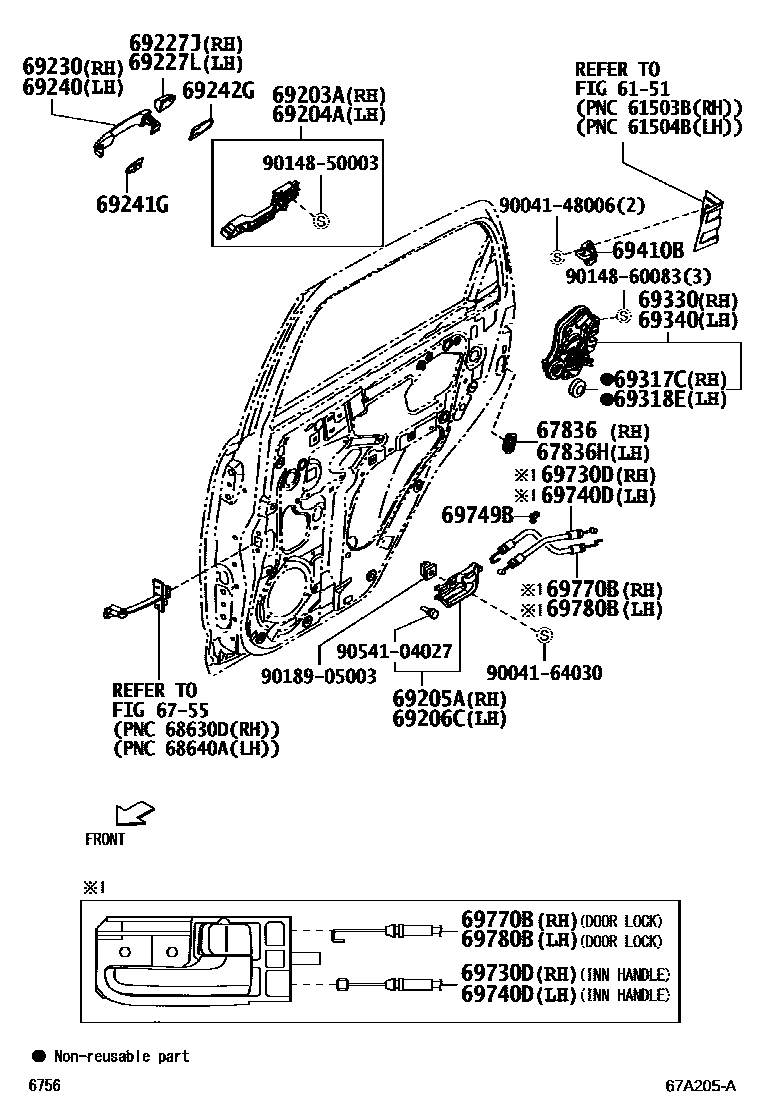

REAR DOOR LOCK & HANDLE
6151SIDE MEMBER
6755REAR DOOR PANEL & GLASS
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
HI-G PACKAGE,DK.GRAY,TRIM1#; MID PACKAGE,DK.GRAY,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
HI-G PACKAGE,DK.GRAY,TRIM1#; MID PACKAGE,DK.GRAY,TRIM1#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE,W23
GRAY ME.,S33
CHAMPAGNE ME.,T23
BRITISH GREEN MC.,G37
BLUE M.M.,B58
RED,R40
SILVER ME.,S28
BLACK M.M.,X07
BLACK
*CR,DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE&WIRELESS DOOR LOCK-KEY LESS(EC ONEPEACE)
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE,W23
GRAY ME.,S33
CHAMPAGNE ME.,T23
BRITISH GREEN MC.,G37
BLUE M.M.,B58
RED,R40
SILVER ME.,S28
BLACK M.M.,X07
BLACK
*CR,DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE&WIRELESS DOOR LOCK-KEY LESS(EC ONEPEACE)
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE,W23
GRAY ME.,S33
CHAMPAGNE ME.,T23
BRITISH GREEN MC.,G37
BLUE M.M.,B58
RED,R40
SILVER ME.,S28
BLACK M.M.,X07
NO PAINT REQ.
PLATING,DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE&WIRELESS DOOR LOCK-KEY LESS(ECONEPEACE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE,W23
GRAY ME.,S33
CHAMPAGNE ME.,T23
BRITISH GREEN MC.,G37
BLUE M.M.,B58
RED,R40
SILVER ME.,S28
BLACK M.M.,X07
NO PAINT REQ.
PLATING,DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE&WIRELESS DOOR LOCK-KEY LESS(ECONEPEACE)
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69317CSEAL, DOOR LOCK WIRING HARNESS, RH
69318ESEAL, DOOR LOCK WIRING HARNESS, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
INN HANDLE SIDE
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
INN HANDLE SIDE
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
DOOR LOCK
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
DOOR LOCK
9004148006
main90041-48006
9004164030
main90041-64030
9014850003
main90148-50003
9014860083
main90148-60083
9018905003
main90189-05003
9054104027
main90541-04027
30 parts on this diagram · 1 diagram in section
