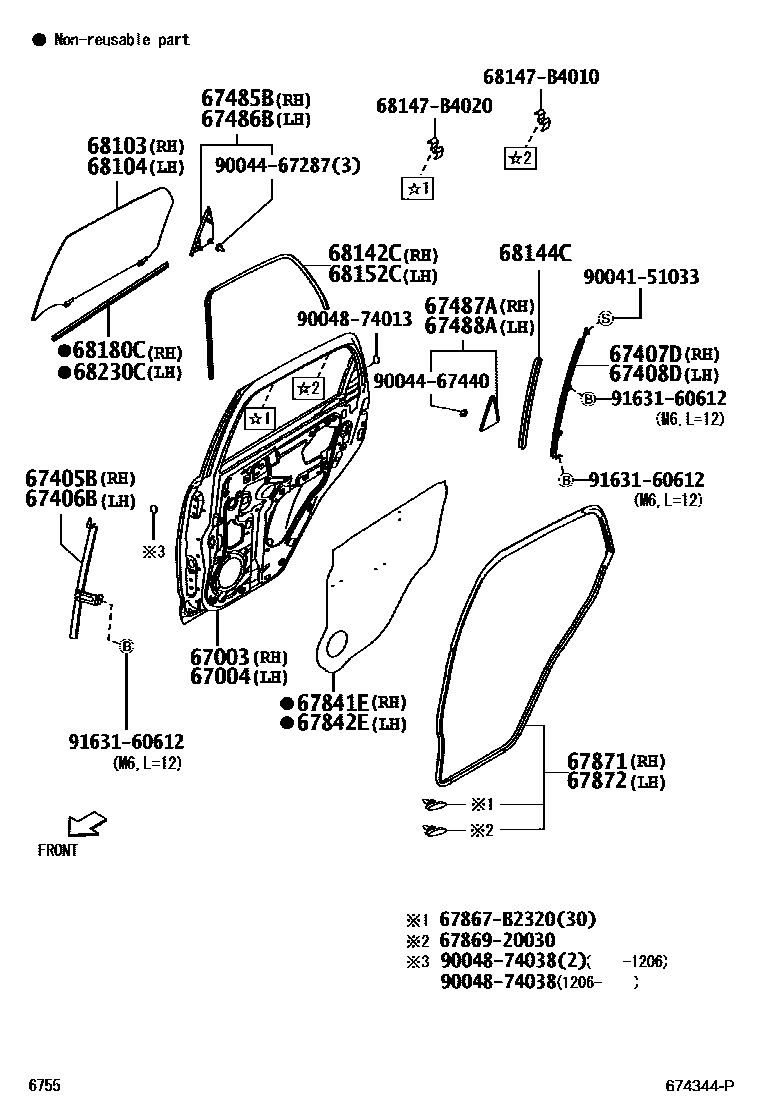

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH
67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH
67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH
67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
GREEN
SMOKE,REAR SIDE GLASS-PRIVATE
68104GLASS SUB-ASSY, REAR DOOR, LH
GREEN
SMOKE,REAR SIDE GLASS-PRIVATE
68142CRUN, REAR DOOR GLASS, RH
68144CRUN, REAR DOOR GLASS, LOWER FRONT
68152CRUN, REAR DOOR GLASS, LH
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
67867B2320CLIP, DOOR WEATHERSTRIP
main67867-B2320
6786920030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-20030
68147B4010RUN, REAR DOOR WINDOW, REAR
main68147-B4010
68147B4020RUN, REAR DOOR WINDOW, REAR
main68147-B4020
9004151033
main90041-51033
9004467287
main90044-67287
9004467440
main90044-67440
9004874013
main90048-74013
9004874038
main90048-74038
9163160612
main91631-60612
31 parts on this diagram · 4 diagrams in section
