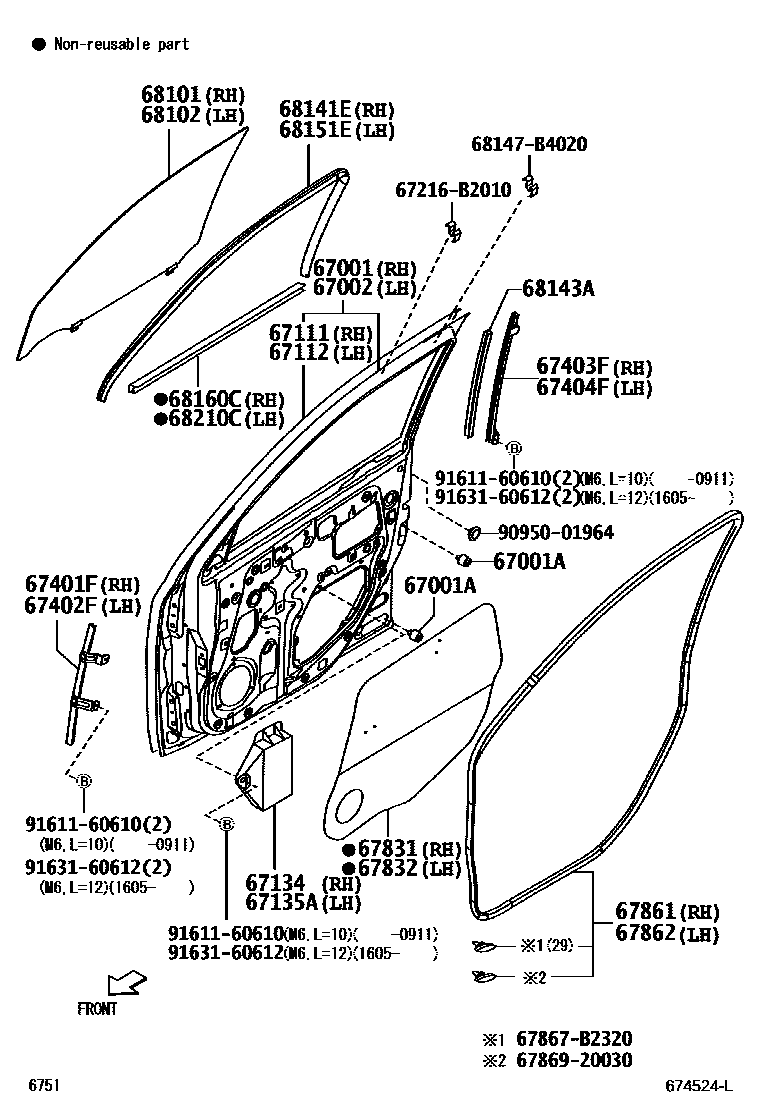

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67134PAD, FRONT DOOR OUTER PANEL, RH
67135APAD, FRONT DOOR OUTER PANEL, LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
GREEN
GREEN UV,REAR SIDE GLASS-PRIVATE
68102GLASS SUB-ASSY, FRONT DOOR, LH
GREEN
GREEN UV,REAR SIDE GLASS-PRIVATE
68141ERUN, FRONT DOOR GLASS, RH
68143ARUN, FRONT DOOR GLASS, NO.2
68151ERUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
67216B2010SPACER, REAR DOOR GLASS CHANNEL
main67216-B2010
67867B2320CLIP, DOOR WEATHERSTRIP
main67867-B2320
6786920030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-20030
68147B4020RUN, REAR DOOR WINDOW, REAR
main68147-B4020
9095001964
main90950-01964
9161160610
main91611-60610
9163160612
main91631-60612
29 parts on this diagram · 4 diagrams in section
