RADIATOR GRILLE

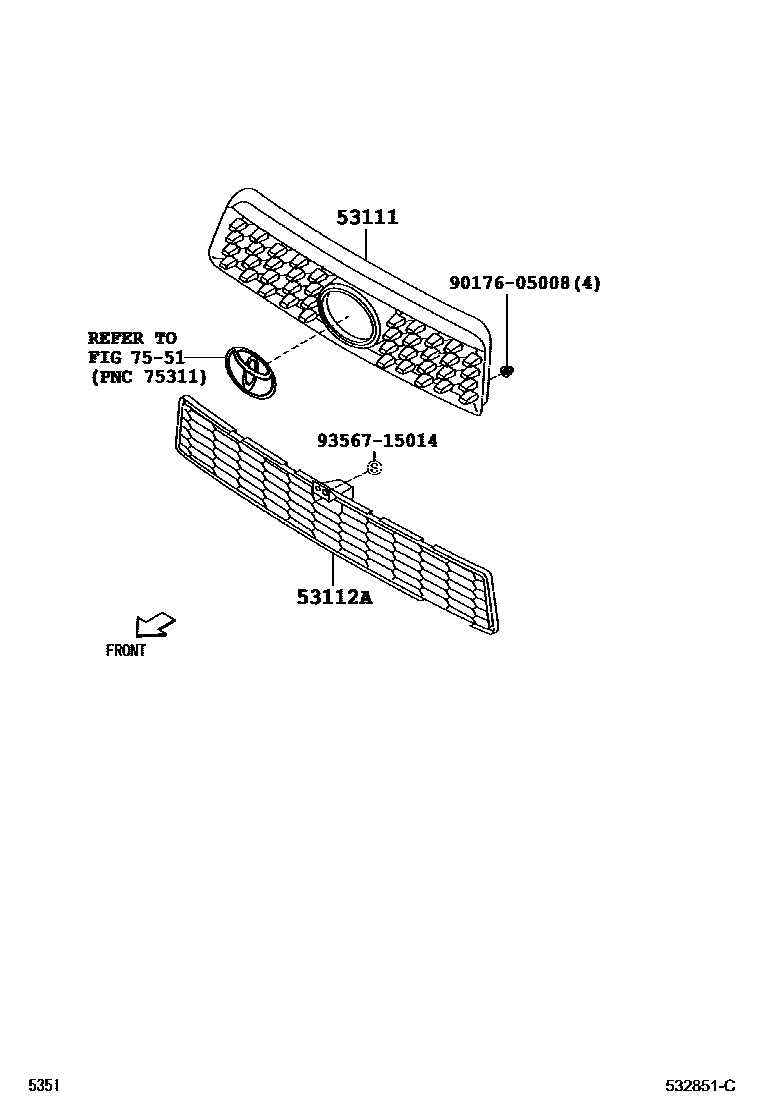

Parts diagram

53111GRILLE, RADIATOR

main53111-B4040supersedes 53111-B4050i200811-200911

53112AGRILLE, RADIATOR, LOWER

main53112-B4010i200811

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

9017605008

main90176-05008

9356715014

main93567-15014

5 parts on this diagram · 1 diagram in section
