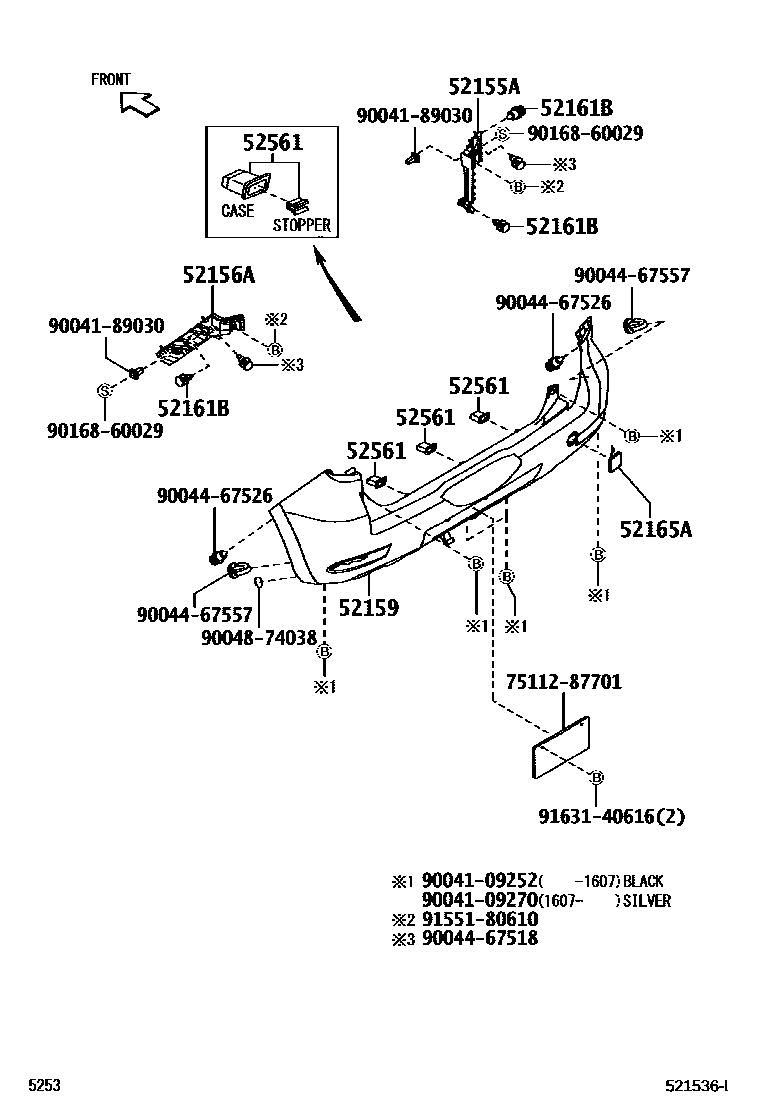

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-B4010iJ200,210200811

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-B4010iJ200,210200811

52159COVER, REAR BUMPER

main52159-B4170iJ200,210200811

52161BPIECE, REAR BUMPER

main90044-68320×3iJ200,210200811

sub90044-68378

52165ACOVER, REAR BUMPER, UPR RH

main52165-B4050iJ200,210200811

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-B1010×3iJ200,210200811

7511287701BASE, LICENSE PLATE BRACKET

main75112-87701

9004109252

main90041-09252

9004109270

main90041-09270

9004189030

main90041-89030

9004467518

main90044-67518

9004467526

main90044-67526

9004467557

main90044-67557

9004874038

main90048-74038

9016860029

main90168-60029

9155180610

main91551-80610

9163140616

main91631-40616

17 parts on this diagram · 1 diagram in section
