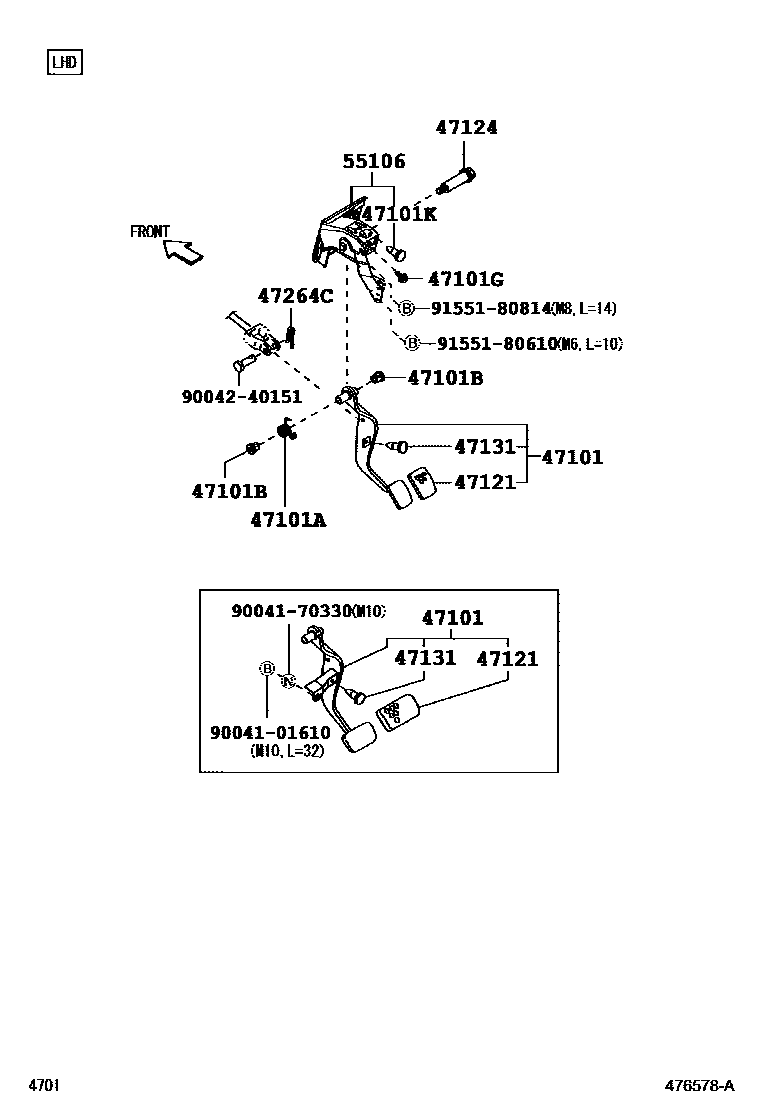

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47110-B4040iJ200,210..5F200811

main47110-B4050iJ200..E4AT200811-200911

main47110-B4060iJ200,210..E4AT201605

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90045-08409iJ200..MXC;J200,210..5F..LA200811

main90045-08410iJ200,210..E4AT201605

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121×2iJ200,210200811

47101GBOLT, BRAKE PEDAL STOP, NO.1

main45898-B2010iJ200,210200811

47101KCUSHION(FOR PARKING LOCK CABLE)

main90045-40158iJ200,210..5F..LA200811

47121PAD, BRAKE PEDAL

main31321-87204iJ200,210..5F200811

main47121-87202iJ200,210..E4AT200811

47124SHAFT, BRAKE PEDAL

main31324-B2010iJ200,210200811

47131CUSHION(FOR STOP LAMP SWITCH)

main90045-40158iJ200..MXC;J200,210..5F..LA200811

main90045-40226iJ200,210..E4AT201605

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iJ200,210200811

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-B4030iJ200,210..E4AT200811

main55106-B4050iJ200,210..5F200811

9004101610

main90041-01610

9004170330

main90041-70330

9004240151

main90042-40151

9155180610

main91551-80610

9155180814

main91551-80814

15 parts on this diagram · 1 diagram in section
