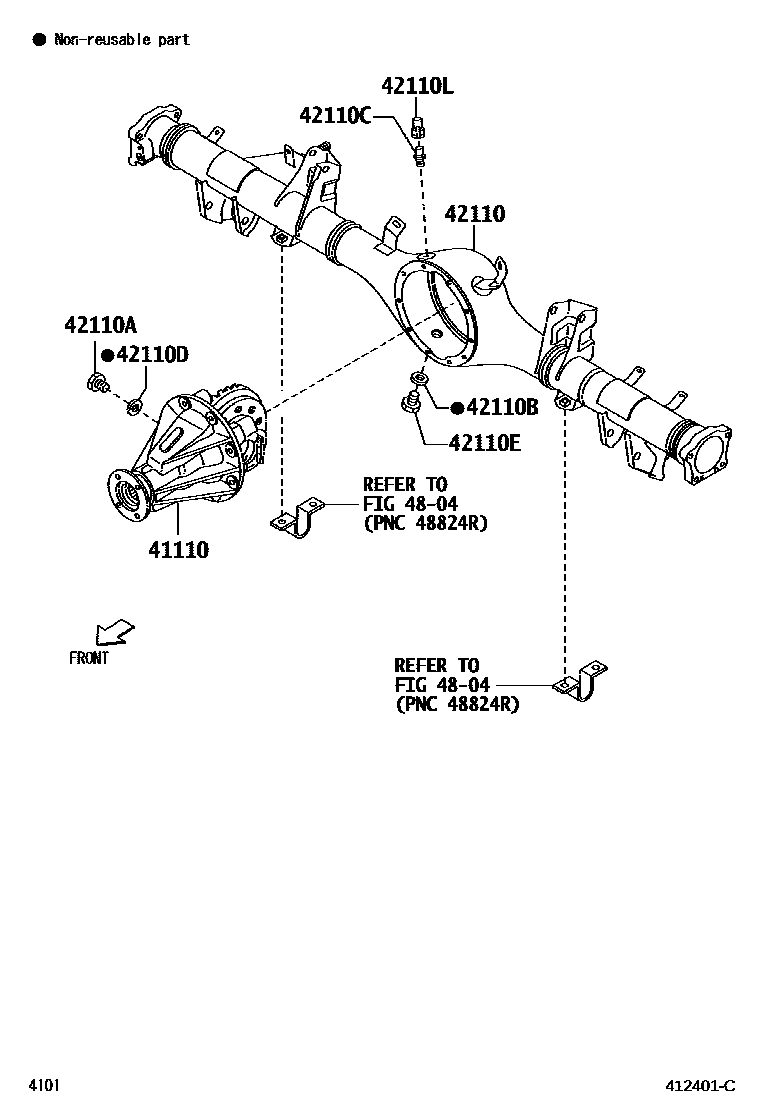

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0003 1

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-B4011iJ200..5F..MXC;J200..E4AT..LA200811

*FGR=41:8=5.125

main41110-B4021iJ210..5F201605

*FGR=41:8=5.125

main41110-B4031iJ210..E4AT201605

*FGR=39:7=5.571

main41110-B4041iJ200..5F201605

main41110-B4110iJ200..E4AT200811-200911

42110HOUSING ASSY, REAR AXLE

main42110-B4051iJ200,210201605

main42110-B4060iJ200..5F200811-200901

main42110-B4061iJ200..5F200902-200911

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90043-41046iJ200,210200811

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main90044-30237iJ200,210200811

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90049-15026iJ200,210200811-201803

main90049-15059iJ200,210201804

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main90044-30311iJ200,210200811

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90043-41068iJ200,210200811

42110LPLUG BREATHER, NO.2

main90049-15052iJ200,210200811

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

9 parts on this diagram · 2 diagrams in section
