TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

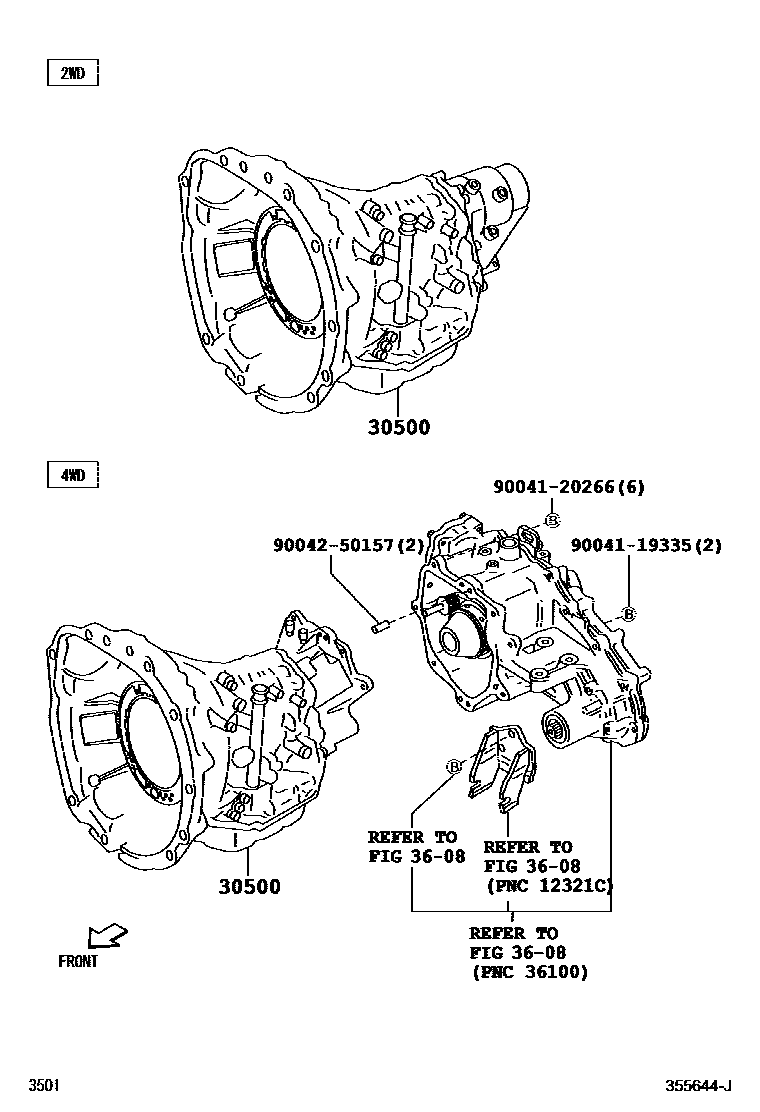

Parts diagram

30500TRANSAXLE ASSY, AUTOMATIC

main35000-B0020i200811-200911

JL8

main35000-B0040i201605

KL8

main35000-B4060i201605

FU8,FW8

3608TRANSFER ASSEMBLY & GASKET KIT

→ Go to FIG 36-08

9004119335

main90041-19335

9004120266

main90041-20266

9004250157

main90042-50157

5 parts on this diagram · 1 diagram in section
