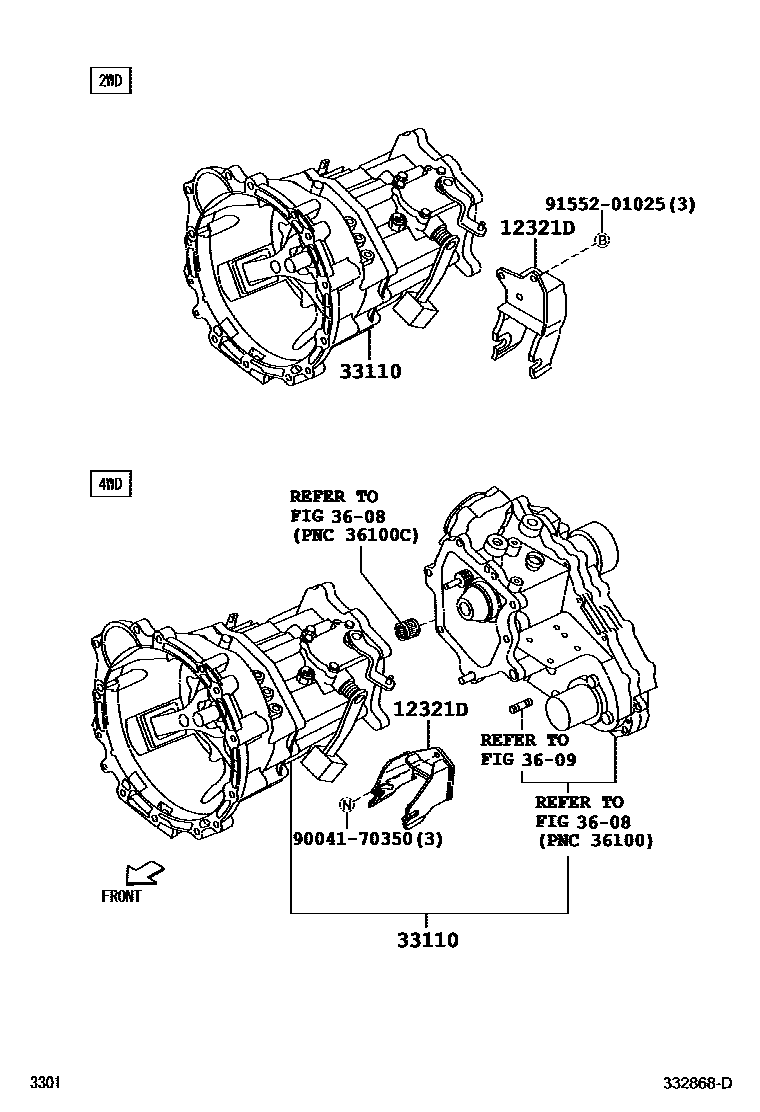

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

12321DBRACKET, ENGINE MOUNTING, REAR

main12321-B4020i3SZVE..J210..5F201605

main12321-B4030i3SZVE..J200..5F200811-200911

33110TRANSMISSION ASSY, MANUAL

main33010-B4020iJ210..5F201605

main33030-B4020iJ200..5F201605

main33030-B4050iJ200..5F200811-200911

3608TRANSFER ASSEMBLY & GASKET KIT

→ Go to FIG 36-08

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

9004170350

main90041-70350

9155201025

main91552-01025

6 parts on this diagram · 1 diagram in section
