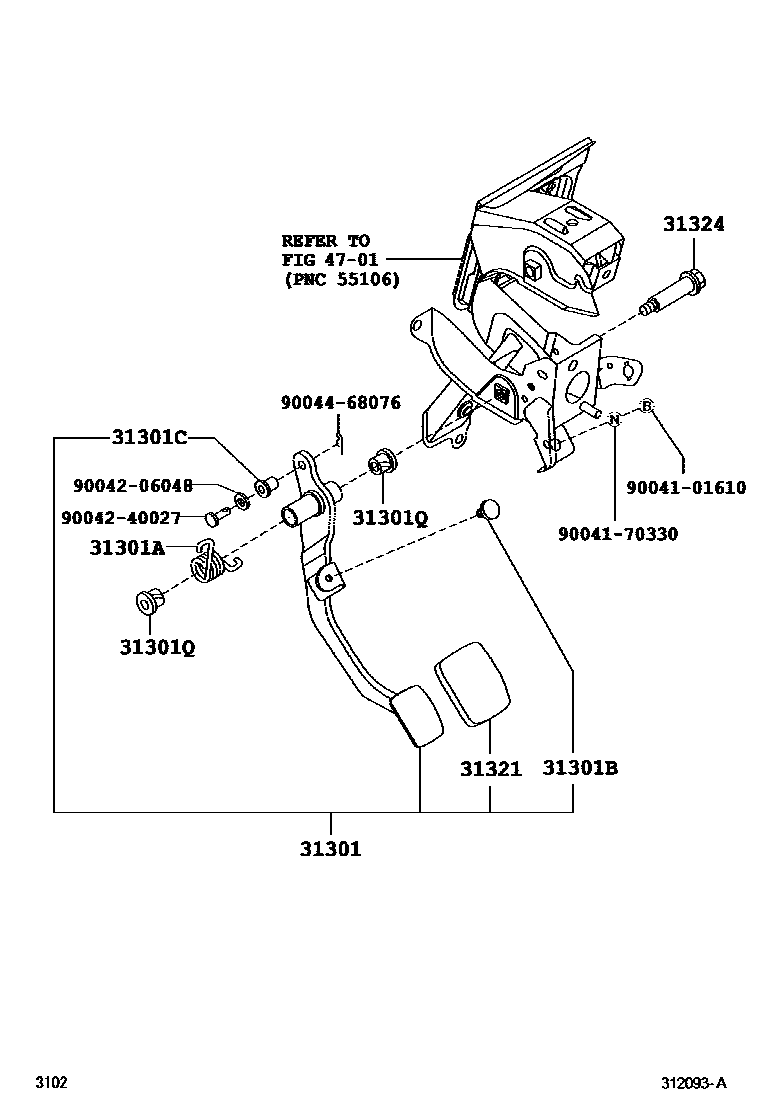

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31310-B4060iJ200..5F200811-200911

31301ASPRING(FOR CLUTCH PEDAL)

main90045-08416iJ200..5F200811-200911

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90045-40158iJ200..5F200811-200911

31301CBUSH(FOR CLUTCH PEDAL)

main90043-86123iJ200..5F200811-200911

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90043-86121×2iJ200..5F200811-200911

31321PAD, CLUTCH PEDAL

main31321-87204iJ200..5F200811-200911

31324SHAFT, CLUTCH PEDAL

main31324-B2010iJ200..5F200811-200911

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

9004101610

main90041-01610

9004170330

main90041-70330

9004206048

main90042-06048

9004240027

main90042-40027

9004468076

main90044-68076

13 parts on this diagram · 2 diagrams in section
