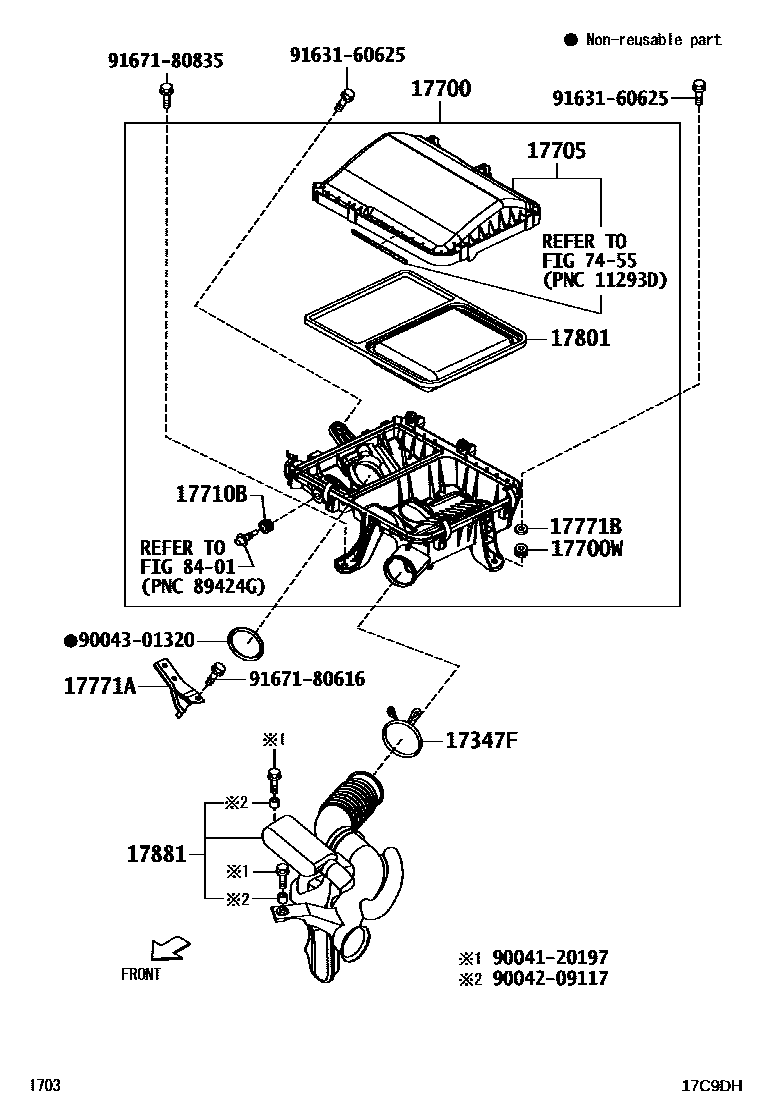

AIR CLEANER

17347FCLAMP OR CLIP(FOR AIR HOSE)

main90044-66020i3SZVE..J200,210200811

17700CLEANER ASSY, AIR

main17700-B1040i3SZVE..J200,210200811

17700WSPACER(FOR AIR CLEANER)

main90042-09117i3SZVE..J200,210200811

17705CAP SUB-ASSY, AIR CLEANER

main17735-B1020i3SZVE..J200,210200811

17710BGROMMET

main90044-80530i3SZVE..J200,210200811

17771ABRACKET, AIR CLEANER

main17771-B1010i3SZVE..J200,210200811

17771BGROMMET(FOR AIR CLEANER BRACKET)

main90044-80392i3SZVE..J200,210200811

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-B1010i3SZVE..J200,210200811

17881HOSE, AIR CLEANER, NO.1

main17881-B1040i3SZVE..J200,210200811

7455CAUTION PLATE

→ Go to FIG 74-55

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004120197

main90041-20197

9004209117

main90042-09117

9004301320

main90043-01320

9163160625

main91631-60625

9167180616

main91671-80616

9167180835

main91671-80835

17 parts on this diagram · 1 diagram in section
