ENGINE OIL PUMP

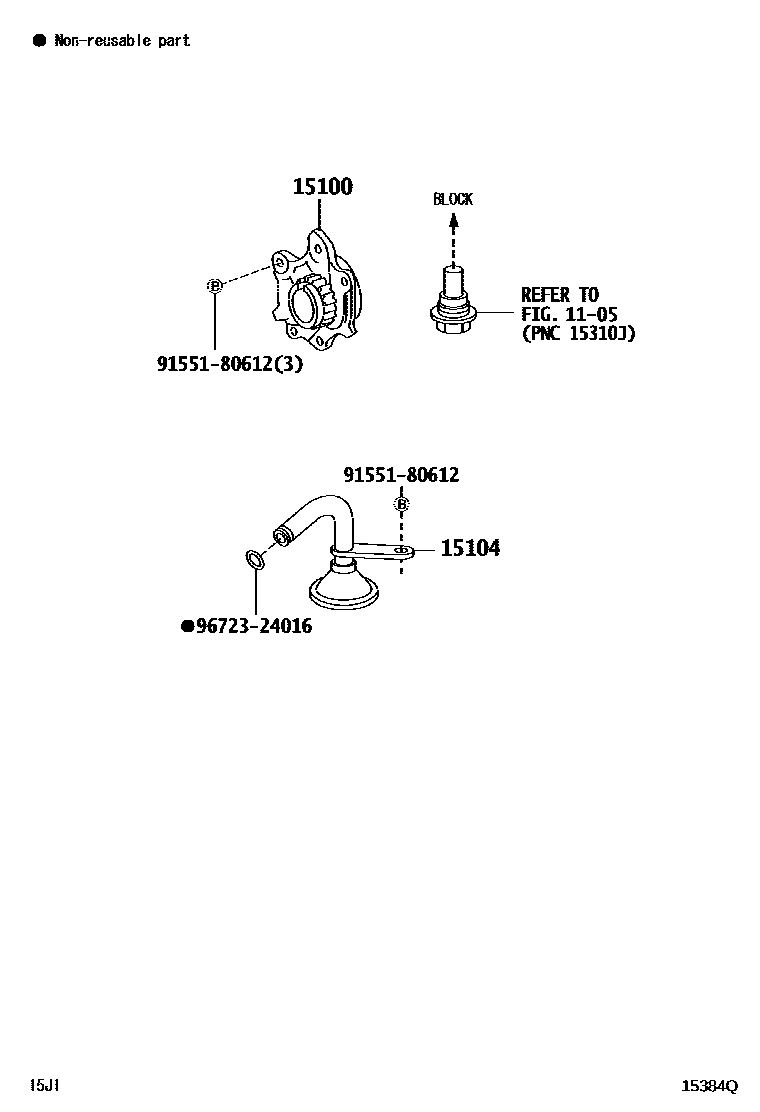

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

15100PUMP ASSY, OIL

main15100-B1010i200811

15104STRAINER SUB-ASSY, OIL

main15140-B1010i200811

9155180612

main91551-80612

9672324016

main96723-24016

5 parts on this diagram · 1 diagram in section
