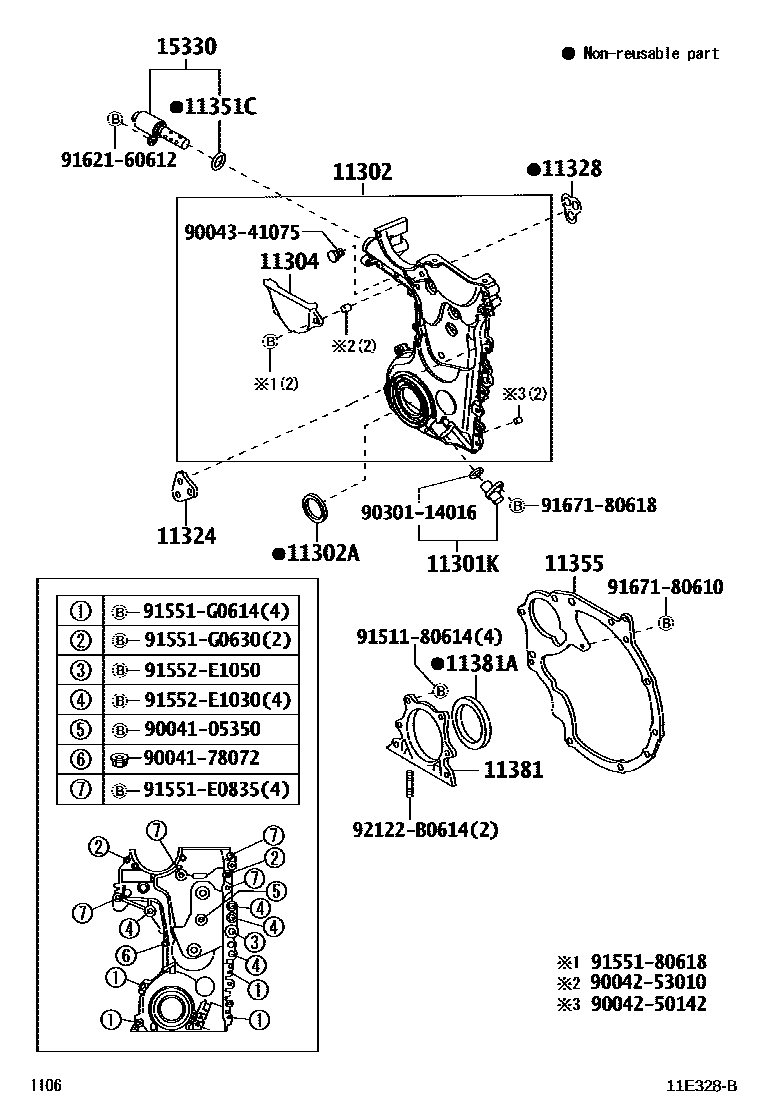

TIMING GEAR COVER & REAR END PLATE

11301KSENSOR, CRANK POSITION

main19311-97401i3SZVE..J200,210200811

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-B1060i3SZVE..J200200811-200911

main11310-B1061i3SZVE..J200,210201605

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90043-11428i3SZVE..J200,210201605

main90311-35040i3SZVE..J200200811-200911

11304COVER, TIMING CHAIN OR BELT, NO.2

main11322-97401i3SZVE..J200200811-200911

main11322-B1010i3SZVE..J200,210201605

11324PLATE, TIMING CHAIN COVER

main57323-B4010i3SZVE..J200200811-200911

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-97401i3SZVE..J200,210200811

11351CRING, O

main90043-01262i3SZVE..J200,210200811-201806

11355PLATE, REAR END

main11355-97403i3SZVE..J200,210200811

11381RETAINER, ENGINE REAR OIL SEAL

main11381-97402i3SZVE..J200,210200811

11381ASEAL, ENGINE REAR OIL

main90043-11402i3SZVE..J200,210200811

15330VALVE ASSY, CAM TIMING OIL CONTROL

main15330-B1020i3SZVE..J200,210200811

9004105350

main90041-05350

9004178072

main90041-78072

9004250142

main90042-50142

9004253010

main90042-53010

9004341075

main90043-41075

9030114016

main90301-14016

9151180614

main91511-80614

9155180618

main91551-80618

91551E0835

main91551-E0835

91551G0614

main91551-G0614

91551G0630

main91551-G0630

91552E1030

main91552-E1030

91552E1050

main91552-E1050

9162160612

main91621-60612

9167180610

main91671-80610

9167180618

main91671-80618

92122B0614

main92122-B0614

28 parts on this diagram · 1 diagram in section
