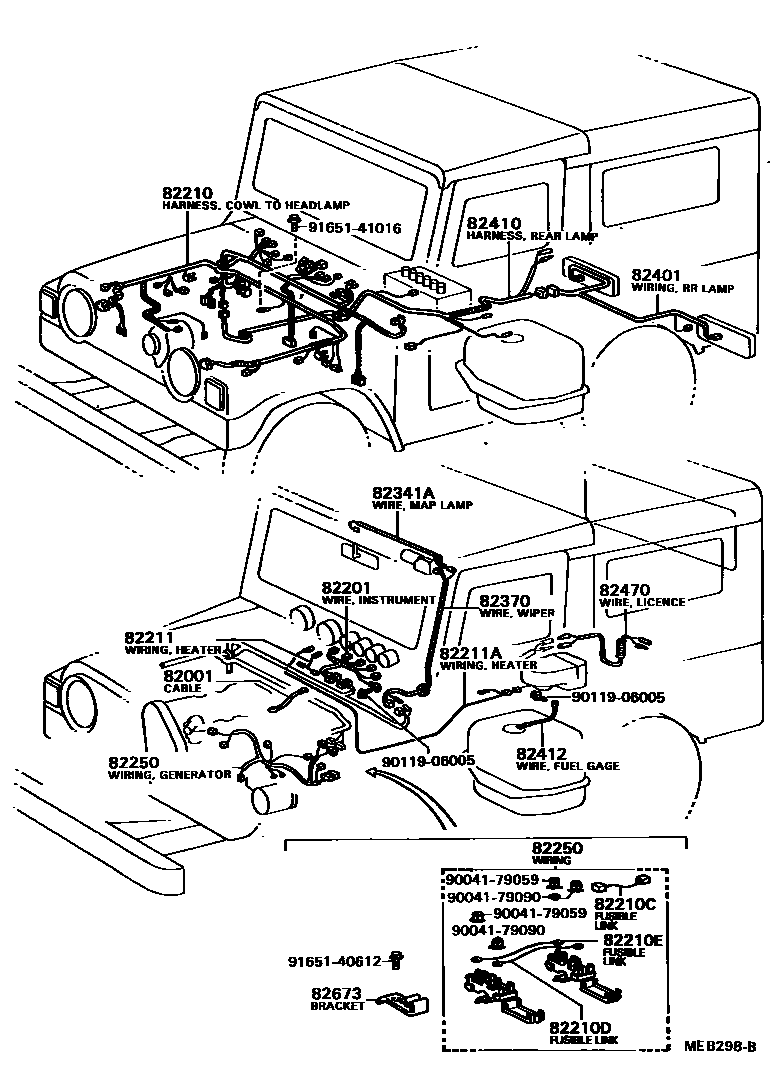

WIRING & CLAMP
82001CABLE, BOND, NO.1
ENGINE--FRAME
82201WIRING SUB-ASSY, INSTRUMENT PANEL
82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210CFUSIBLE LINK
L=110,0.3
82210DFUSIBLE LINK
L=110,1.25
82210EFUSIBLE LINK
L=110,1.0
82211WIRE, HEATER BLOWER FAN SWITCH
82211AWIRE, REAR HEATER
82341AWIRE, MAP LAMP
82370WIRE ASSY, WIPER SWITCH TO WIPER
82401WIRING, REAR COMBINATION LAMP
82410HARNESS ASSY, WIRING TO REAR LAMP
82412WIRE, FUEL GAGE
82470WIRE ASSY, LICENSE LAMP FEED
82673BRACKET, JUNCTION BLOCK
9004179059
main90041-79059
9004179090
main90041-79090
9011906005
main90119-06005
9165140612
main91651-40612
9165141016
main91651-41016
21 parts on this diagram · 3 diagrams in section
