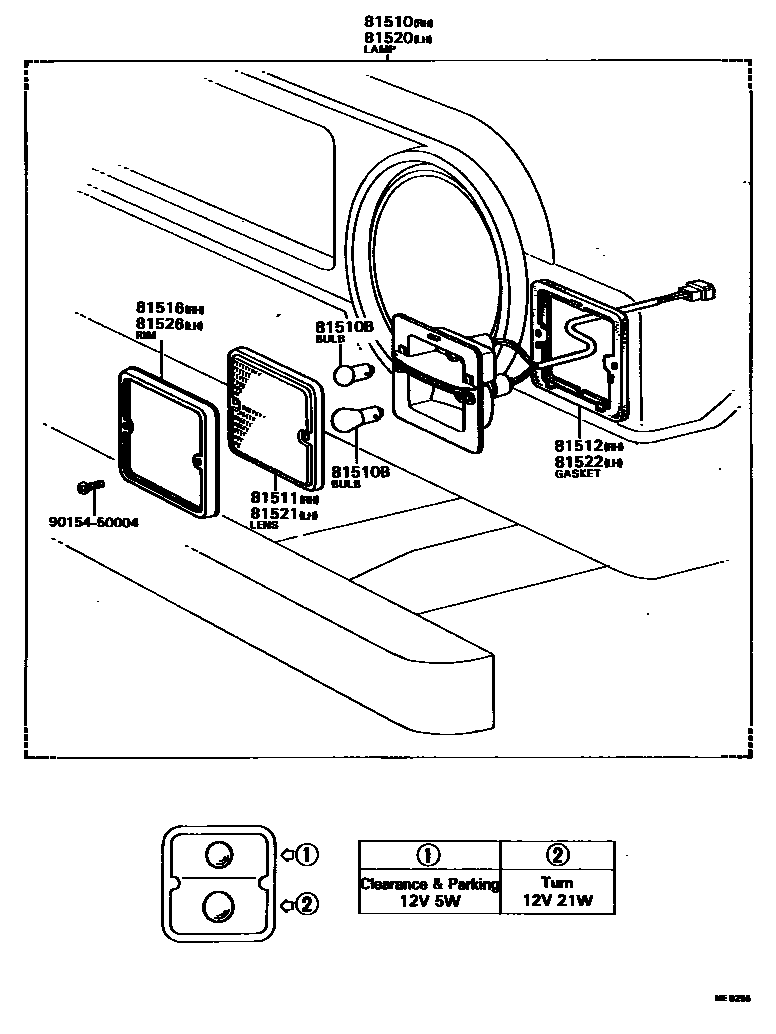

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-87617iLD10198201-198404

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11050×2iLD10198201-198404

12V 5W,12V 5W

main99132-11210×2iLD10198201-198404

12V 21W,12V 21W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-87606iLD10198201-198404

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-87602iLD10198201-198404

81516RIM, FRONT TURN SIGNAL LAMP, RH

main81516-87603iLD10198201-198404

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81510-87617iLD10198201-198404

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81511-87606iLD10198201-198404

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-87602iLD10198201-198404

81526RIM, FRONT TURN SIGNAL LAMP, LH

main81516-87603iLD10198201-198404

9015450004

main90154-50004

10 parts on this diagram · 1 diagram in section
