FUEL TANK & TUBE
77014STRAINER SUB-ASSY, FUEL
77031CAP ASSY, FUEL TANK
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
77141BRACKET, FUEL TANK MOUNTING, FRONT
77142BRACKET, FUEL TANK MOUNTING, REAR
77201PIPE SUB-ASSY, FUEL TANK INLET
77213HOSE, FUEL TANK SUB INLET
77241TUBE, FUEL MAIN, NO.1
77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
L=640
77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77277TUBE, FUEL RETURN, NO.1
77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
L=300(*H,L=220)
L=300(*H,L=220)
77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
L=200
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606CPROTECTOR, FUEL TANK, NO.2
77606DPROTECTOR, FUEL TANK, NO.3
77631BRACKET, FUEL TANK, NO.1
77648PLATE, FUEL TANK SET, REAR
77652CUSHION, FUEL TANK, NO.1
77720VALVE SUB-ASSY, SAFETY
77720ABRACKET, SAFETY VALVE
77720BHOSE, FUEL, NO.1(FOR SAFETY VALVE)
77720CHOSE, FUEL, NO.2(FOR SAFETY VALVE)
L=265
9004159159
main90041-59159
9004465359
main90044-65359
9004467027
main90044-67027
9004467032
main90044-67032
9046106051
main90461-06051
9046106169
main90461-06169
9046713001
main90467-13001
9163160830
main91631-60830
9165140614
main91651-40614
9165160820
main91651-60820
9331214012
main93312-14012
9411040800
main94110-40800
9611110250
main96111-10250
9611110630
main96111-10630

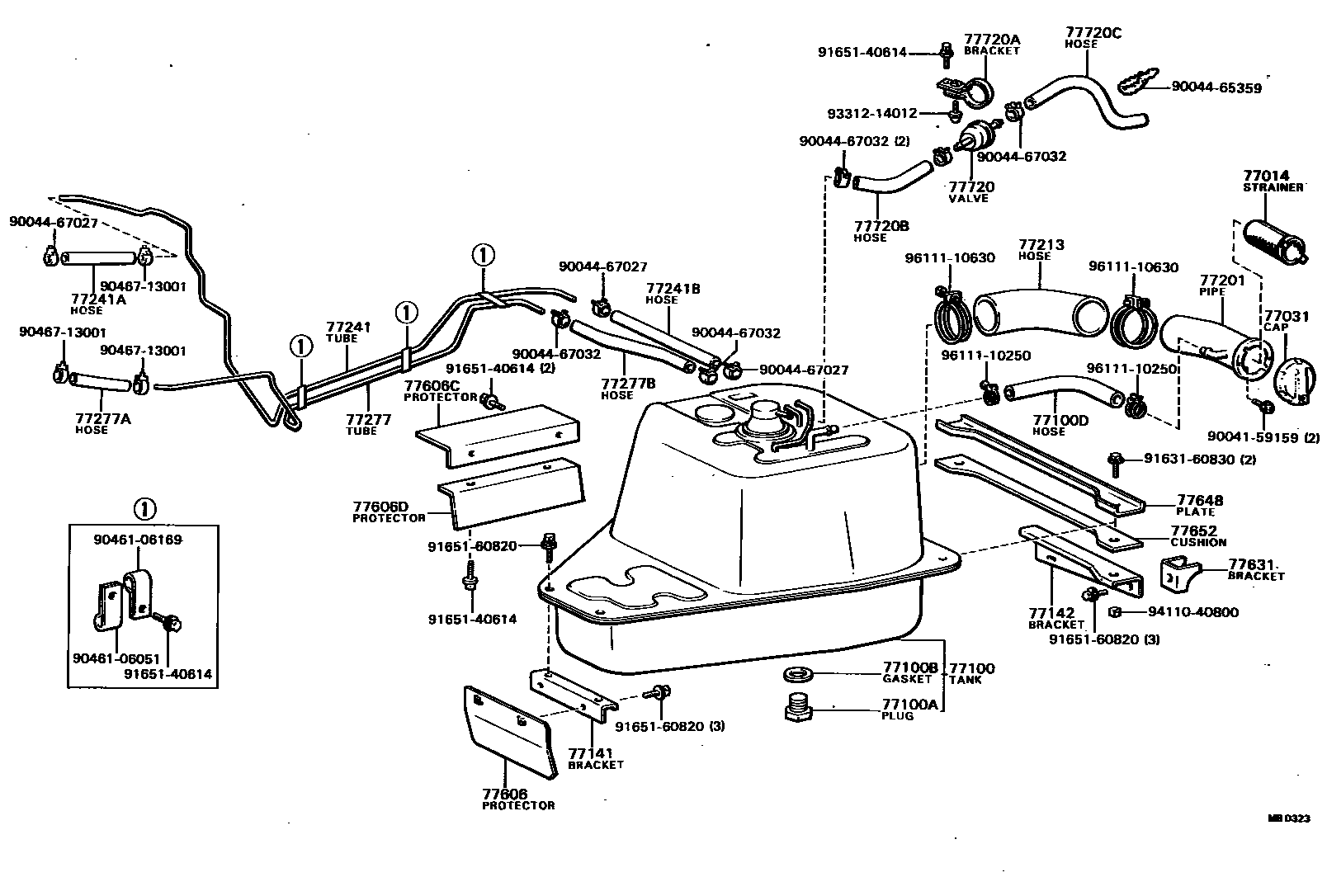

40 parts on this diagram · 1 diagram in section
