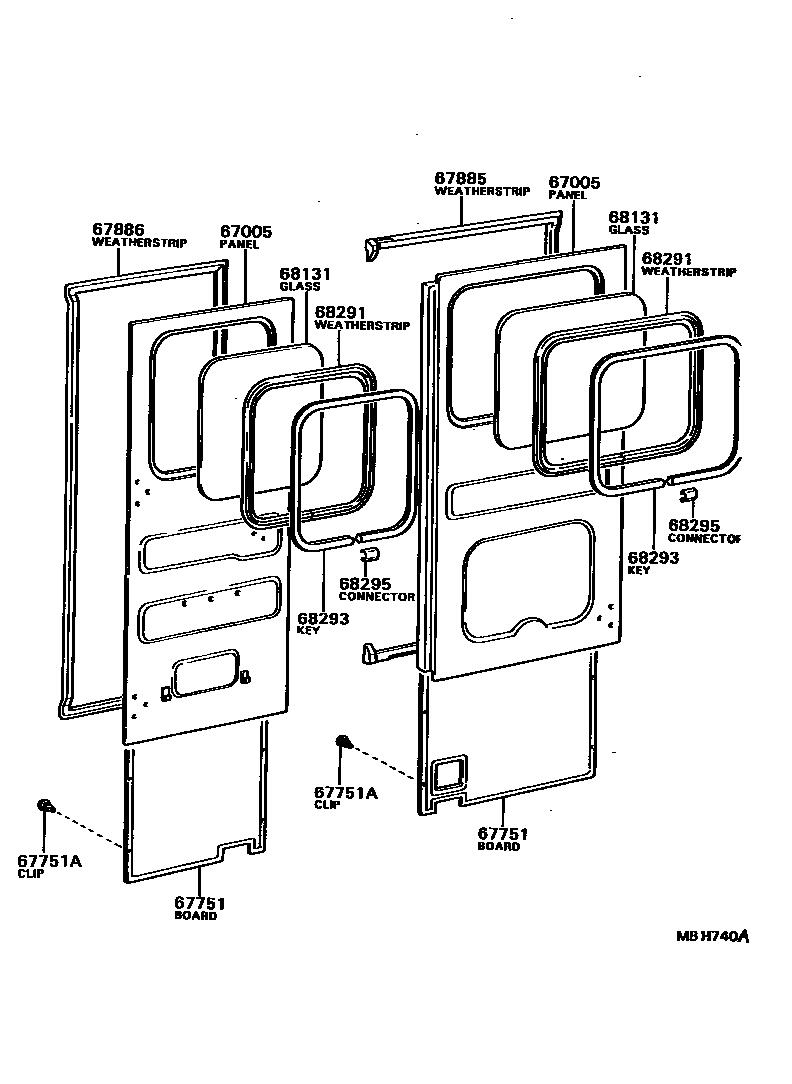

BACK DOOR PANEL & GLASS

67005PANEL SUB-ASSY, BACK DOOR

main64401-87612iLD10198201-198404

RH

main64402-87628iLD10198201-198404

LH

67751BOARD, BACK DOOR TRIM

main67603-87601iLD10198201-198210

RH

main67603-87604iLD10198210-198404

RH

main67604-87601iLD10198201-198210

LH

main67604-87603iLD10198210-198404

LH

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-09069-03×15iLD10198210-198404

GRAY,GRAY

main90467-09069-21×15iLD10198201-198210

BLACK,BLACK

67885WEATHERSTRIP, BACK DOOR, RH

main64621-87602iLD10198201-198404

67886WEATHERSTRIP, BACK DOOR, LH

main64622-87602iLD10198201-198404

68131GLASS, BACK DOOR

main64611-87602iLD10198201-198404

RH,*TEM,T=4.0

main64612-87603iLD10198201-198404

LH,*TEM,T=4.0

68291WEATHERSTRIP, BACK DOOR GLASS

main64613-87602iLD10198201-198404

RH

main64614-87603iLD10198201-198404

LH

68293KEY, BACK WINDOW WEATHERSTRIP

main64615-87602iLD10198201-198404

RH

main64616-87603iLD10198201-198404

LH

68295CONNECTOR, BACK DOOR WEATHERSTRIP WEDGE

main75578-87201×2iLD10198201-198404

9 parts on this diagram · 1 diagram in section
