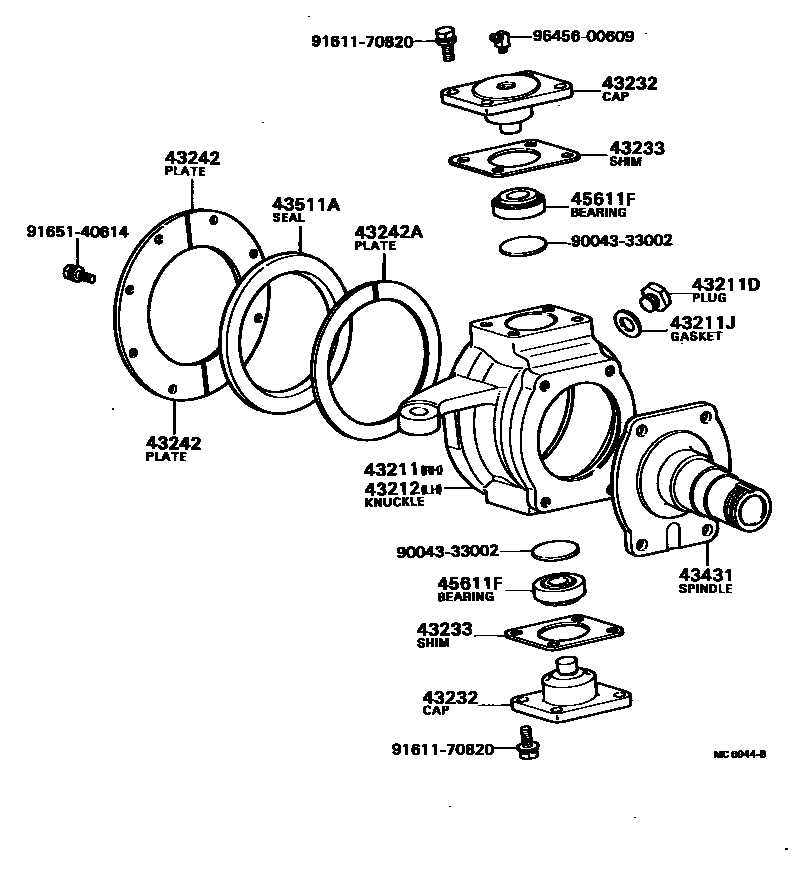

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-87602iLD10198201-198404

43211DPLUG (FOR STEERING KNUCKLE)

main90341-18049×2iLD10198201-198404

43211JGASKET (FOR STEERING KNUCKLE FILLER PLUG)

main12157-10010×2iLD10198201-198404

43212KNUCKLE, STEERING, LH

main43212-87602iLD10198201-198404

43232CAP, STEERING KNUCKLE BEARING

main43232-87602×2iLD10198201-198404

UPR

main43233-87602×2iLD10198201-198404

LWR

43233SHIM, STEERING KNUCKLE ADJUST, NO.1

main90045-65025iLD10198201-198404

T=0.10

main90045-65026iLD10198201-198404

T=0.25

main90045-65028iLD10198201-198404

T=0.15

main90045-65029iLD10198201-198404

T=0.20

main90045-65030iLD10198201-198404

T=0.30

43242PLATE, OIL SEAL COVER, OUTER

main43241-87602×4iLD10198201-198404

43242APLATE, OIL SEAL COVER, INNER

main43242-87602×2iLD10198201-198404

43431SPINDLE, STEERING KNUCKLE

main43401-87601×2iLD10198201-198404

43511ASEAL, DUST (FOR FRONT AXLE HUB)

main90043-18003×2iLD10198201-198404

45611FBEARING(FOR STEERING KNUCKLE ARM)

main97610-30303×4iLD10198201-198404

9004333002

main90043-33002

9161170820

main91611-70820

9165140614

main91651-40614

9645600609

main96456-00609

15 parts on this diagram · 1 diagram in section
