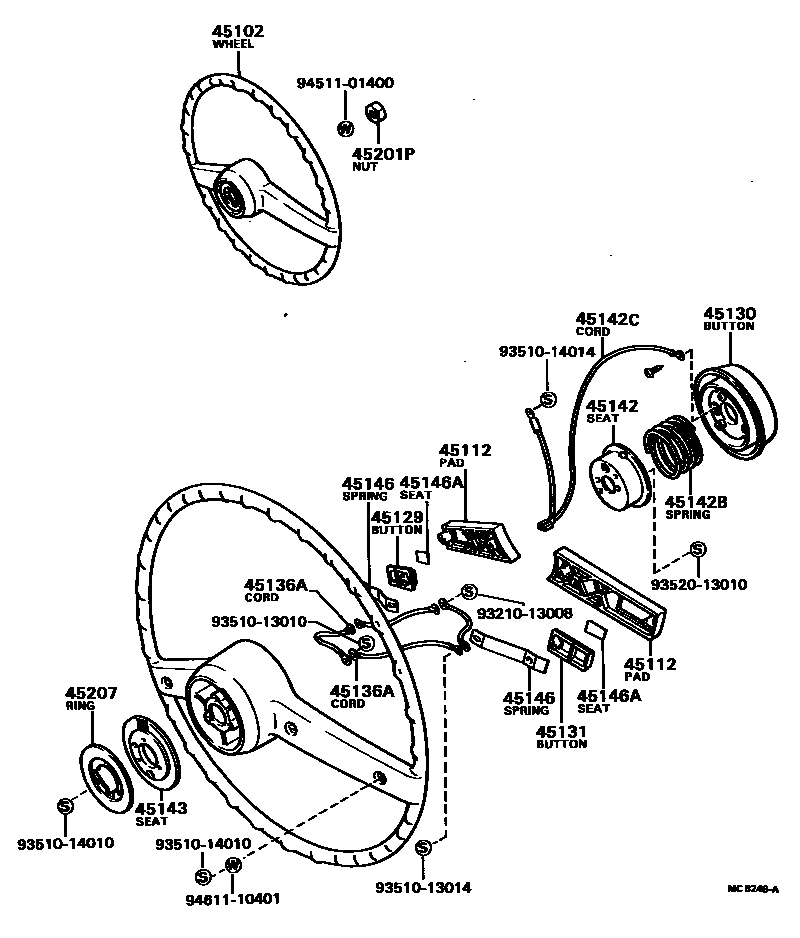

STEERING WHEEL

45102WHEEL SUB-ASSY, STEERING

main45100-87603iLD10198201-198404

45112PAD, STEERING WHEEL

main45112-87301iLD10198201-198404

RH

main45113-87301iLD10198201-198404

LH

45129BUTTON, HORN, NO.2

main45129-87301iLD10198201-198404

45130BUTTON ASSY, HORN

main45130-87603iLD10198201-198404

45131BUTTON, HORN, NO.1

main45129-87301iLD10198201-198404

45136ACORD(FOR HORN CONTACT RING)

main90049-80031×2iLD10198201-198404

RH

main90049-80032×2iLD10198201-198404

LH

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-87302iLD10198201-198404

45142BSPRING, COMPRESSION(FOR HORN BUTTON CONTACT SEAT)

main90045-01122iLD10198201-198404

45142CCORD(FOR HORN CONTACT PLATE)

main90049-80028iLD10198201-198404

45143SEAT, HORN BUTTON CONTACT, NO.2

main45143-87301iLD10198201-198404

45146SPRING, HORN BUTTON CONTACT

main45146-87301×2iLD10198201-198404

45146ASEAT(FOR HORN BUTTON CONTACT SPRING)

main45148-87301iLD10198201-198404

RH

main45149-87301iLD10198201-198404

LH

45201PNUT, STEERING WHEEL SET

main90041-70104iLD10198201-198404

45207RING, HORN CONTACT

main45176-87301iLD10198201-198404

9321013008

main93210-13008

9351013010

main93510-13010

9351013014

main93510-13014

9351014010

main93510-14010

9351014014

main93510-14014

9352013010

main93520-13010

9451101400

main94511-01400

9461110401

main94611-10401

22 parts on this diagram · 1 diagram in section
