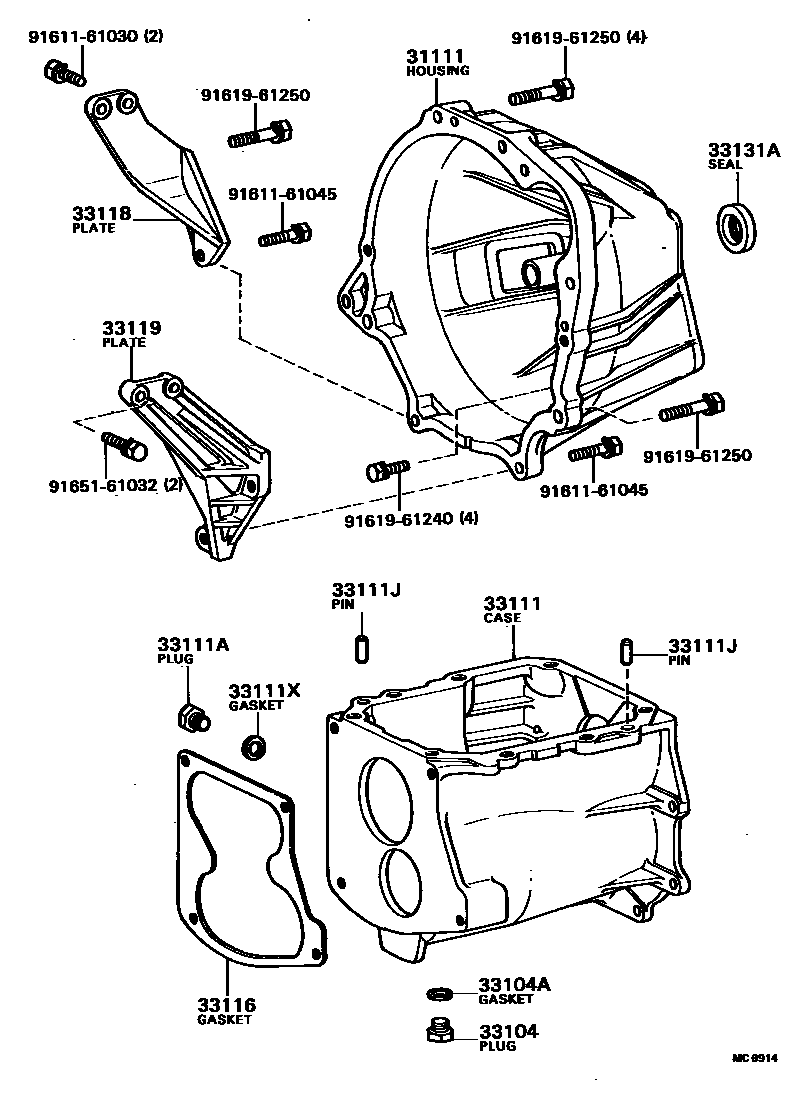

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31111HOUSING, CLUTCH

main31111-87609iLD10198201-198404

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iLD10198201-198404

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iLD10198201-198404

33111CASE, MANUAL TRANSMISSION

main33111-87319iLD10198201-198210

sub33111-87603

main33111-87603iLD10198210-198404

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18049iLD10198201-198404

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90042-50003iLD10198201-198404

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iLD10198201-198404

33116GASKET, MANUAL TRANSMISSION CASE

main33116-87302iLD10198201-198404

33118PLATE, STIFFENER, RH(MTM)

main33118-87601iLD10198201-198404

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLD10198201-198404

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90043-11141iLD10198201-198404

9161161030

main91611-61030

9161161045

main91611-61045

9161961240

main91619-61240

9161961250

main91619-61250

9165161032

main91651-61032

16 parts on this diagram · 1 diagram in section
