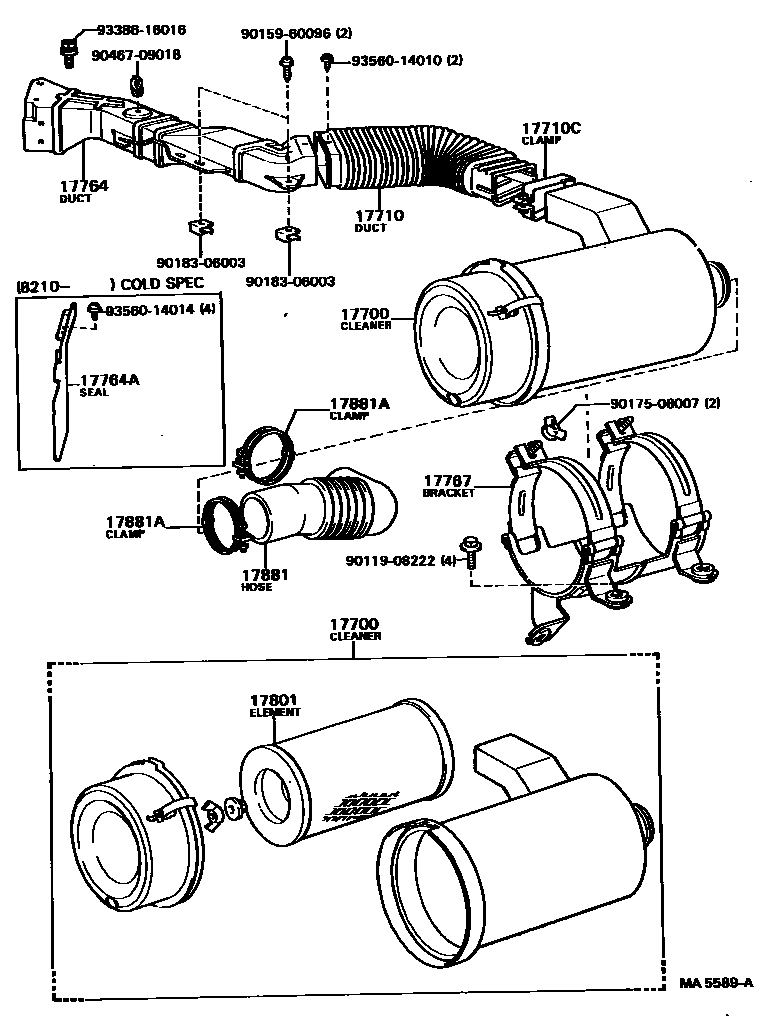

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-87619iL..LD10198201-198404

17710DUCT SUB-ASSY, AIR CLEANER INLET, NO.1

main53298-87601iL..LD10198201-198404

17710CCLAMP(FOR AIR CLEANER INLET DUCT)

main90460-01026iL..LD10198201-198404

17764DUCT, AIR CLEANER

main53299-87602iL..LD10198201-198404

17764ASEAL, AIR CLEANER DUCT

main87174-87601iL..LD10198210-198404

COLD SPEC

17767BRACKET, AIR CLEANER

main17850-87601iL..LD10198201-198404

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-54040iL..LD10198201-198211

main17801-64030iL..LD10198211-198404

17881HOSE, AIR CLEANER, NO.1

main17881-87603iL..LD10198201-198404

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690×2iL..LD10198201-198404

9011908222

main90119-08222

9015960096

main90159-60096

9017506007

main90175-06007

9018306003

main90183-06003

9046709018

main90467-09018

9338616016

main93386-16016

9356014010

main93560-14010

9356014014

main93560-14014

17 parts on this diagram · 1 diagram in section
