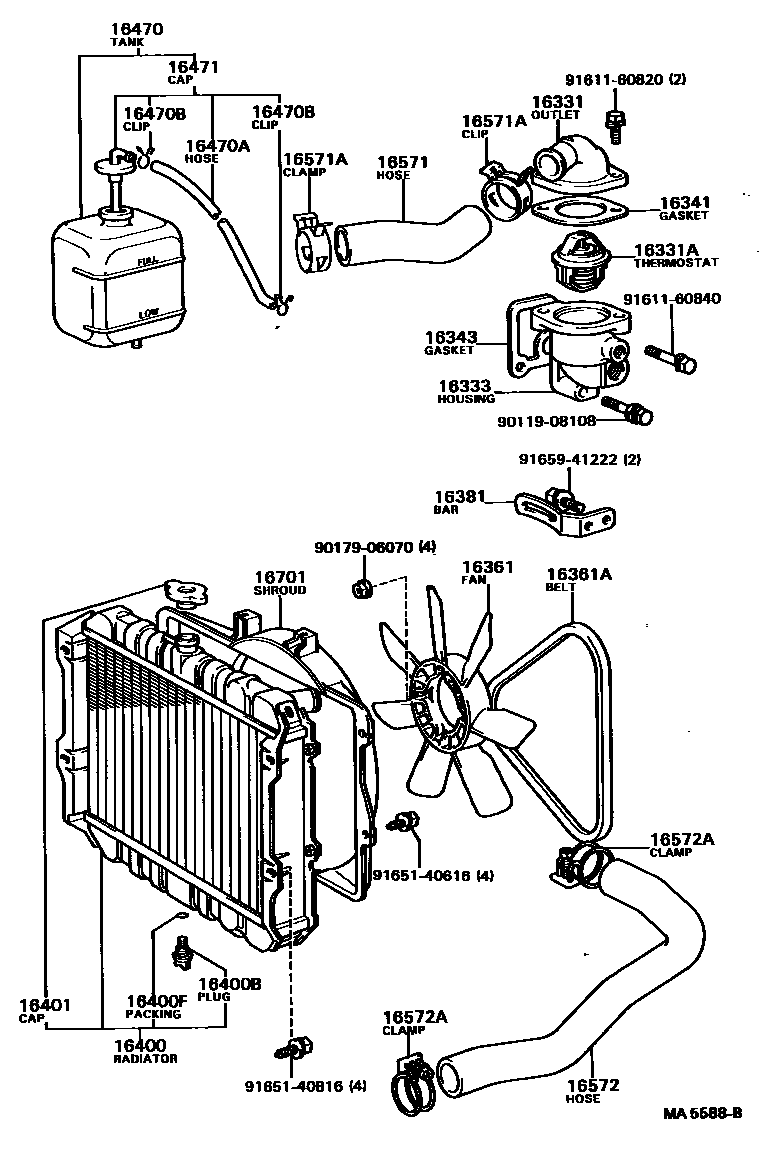

RADIATOR & WATER OUTLET
16331ATHERMOSTAT
*WAX 82-95
*WAX 88-100,*WAX 88-100,COLD SPEC
16333HOUSING, WATER OUTLET
16343GASKET, WATER OUTLET HOUSING
16361FAN
7 BLADES
16361ABELT, V(FOR FAN & ALTERNATOR)
L=990
L=985
L=985
L=1000
16381BAR, FAN BELT ADJUSTING
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600(*H,L=410)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701SHROUD SUB-ASSY, FAN
9011908108
main90119-08108
9017906070
main90179-06070
9161160820
main91611-60820
9161160840
main91611-60840
9165140616
main91651-40616
9165140816
main91651-40816
9165941222
main91659-41222
28 parts on this diagram · 1 diagram in section
