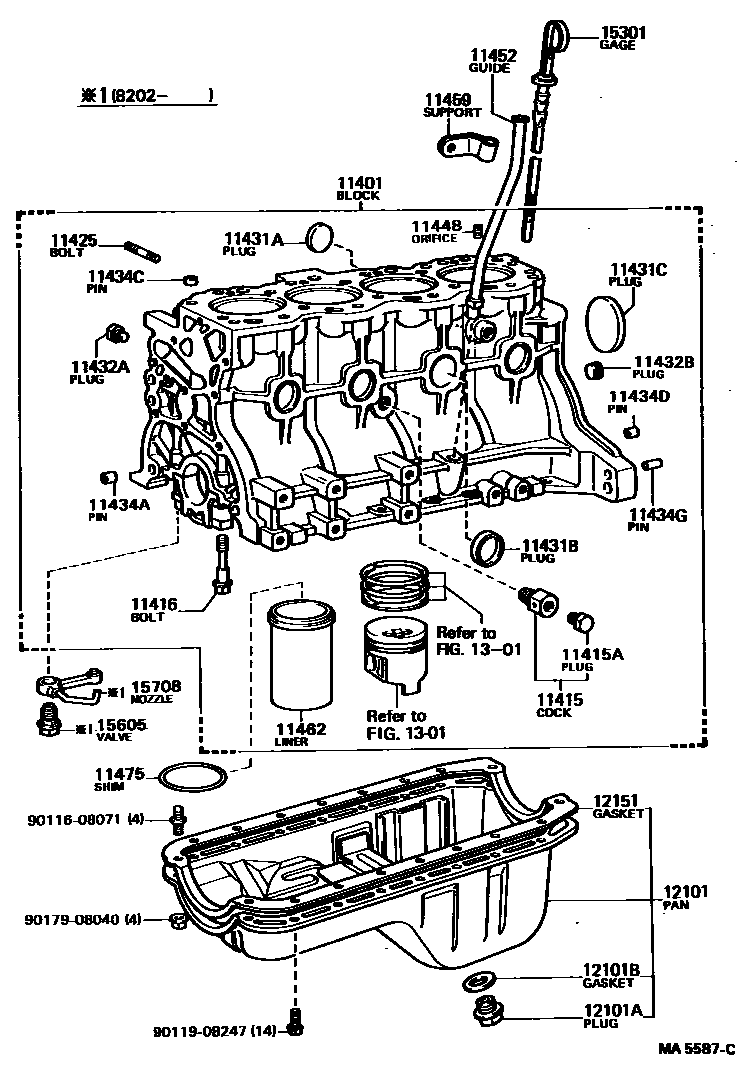

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*12-1.25PX80-24
11425BOLT, STUD(FOR OIL FILTER)
L=36,S=11&14
L=36,S=11&14
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
OD=25
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
OD=35
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
OD=50
11432APLUG, W/HEAD TAPER SCREW, NO.1
11432BPLUG, W/HEAD TAPER SCREW, NO.2
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=11,OD=11,L=11,OD=11
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=7,OD=14.5,L=7,OD=14.5
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=11,OD=11,L=11,OD=11
11434GPIN, STRAIGHT(FOR END PLATE)
L=22,OD=10
11448ORIFICE, CYLINDER BLOCK OIL
11452GUIDE, OIL LEVEL GAGE
11459SUPPORT, OIL LEVEL GAGE GUIDE
11462LINER, CYLINDER
11475SHIM, CYLINDER LINER
T=0.05
T=0.10
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12151GASKET, OIL PAN
1301CRANKSHAFT & PISTON
15301GAGE SUB-ASSY, OIL LEVEL
15605VALVE SUB-ASSY, OIL CHECK
15708NOZZLE SUB-ASSY, OIL, NO.1
9011608071
main90116-08071
9011908247
main90119-08247
9017908040
main90179-08040
30 parts on this diagram · 2 diagrams in section
