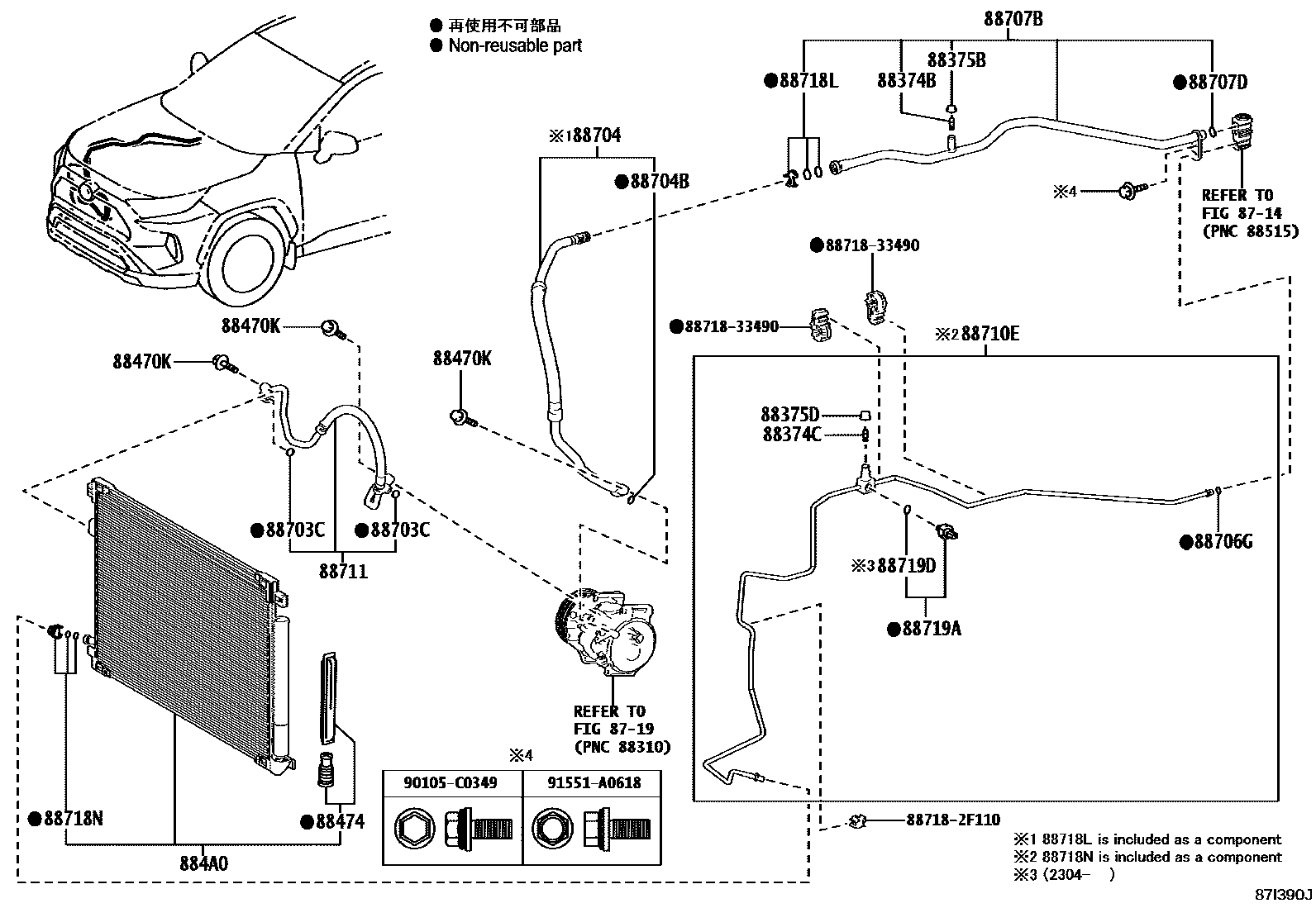

HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
884A0CONDENSER ASSY, COOLER
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88706GRING, O(FOR LIQUID TUBE)
ID=6.7,OD=10.3
88707BTUBE SUB-ASSY, SUCTION, B
88707DRING, O(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88718LCLAMP, PIPING
88718NCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)
ID=10.6,OD=14.16
887182F110PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F110
8871833490PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-33490
90105C0349
main90105-C0349
91551A0618
main91551-A0618
25 parts on this diagram · 4 diagrams in section
