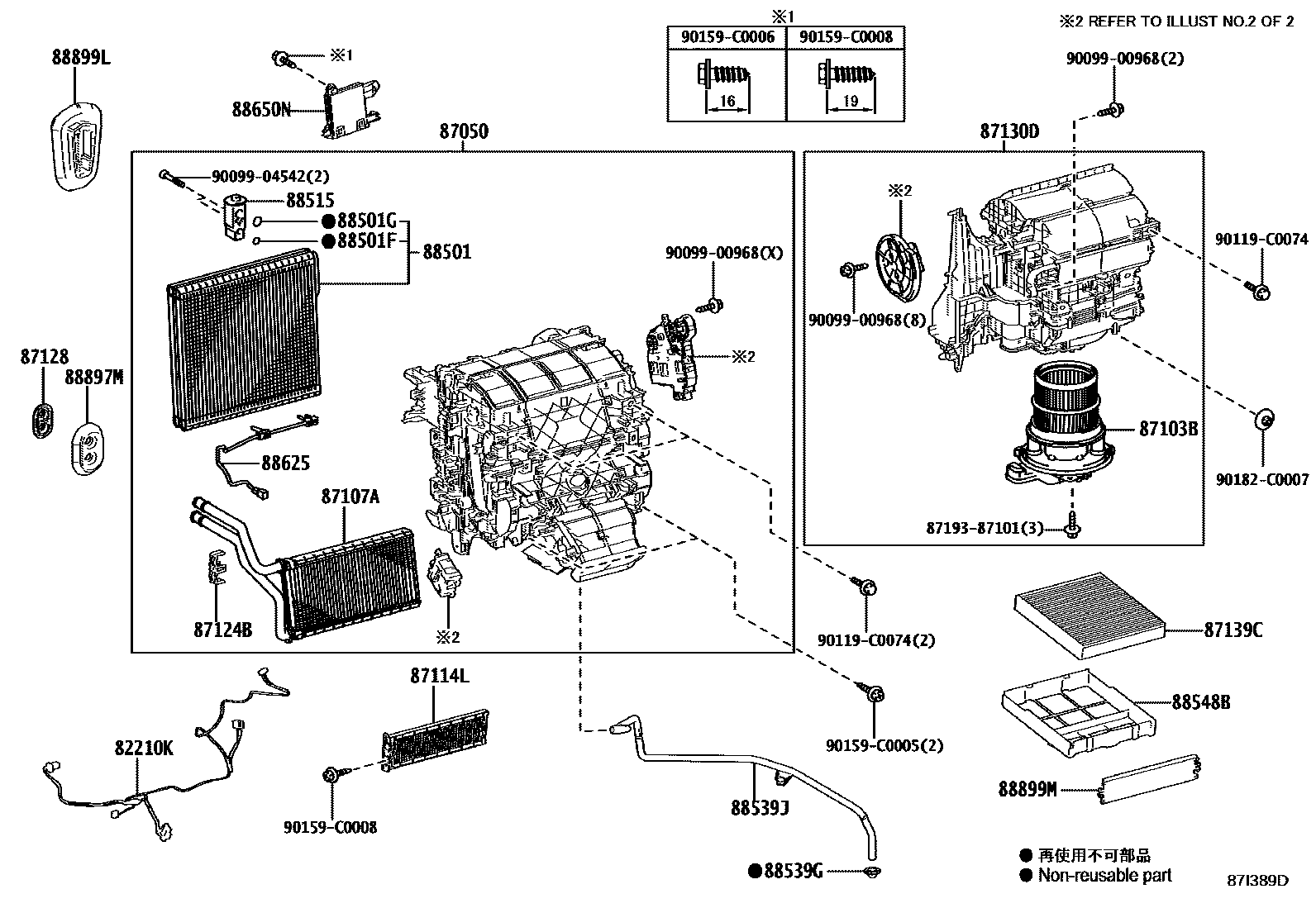

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1DAMPER SERVO 0005 1DAMPER SERVO 0006 1DAMPER SERVO

82210KHARNESS ASSY, AIR CONDITIONER

main82212-07030iAXAH5#,MXAA5#201911-202303

main82212-0E140iAXAL5#,MXAA5#202304-202409

87050RADIATOR ASSY, AIR CONDITIONER

main87050-07220iMXAA5#..G,M201911-202008

main87050-07230iAXAH5#201911-202303

main87050-07260iMXAA5#..G,M202008-202303

main87050-0E410iMXAA5#..G,M202304-202409

main87050-0E420iAXAL5#202409

main87050-0R190iMXAA52..X201911-202104

main87050-0R260iMXAA52..X202104-202303

main87050-0R460iMXAA52..X202304-202409

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0E060iAXAL5#,MXAA5#202409

main87103-F4060iAXAH5#,MXAA5#201911-202303

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-07040iAXAH5#,MXAA5#201911-202303

87114LCOVER, HEATER, NO.2

main87114-07010iAXAL5#,MXAA5#202409

87124BCLAMP, HEATER

main87124-F4060iAXAL5#,MXAA5#202409

87128GROMMET, HEATER

main87128-28010iAXAL5#,MXAA5#202409

87130DBLOWER ASSY

main87130-0E050iAXAL5#,MXAA5#202409

main87130-F4070iAXAH5#,MXAA5#201911-202303

87139CFILTER, CLEAN AIR

main87139-02260iAXAL5#,MXAA5#202304-202306

MICRO DUST FILTER,OE PART

main87139-02290iAXAL5#,MXAA5#202307-202409

MICRO DUST FILTER,OE PART

main87139-58010iAXAH5#,MXAA5#202104-202303

DEODORANT FILTER

main87139-F4050iAXAH5#,MXAA5#201911-202104

MICRO DUST FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-07070iMXAA52..X201911-202104

main88501-07090iAXAL5#202409

main88501-07110iMXAA52..X202104-202303

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iAXAH5#,MXAA5#201911-202303

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iAXAL5#,MXAA5#202409

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-07060iAXAH5#201911-202303

main88515-0R020iMXAA52..X201911-202104

main88515-F4040iAXAL5#,MXAA5#202409

main88515-F4080iMXAA5#..G,M201911-202008

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-06030iAXAH5#,MXAA5#201911-202303

88539JHOSE, DRAIN COOLER

main88539-0R060iAXAL5#,MXAA5#202409

88548BCASE, AIR FILTER

main88899-02260iAXAH5#,MXAA5#202104-202303

main88899-F4350iAXAH5#,MXAA5#201911-202104

88625THERMISTOR, COOLER, NO.1

main88620-07020iAXAL5#,MXAA5#202409

main88620-F4030iMXAA5#..G,M201911-202008

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0R320iAXAH5#,MXAA5#202104-202303

main88650-0R360iAXAL5#,MXAA5#202304-202409

main88650-0R430iAXAH5#,MXAA5#201911-202104

main88650-0R540iAXAL5#,MXAA5#202409

88897MGROMMET (FOR HEATER PIPE)

main87128-07010iAXAL5#,MXAA5#202409

88899LPARTS, COOLING UNIT

main88899-07030iAXAL5#,MXAA5#202409

main88899-07040iMXAA5#..G,M201911-202008

88899MPLATE, COVER(FOR AIR FILTER)

main88899-F4290iAXAH5#,MXAA5#201911-202303

8719387101

main87193-87101

9009900968

main90099-00968

9009904542

main90099-04542

90119C0074

main90119-C0074

90159C0005

main90159-C0005

90159C0006

main90159-C0006

90159C0008

main90159-C0008

90182C0007

main90182-C0007

29 parts on this diagram · 6 diagrams in section
