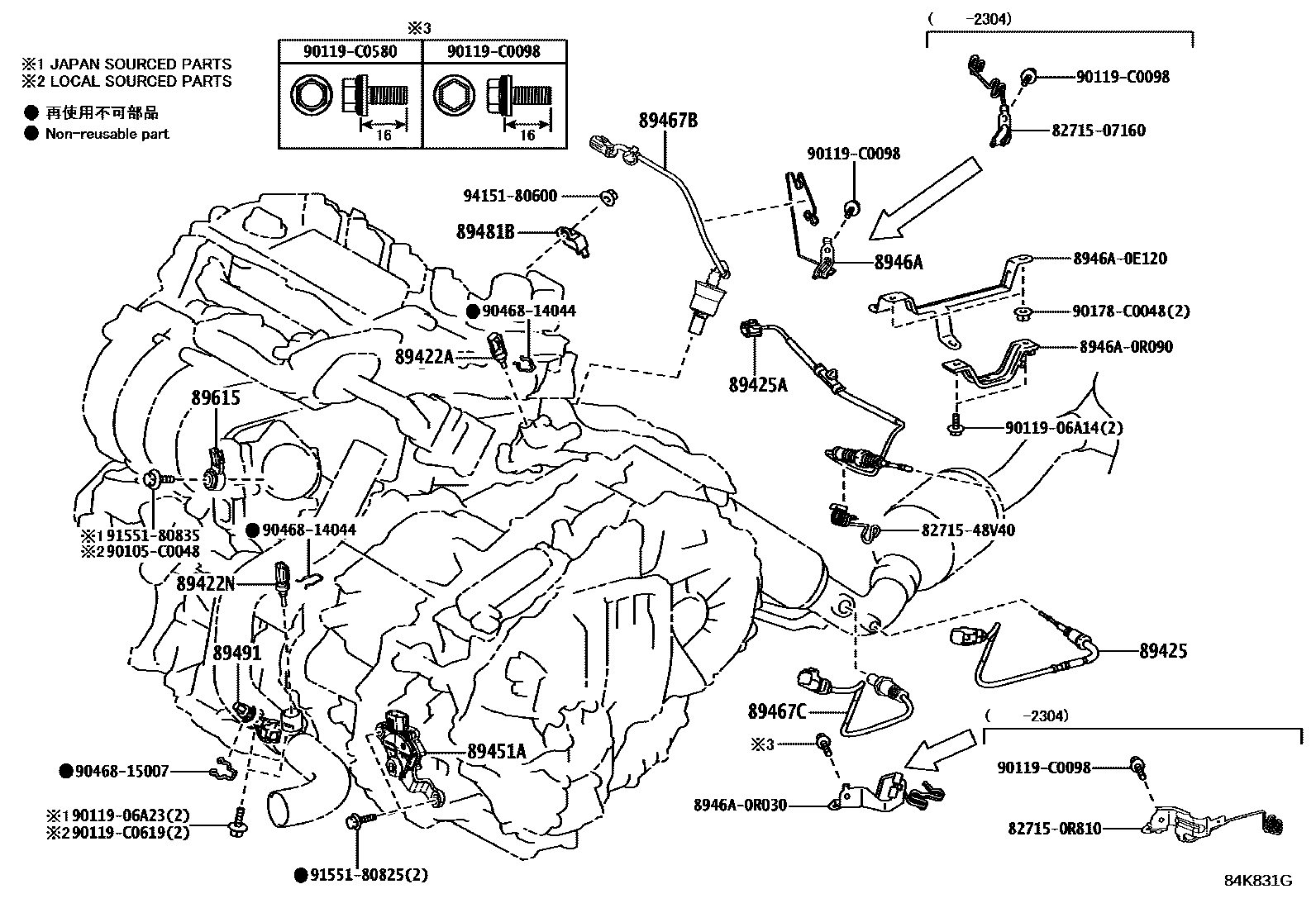

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1ENGINE ROOM RELAY BLOCK 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1COWL 0012 1COWL 0013 1INSTRUMENT PANEL 0014 1CONSOLE BOX 0015 1STEERING 0016 1SEAT 0017 1DOOR & ROOF 0018 1FLOOR & BACK DOOR 0019 1FLOOR & BACK DOOR 0020 1FLOOR & BACK DOOR 0021 1FLOOR RELAY BLOCK

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXAL5#,MXAA5#201911-202409

89422NSENSOR, WATER TEMPERATURE, NO.2

main89422-33040iAXAL5#201911-202409

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-0E030iAXAL5#,MXAA5#202304-202409

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-0E040iAXAL5#202304-202409

main89425-0R010iMXAA5#202304-202409

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iAXAL5#201911-202409

89467BSENSOR, AIR FUEL RATIO

main89467-0R110iAXAH5#201911-202303

main89467-0R160iMXAA5#202304-202409

main89467-0R190iAXAL5#202304-202409

main89467-F4010iMXAA5#201911-202303

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0R120iAXAH5#,MXAA5#201911-202303

main89467-0R170iAXAL5#,MXAA5#202304-202409

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-0E030iAXAL5#202304-202409

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-0E010iMXAA5#202304-202409

(L)

main89481-48010iMXAA5#202304-202409

(J)

main89481-K0010iAXAL5#202304-202409

89491SENSOR, ENGINE OIL LEVEL

main89491-06010iAXAH5#202108-202201

(L)

sub89491-06011

main89491-06010iMXAA5#201911-202205

sub89491-06011

main89491-06011iAXAL5#202206-202303

main89491-06011iAXAL5#202202-202409

(L)

main89491-33051iAXAH5#201911-202110

(J)

sub89491-33052

89615SENSOR, KNOCK CONTROL

main89615-0E010iAXAL5#,MXAA5#202109-202409

main89615-20090iAXAH5#,MXAA5#201911-202109

8271507160BRACKET,WIRING HARNESS CLAMP

main82715-07160

827150R810BRACKET,WIRING HARNESS CLAMP

main82715-0R810

8271548V40BRACKET,WIRING HARNESS CLAMP

main82715-48V40

8946A0E120BRACKET, EXHAUST SENSOR CLAMP

main8946A-0E120

8946A0R030BRACKET, EXHAUST SENSOR CLAMP

main8946A-0R030

8946A0R090BRACKET, EXHAUST SENSOR CLAMP

main8946A-0R090

90105C0048

main90105-C0048

9011906A14

main90119-06A14

9011906A23

main90119-06A23

90119C0098

main90119-C0098

90119C0580

main90119-C0580

90119C0619

main90119-C0619

90178C0048

main90178-C0048

9046814044

main90468-14044

9046815007

main90468-15007

9155180825

main91551-80825

9155180835

main91551-80835

9415180600

main94151-80600

29 parts on this diagram · 20 diagrams in section
