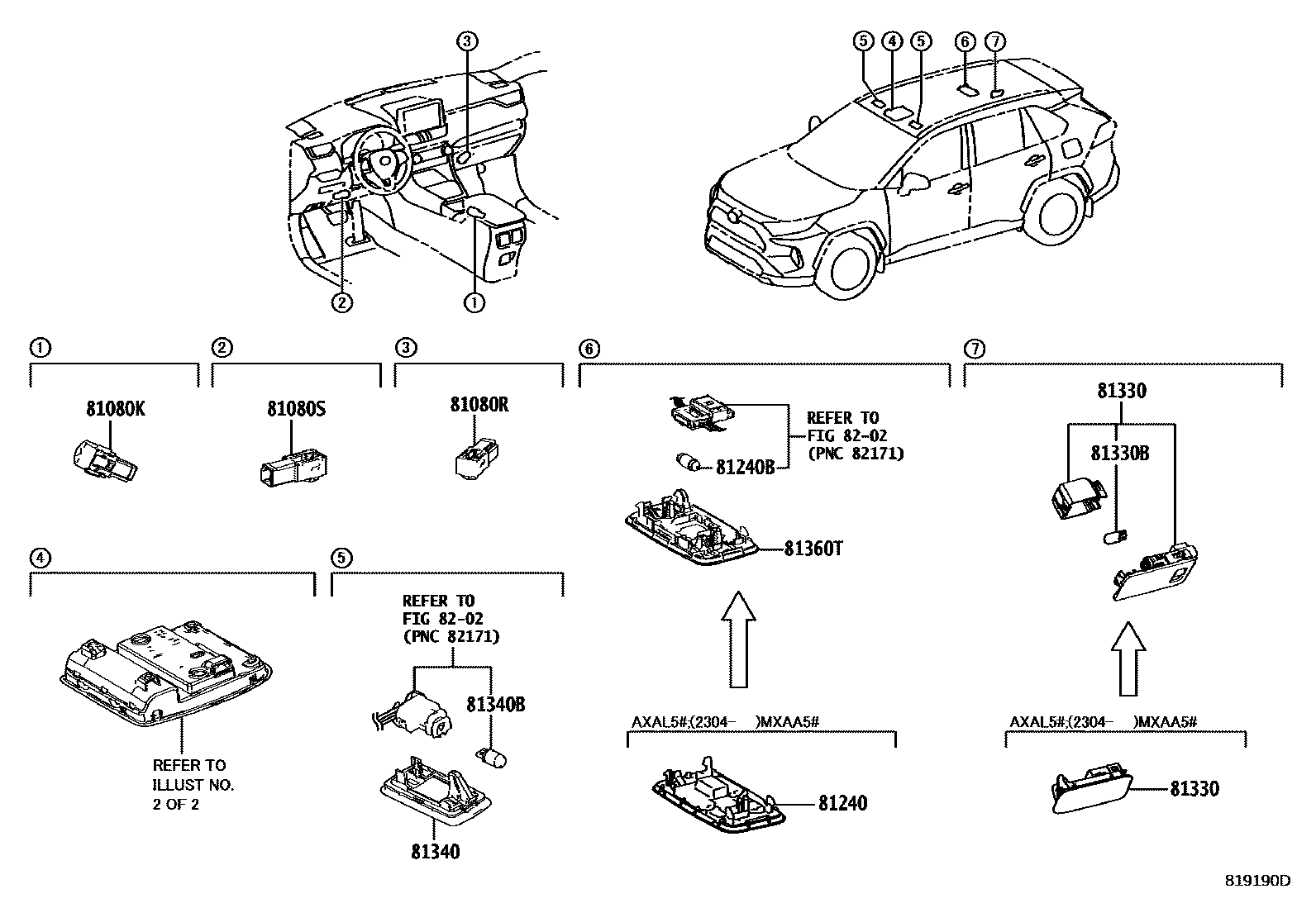

INTERIOR LAMP
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM2#,4#,8#,MARK 19021ROL; LT.GRAY,TRIM2#,4#,MARK 19021ROL
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
8202WIRING & CLAMP
11 parts on this diagram · 2 diagrams in section
