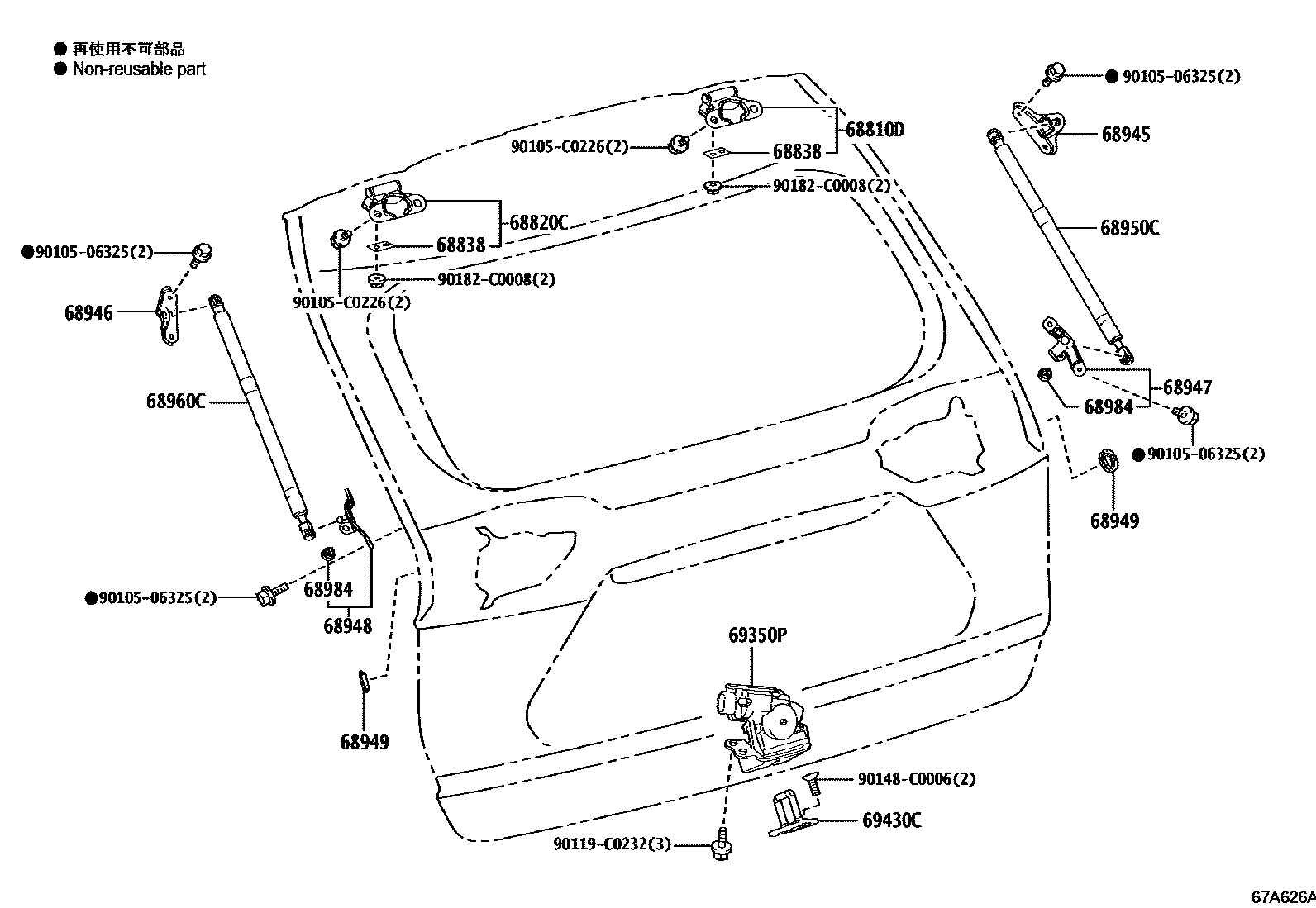

BACK DOOR LOCK & HINGE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

68810DHINGE ASSY, BACK DOOR, RH

main68810-0R100iAXAH5#,MXAA5#201911-202108

PAD T=1.0

main68810-0R110iAXAH5#,MXAA5#201911-202108

PAD T=1.5

main68810-0R120iAXAH5#,MXAA5#201911-202108

PAD T=2.0

main68810-0R121iAXAH5#,MXAA5#202109-202303

68820CHINGE ASSY, BACK DOOR, LH

main68810-0R100iAXAH5#,MXAA5#201911-202108

PAD T=1.0

main68810-0R110iAXAH5#,MXAA5#201911-202108

PAD T=1.5

main68810-0R120iAXAH5#,MXAA5#201911-202108

PAD T=2.0

main68810-0R121iAXAL5#,MXAA5#202409

68838PAD, BACK DOOR HINGE, NO.1

main68838-F4070×2iAXAL5#,MXAA5#202409

T=1.0

main68838-F4080×2iAXAH5#,MXAA5#201911-202109

T=1.5

main68838-F4090×2iAXAL5#,MXAA5#202409

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0R070iAXAL52,MXAA52;AXAL54,MXAA54..M202304-202409

main68945-0R080iAXAH54..G201911-202303

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0R070iAXAL52,MXAA52;AXAL54,MXAA54..M202409

main68946-0R080iAXAL54,MXAA54..G; MXAA52..M202409

FTRD PARTS 2

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0R060iAXAL5#,MXAA5#202409

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0R060iAXAL5#,MXAA5#202304-202409

68949SEAL, BACK DOOR STAY BRACKET

main68949-0R020×2iAXAL52,MXAA52;AXAL54,MXAA54..M202409

68950CSTAY ASSY, BACK DOOR, RH

main68950-0R080iAXAL52,MXAA52;AXAL54,MXAA54..M202304-202407

main68950-0R081iAXAL52,MXAA52;AXAL54,MXAA54..M202409

68960CSTAY SET, BACK DOOR, LH

main68960-0R080iAXAH54..M;AXAH52,MXAA5#201911-202303

main68960-0R081iAXAL52,MXAA52;AXAL54,MXAA54..M202409

68984STOPPER, BACK DOOR STAY

main68984-0R050×2iAXAH5#,MXAA5#201911-202303

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0R060iAXAH54..G201911-202108

main69350-0R070iAXAL52,MXAA52;AXAL54,MXAA54..M202409

main69350-0R120iAXAH54..G202109-202212

main69350-0R121iAXAL54,MXAA54..G; MXAA52..M202409

FTRD PARTS 2

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0R020iAXAH5#,MXAA5#201911-202303

9010506325

main90105-06325

90105C0226

main90105-C0226

90119C0232

main90119-C0232

90148C0006

main90148-C0006

90182C0008

main90182-C0008

18 parts on this diagram · 2 diagrams in section
