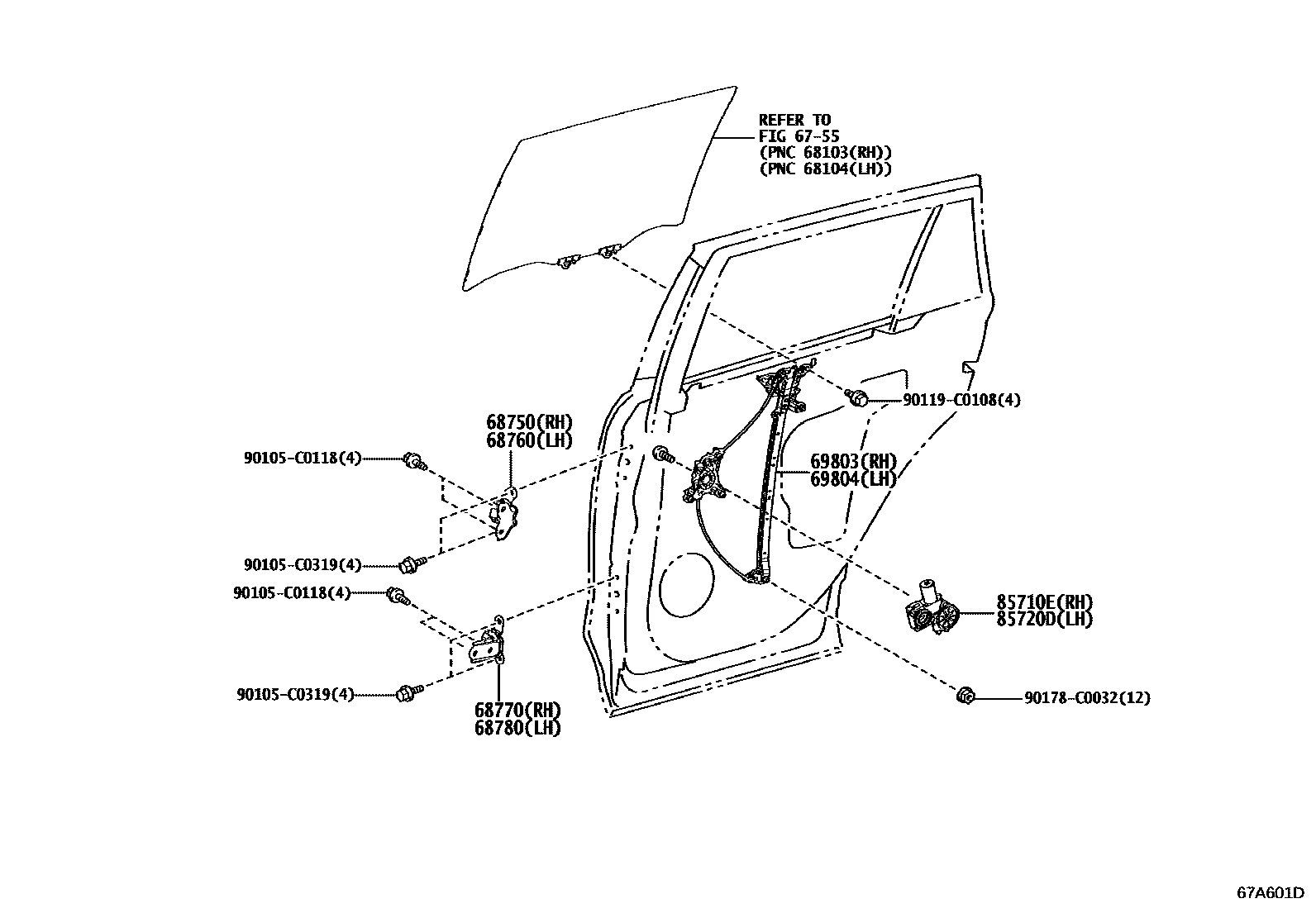

REAR DOOR WINDOW REGULATOR & HINGE

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0P011iAXAL5#,MXAA5#202409

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0P011iAXAL5#,MXAA5#202409

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-07020iAXAL5#,MXAA5#202409

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-07020iAXAL5#,MXAA5#202409

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0R060iAXAL5#,MXAA5#202409

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0R060iAXAL5#,MXAA5#202409

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0R040iAXAL5#,MXAA5#202409

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0R100iAXAL5#,MXAA5#202409

90105C0118

main90105-C0118

90105C0319

main90105-C0319

90119C0108

main90119-C0108

90178C0032

main90178-C0032

13 parts on this diagram · 1 diagram in section
