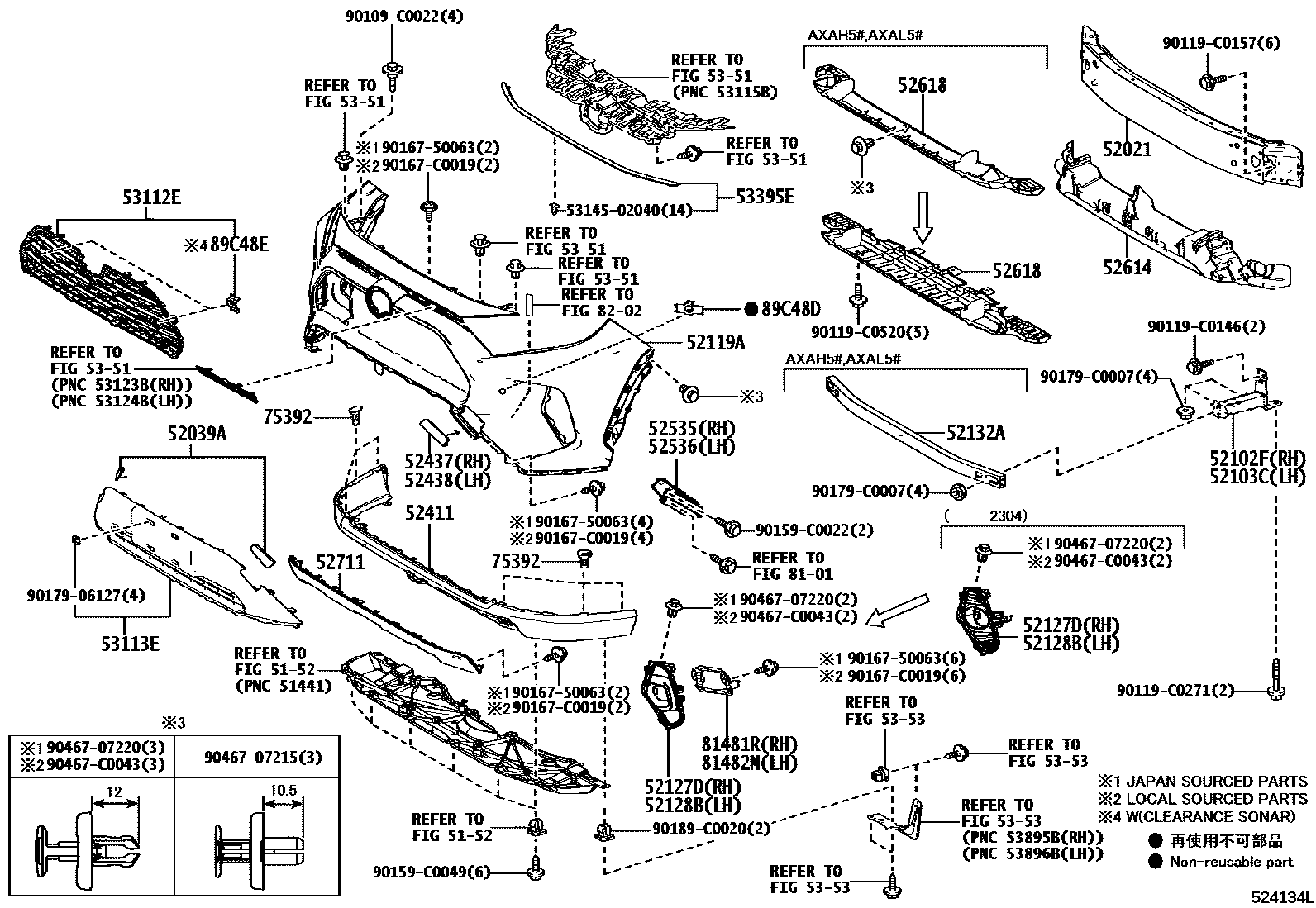

FRONT BUMPER & BUMPER STAY
5152
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52039ACOVER SET, FRONT BUMPER HOLE
FTRD PARTS
LEATHER PACKAGE&FTRD PARTS
52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH
52103CEXTENSION SUB-ASSY, FRONT BUMPER, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.,FTRD PARTS
PAINT REQ.,FTRD PARTS
PAINT REQ.,FTRD INTERIOR PKG HI&FTRD PARTS 2
PAINT REQ.,FTRD PARTS
PAINT REQ.,FTRD PARTS
PAINT REQ.,FTRD PARTS
52127DCOVER, FRONT BUMPER HOLE, RH
NO PAINT REQ.
NO PAINT REQ.,FTRD PARTS
52128BCOVER, FRONT BUMPER HOLE, LH
FTRD PARTS
LEATHER PACKAGE&FTRD PARTS
52132AREINFORCEMENT, FRONT BUMPER, NO.2
52411GUARD, FRONT BUMPER
TOYOTA SAFETY SENSE-WITHOUT&FTRD PARTS
FTRD INTERIOR PKG HI&FTRD PARTS 2
LEATHER PACKAGE&TOYOTA SAFETY SENSE-WITHOUT&FTRD PARTS
LEATHER PACKAGE&FTRD PARTS
52437COVER, FRONT BUMPER GUARD, RH
FTRD PARTS
LEATHER PACKAGE&FTRD PARTS
52438COVER, FRONT BUMPER GUARD, LH
LEATHER PACKAGE&FTRD PARTS
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52614ABSORBER, FRONT BUMPER ENERGY, NO.2
FTRD PARTS
FTRD PARTS
52618ABSORBER, FRONT BUMPER, LOWER
52711MOULDING, FRONT BUMPER
NO PAINT REQ.
PAINT REQ.,FTRD INTERIOR PKG HI&FTRD PARTS 2
NO PAINT REQ.,FTRD PARTS
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,LEATHER PACKAGE&TOYOTA SAFETY SENSE-WITHOUT&FTRD PARTS
PAINT REQ.,FTRD INTERIOR PKG HI&FTRD PARTS 2
NO PAINT REQ.,FTRD INTERIOR PKG HI
NO PAINT REQ.,FTRD PARTS
53113EGRILLE, RADIATOR, LOWER NO.2
FTRD PARTS
LEATHER PACKAGE&FTRD PARTS
53395ESEAL, HOOD TO FRONT END PANEL
5351
5353
75392RETAINER, OUTSIDE MOULDING
LEATHER PACKAGE&FTRD PARTS
8101
81481RBRACKET, FOG LAMP, RH
FTRD PARTS
81482MBRACKET, FOG LAMP, LH
FTRD PARTS
8202
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
LEATHER PACKAGE
89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER
FTRD INTERIOR PKG HI&FTRD PARTS 2,RH
LEATHER PACKAGE,LH
5314502040BRACKET,RADIATOR GRILLE MOUNTING, RH
main53145-02040
90109C0022
main90109-C0022
90119C0146
main90119-C0146
90119C0157
main90119-C0157
90119C0271
main90119-C0271
90119C0520
main90119-C0520
90159C0022
main90159-C0022
90159C0049
main90159-C0049
9016750063
main90167-50063
90167C0019
main90167-C0019
9017906127
main90179-06127
90179C0007
main90179-C0007
90189C0020
main90189-C0020
9046707215
main90467-07215
9046707220
main90467-07220
90467C0043
main90467-C0043
45 parts on this diagram · 2 diagrams in section
