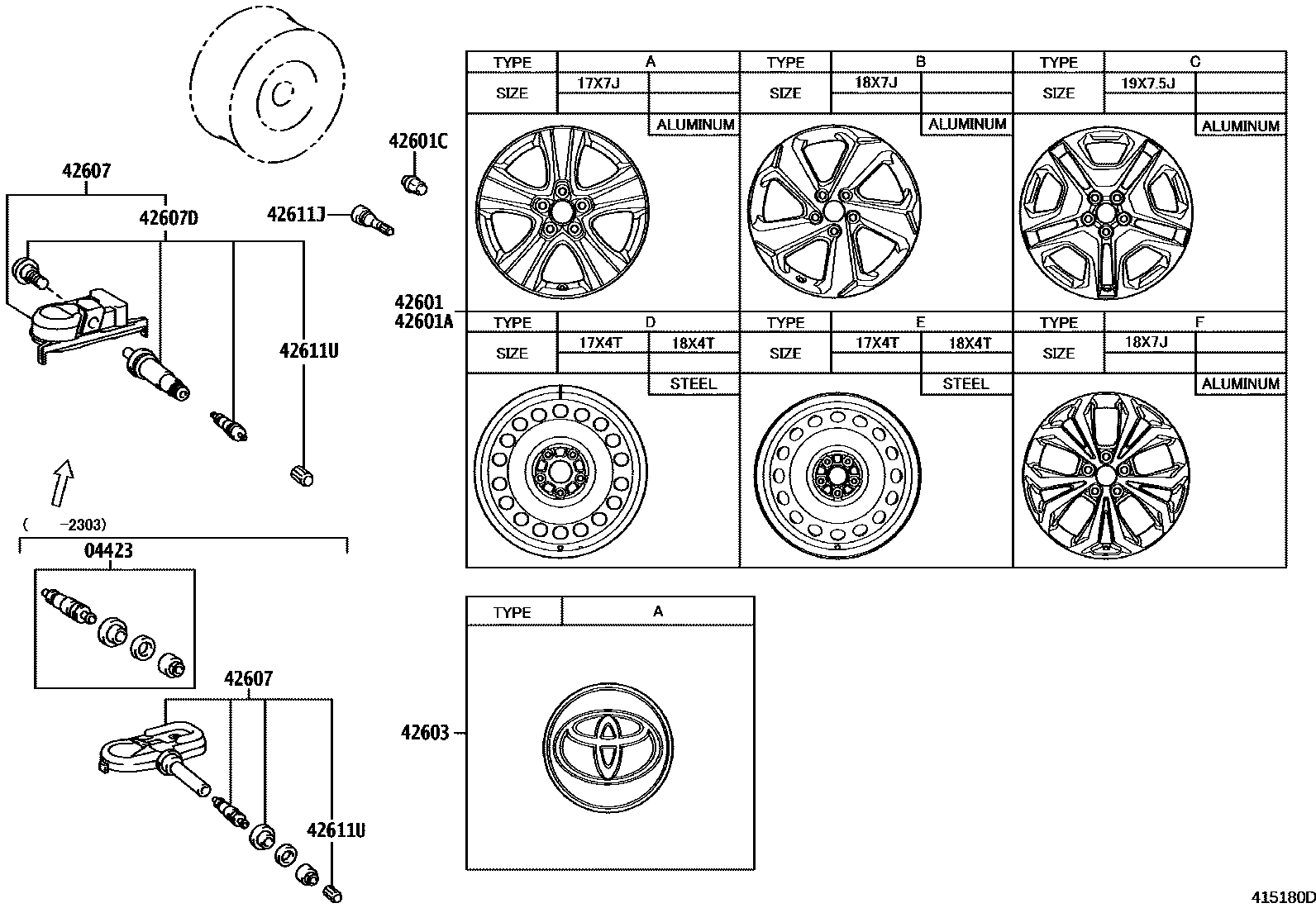

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0N010×4iAXAH5#,MXAA5#201911-202303

42601WHEEL, DISC

main42611-0R310×4iMXAA52..X202409

17X7J,TYPE A:REFER ILLUST.

main42611-0R330×4iMXAA54..G201911-202303

19X7.5J,TYPE C:REFER ILLUST.

main42611-0R350×4iAXAH54201911-202303

18X7J,TYPE B:REFER ILLUST.

main42611-0R640×4iMXAA5#..G202304-202409

19X7.5J,#,TYPE C:REFER ILLUST.

main42611-0R650×4iAXAL54202409

18X7J,#,TYPE F:REFER ILLUST.

main4261A-0R070×4iMXAA54..M201911-202303

18X7J, #,TYPE B:REFER ILLUST.

main4261A-0R170×4iAXAL52;MXAA5#..M202304-202409

18X7J,#,TYPE F:REFER ILLUST.

main42611-YK080×4iMXAA54..M202204-202303

18X7J,#,FTRD PARTS,TYPE B:REFER ILLUST.

main42611-YK090×4iMXAA54..G202204-202303

19X7.5J, #,FTRD PARTS,TYPE C:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main4261B-0R020iAXAL5#;MXAA5#..M,X202304-202409

17X4T,TYPE D:REFER ILLUST.

main4261B-0R040iAXAL5#;MXAA5#..M,X202304-202409

17X4T,TYPE E:REFER ILLUST.

main4261B-0R050iMXAA5#..G202409

18X4T,TYPE E:REFER ILLUST.

main4261B-0R060iMXAA5#..G201911-202303

18X4T,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001×20iAXAL5#,MXAA5#202409

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-02320×4iAXAL5#,MXAA5#202304-202409

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-06070×4iAXAH5#,MXAA5#201911-202303

main42607-0R030×4iAXAL5#,MXAA5#202409

42607DVALVE, TIRE PRESSURE MONITOR

main90942-C5002×4iAXAL5#,MXAA5#202409

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAXAH5#,MXAA5#201911-202011

main90942-C5004iAXAL5#,MXAA5#202304-202409

(L)

42611UCAP, TIRE VALVE

main90942-C5001×4iAXAH5#,MXAA5#201911-202303

9 parts on this diagram · 2 diagrams in section
