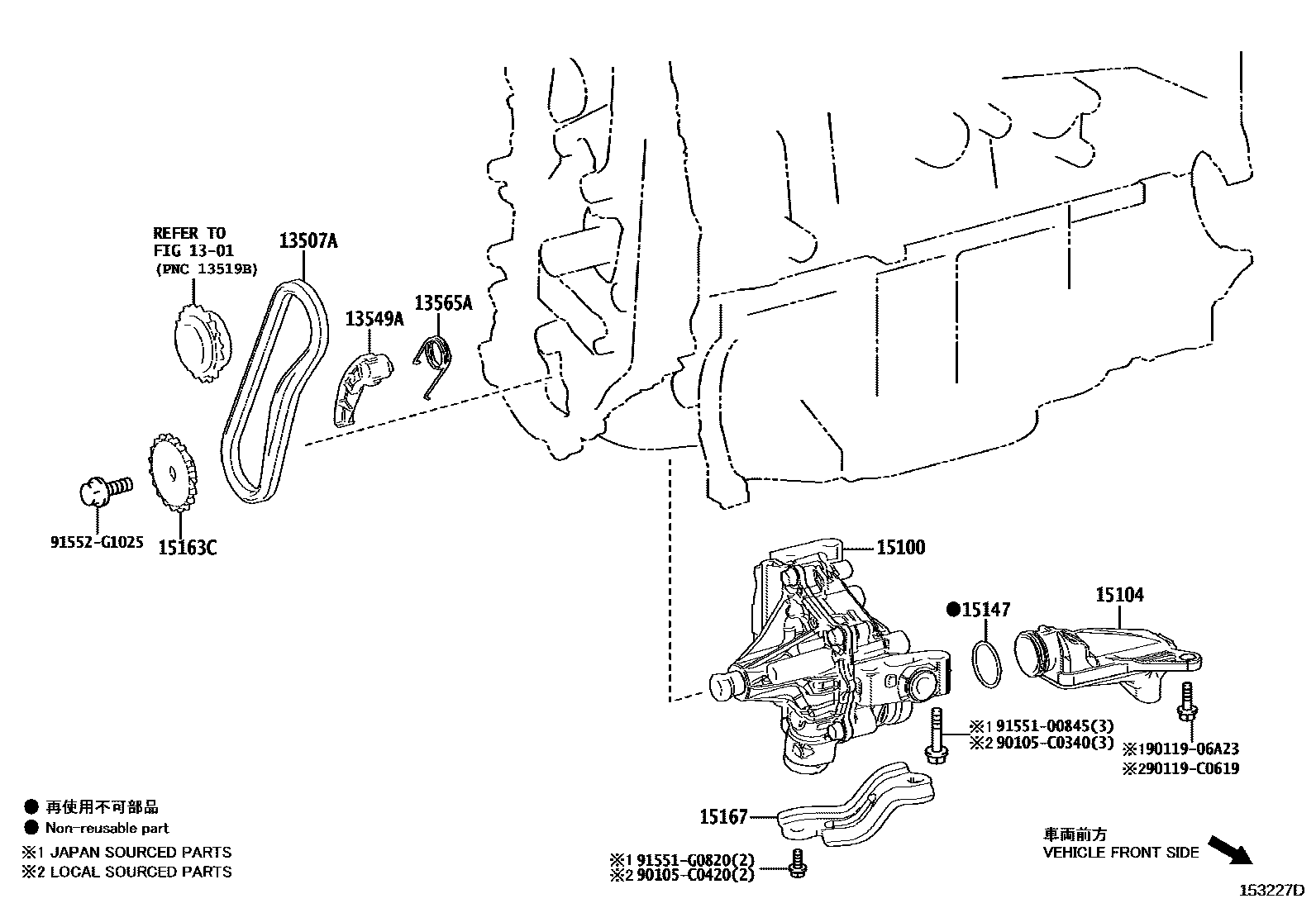

ENGINE OIL PUMP

0001 1 0002 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-F0020iA25..AXAL5#202409

main13507-F2020iM20..MXAA5#201911-202303

main13507-25010supersedes 13507-F0020iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13549APLATE, CHAIN TENSIONER

main13549-F2020iA25..AXAL5#; M20..MXAA5#202304-202409

main13549-25020supersedes 13549-F2020iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13565ASPRING, CHAIN DAMPER

main13565-F2020iA25..AXAL5#; M20..MXAA5#202409

main13565-25010supersedes 13565-F2020iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

15100PUMP ASSY, OIL

main15100-F0020iA25..AXAL5#202304-202409

main15100-F2030iM20..MXAA5#201911-202303

main15100-25032supersedes 15100-F0020iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

15104STRAINER SUB-ASSY, OIL

main15104-F0020iA25..AXAL5#202409

main15104-F2050iM20..MXAA5#201911-202303

main15104-25030supersedes 15104-F0020iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

15147GASKET, OIL STRAINER

main15147-F2010iA25..AXAL5#; M20..MXAA5#202304-202409

main15147-25010supersedes 15147-F2010iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-F2020iA25..AXAL5#; M20..MXAA5#202409

main15163-25010supersedes 15163-F2020iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

15167BRACKET, OIL PUMP

main15167-F0020iA25..AXAL5#202409

main15167-25011supersedes 15167-F0020iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

90105C0340

main90105-C0340

90105C0420

main90105-C0420

9011906A23

main90119-06A23

90119C0619

main90119-C0619

9155100845

main91551-00845

91551G0820

main91551-G0820

91552G1025

main91552-G1025

16 parts on this diagram · 2 diagrams in section
