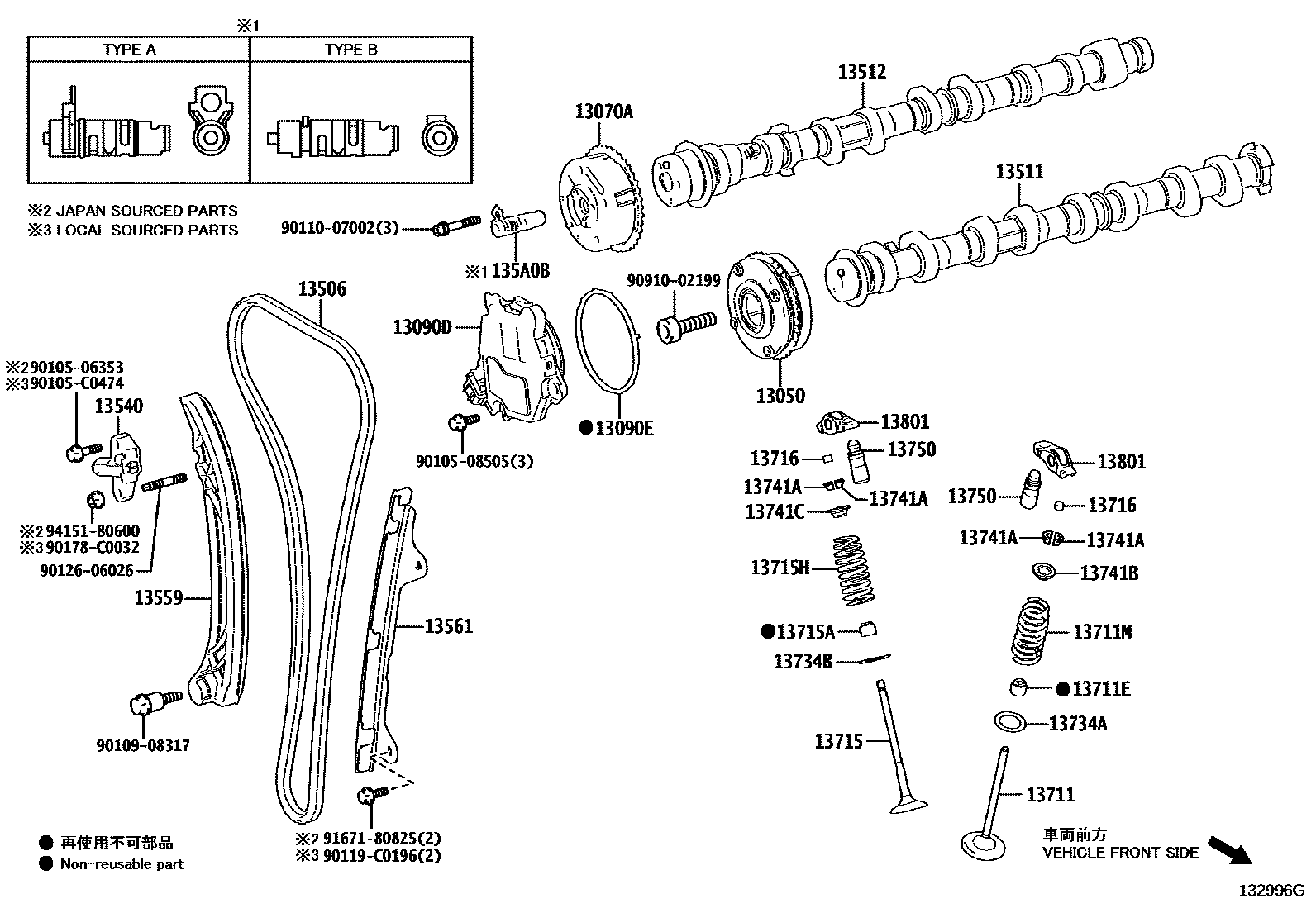

CAMSHAFT & VALVE

0001 1 0002 1

13050GEAR ASSY, CAMSHAFT TIMING

main13050-25010supersedes 13050-F2030iM20..MXAA5#201911-202204

main13050-F2030iA25..AXAL5#; M20..MXAA5#202304-202409

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-F2020iM20..MXAA5#201911-202212

main13070-F2030iA25..AXAH5#; M20..MXAA5#202212-202303

*625

main13070-25030supersedes 13070-F2030iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636,REF. PNC 135A0B

13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU

main13090-25010iA25..AXAL5#; M20..MXAA5#202304-202406

main13090-F2010iA25..AXAL5#; M20..MXAA5#202406-202409

(L)

13090ERING, O(FOR CAM TIMING CONTROL MOTOR)

main90301-C0081iA25..AXAL5#; M20..MXAA5#202409

main90301-92005supersedes 90301-C0081iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13506CHAIN SUB-ASSY

main13506-F0020iA25..AXAL5#202409

main13506-F2020iM20..MXAA5#201911-202303

main13506-25020supersedes 13506-F0020iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13511CAMSHAFT

main13501-F0060iA25..AXAL5#202409

main13501-25020supersedes 13501-F0060iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13512CAMSHAFT, NO.2

main13502-F0060iA25..AXAL5#202409

main13502-25020supersedes 13502-F0060iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13540TENSIONER ASSY, CHAIN, NO.1

main13540-F2010iA25..AXAL5#; M20..MXAA5#202409

main13540-25020supersedes 13540-F2010iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13559SLIPPER, CHAIN TENSIONER

main13559-F0020iA25..AXAL5#202304-202409

main13559-F2020iM20..MXAA5#201911-202303

main13559-25010supersedes 13559-F0020iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-F0020iA25..AXAL5#202409

main13561-F3010iM20..MXAA5#202409

main13561-25021supersedes 13561-F0020iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

135A0BVALVE ASSY, CAMSHAFT TIMING

main135A0-F2020iM20..MXAA5#201911-202212

main135A0-F2040iA25..AXAL5#; M20..MXAA5#202304-202409

main135A0-25020supersedes 135A0-F2040iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636T/P B:REF.ILLUST

13711VALVE, INTAKE

main13711-F0050×8iA25..AXAL5#202409

main13711-F2030×8iM20..MXAA5#202411

main13711-F2040×8iM20..MXAA5#202304-202409

main13711-25020×8supersedes 13711-F0050iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02101×8supersedes 90913-T2001iM20..MXAA5#202409

main90913-T2001×8iM20..MXAA5#201911-202303

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

main90501-C0062×8iM20..MXAA5#202304-202409

main90501-C0068×8iA25..AXAL5#202304-202409

main90501-31031×8supersedes 90501-C0068iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13715VALVE, EXHAUST

main13715-F0030×8iA25..AXAL5#202304-202409

main13715-F2030×8iM20..MXAA5#202304-202409

main13715-25020×8supersedes 13715-F0030iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-T2003×8iA25..AXAL5#; M20..MXAA5#202409

main90913-02112×8supersedes 90913-T2003iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

main90501-C0063×8iM20..MXAA5#202304-202409

main90501-C0069×8iA25..AXAL5#202409

main90501-32075×8supersedes 90501-C0069iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13716CAP, VALVE STEM

main13716-F2020×16iA25..AXAL5#; M20..MXAA5#202409

main13716-25010×16supersedes 13716-F2020iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13734ASEAT, INTAKE VALVE SPRING

main13734-0P020×8iA25..AXAL5#; M20..MXAA5#202304-202409

main13734-62020×8iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13734BSEAT, EXHAUST VALVE SPRING

main13734-0P020×8iA25..AXAL5#; M20..MXAA5#202409

main13734-62020×8iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13741ALOCK, VALVE SPRING RETAINER

main90913-03028×32supersedes 90913-C3001iM20..MXAA5#201911-202112

main90913-C3001×32iA25..AXAL5#; M20..MXAA5#202304-202409

13741BRETAINER, INTAKE VALVE SPRING

main13741-0Y050×8iA25..AXAL5#; M20..MXAA5#202409

main13741-36010×8iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13741CRETAINER, EXHAUST VALVE SPRING

main13741-0Y050×8iA25..AXAL5#; M20..MXAA5#202409

main13741-36010×8iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13750ADJUSTER ASSY, VALVE LASH

main13750-F2030×16iA25..AXAL5#; M20..MXAA5#202409

main13750-25010×16supersedes 13750-F2030iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-F2030×16iA25..AXAL5#; M20..MXAA5#202304-202409

main13801-25010×16supersedes 13801-F2030iA25..AXAH5#202110-202303

ENGINE-A25B-FXS,*636

9010506353

main90105-06353

9010508505

main90105-08505

90105C0474

main90105-C0474

9010908317

main90109-08317

9011007002

main90110-07002

90119C0196

main90119-C0196

9012606026

main90126-06026

90178C0032

main90178-C0032

9091002199

main90910-02199

9167180825

main91671-80825

9415180600

main94151-80600

36 parts on this diagram · 2 diagrams in section
