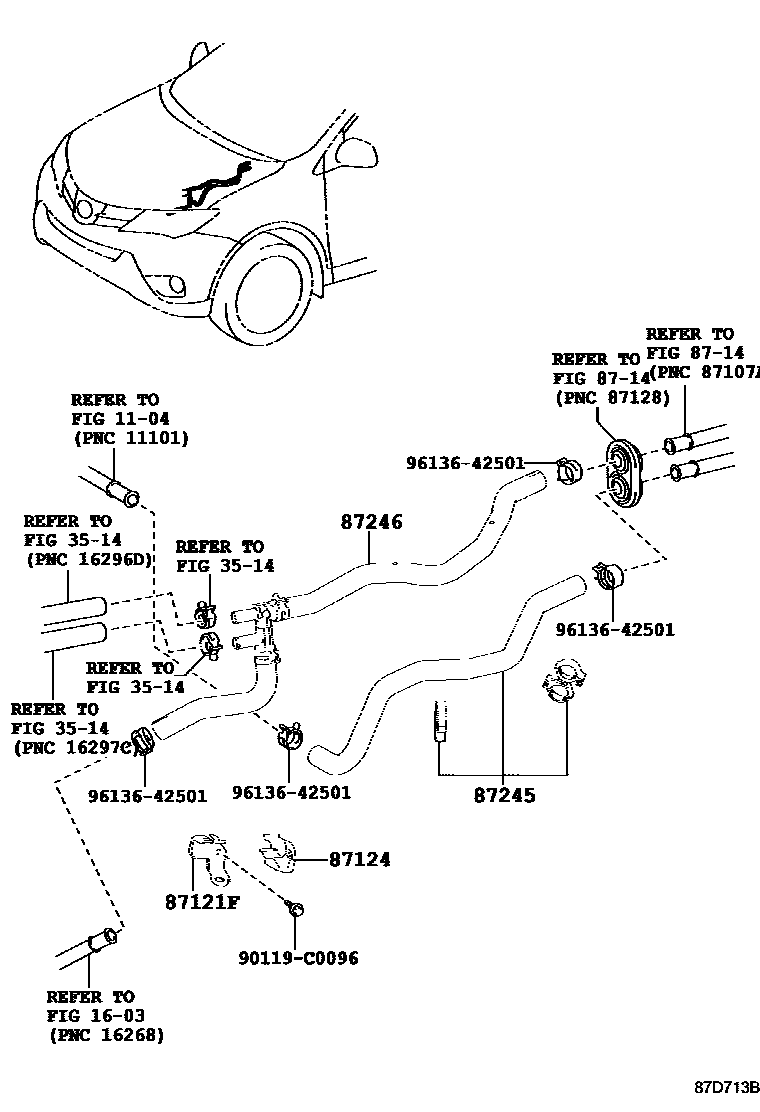

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

87121FBRACKET, HEATER

main87121-0R010iASA4#201308-201607

87124CLAMP, HEATER

main87124-0R050iASA4#201308-201607

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-0R100iASA44201308-201607

main87209-0R120iZSA4#..CVT201308-201607

main87209-0R130iZSA42..6F201308-201607

main87209-0R140iZSA4#201607

87246HOSE, HEATER WATER, OUTLET

main87209-0R110iASA44201308-201607

main87245-0R050iZSA4#201308-201607

main87245-0R130iZSA4#201607

90119C0096

main90119-C0096

9613642501

main96136-42501

10 parts on this diagram · 3 diagrams in section
