HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1AIR DUCT 0003 1SENSOR

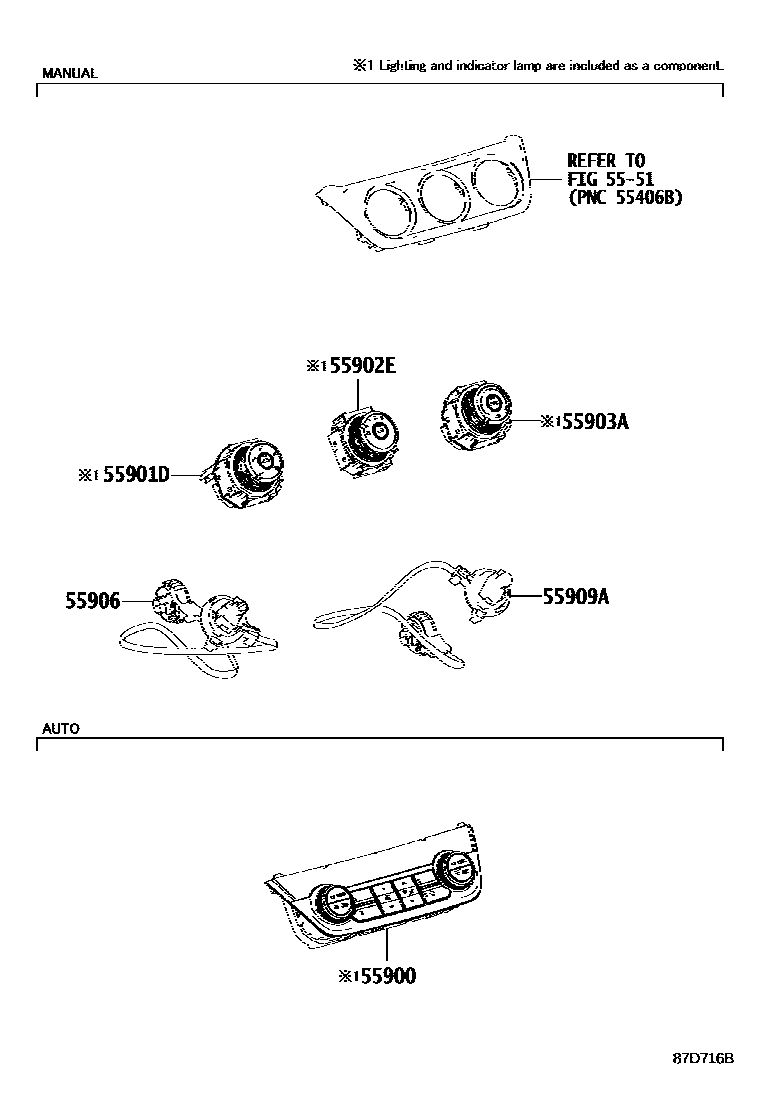

5551

55900CONTROL ASSY, AIR CONDITIONER

main55900-0R070iASA44,ZSA4#..G,M,Q201412-201607

main55900-0R090iASA44,ZSA4#..G,M,Q201308-201412

main55900-0R150iASA4#,ZSA4#..G,M,Q201607

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-0R030supersedes 55901-0R030iZSA42..X201308-201607

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-0R050supersedes 55902-0R050iZSA42..X201308-201607

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-0R040supersedes 55903-0R040iZSA42..X201308-201607

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-0K010supersedes 55906-0K010iZSA42..X201308-201607

sub55906-26060

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K010supersedes 55909-0K010iZSA42..X201308-201607

sub55909-26080

7 parts on this diagram · 3 diagrams in section
