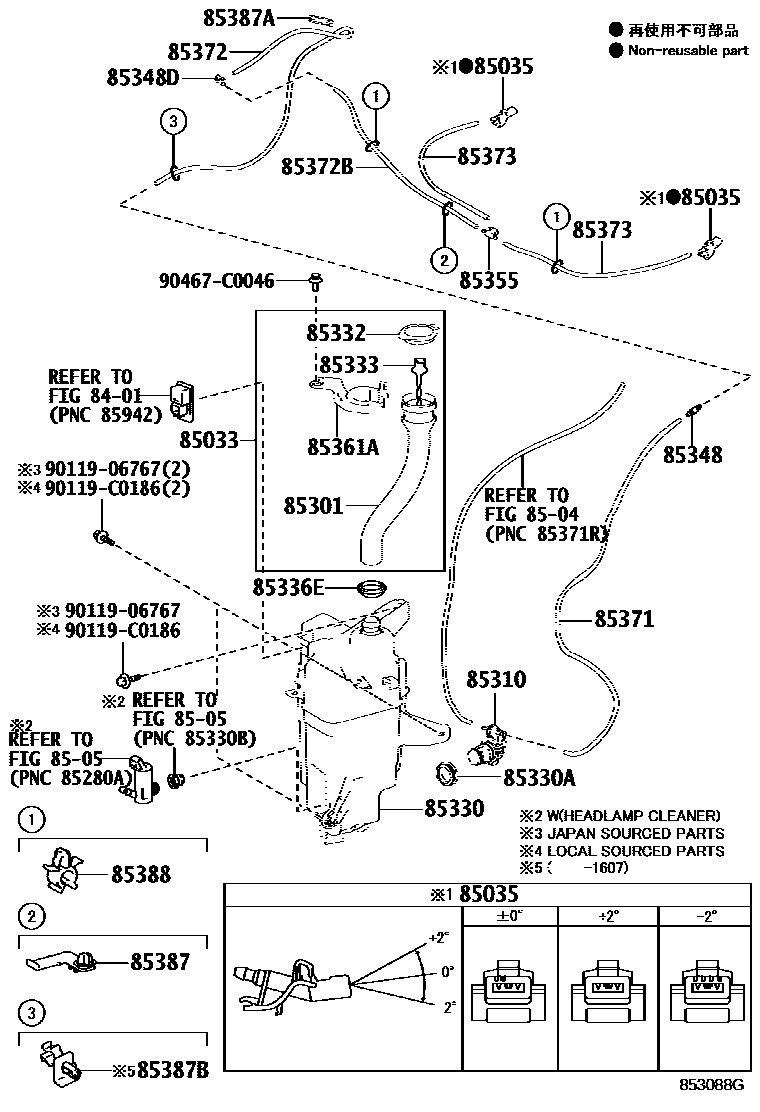

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85033CAP ASSY, WINDSHIELD WASHER

main85316-0R040i201308-201607

85035NOZZLE SUB-ASSY, WASHER

main85381-12400i201308-201607

ANGLE 0

main85381-12410i201308-201607

ANGLE -2

main85381-12420i201308-201607

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85319-0R020i201308-201607

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-42010i201308-201607

85330JAR ASSY, WINDSHIELD WASHER

main85315-0R040i201308-201607

main85315-0R050i201308-201607

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201308-201607

85332CAP, WINDSHIELD WASHER JAR

main85316-0P010i201308-201607

85333FILTER, WINDSHIELD WASHER JAR

main85312-0R010i201308-201607

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i201308-201607

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0D030i201308-201607

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-60290i201308-201607

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201308-201607

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-0R040i201308-201607

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33190i201308-201607

L=720

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33195i201308-201607

L=1020

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33196i201308-201607

L=680

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33200i201308-201607

L=440

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-10500i201308-201607

85387ACLAMP, WASHER, NO.2

main85387-02280i201308-201607

85387BCLAMP, WASHER, NO.3

main85371-32020i201308-201607

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main90469-07011i201308-201811

main90469-C0014i201812

9011906767

main90119-06767

90119C0186

main90119-C0186

90467C0046

main90467-C0046
