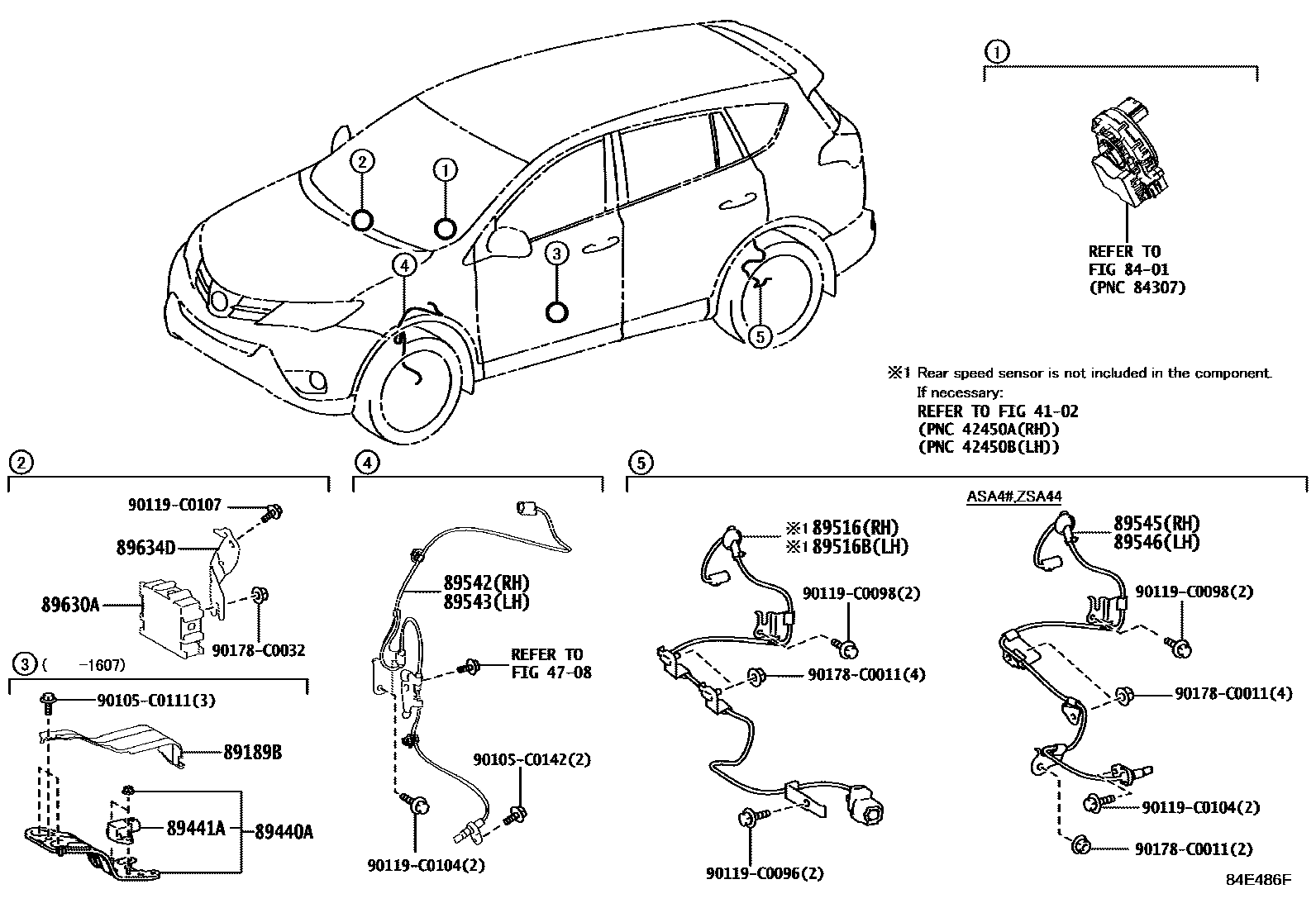

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89189BBRACKET, YAWRATE SENSOR

main89189-42020iZSA4#..CVT..(M,X)201308-201607

VSC-WITH

main89189-42020iZSA4#..CVT..(M,X)201308-201607

VSC-WITH(HSAC & DAC)

main89189-42020iZSA4#..CVT..(M,X)201308-201607

VSC-WITHOUT

89440ASENSOR ASSY, DECELERATION

main89440-42070iZSA42..CVT201308-201607

89441ASENSOR, DECELERATION

main89440-42070iZSA44..M201308-201607

VSC-WITH

main89440-42070iZSA44..M201308-201607

VSC-WITH(HSAC & DAC)

main89440-42070iZSA44..M201308-201607

VSC-WITHOUT

main89441-12060iZSA42..CVT201308-201607

89516WIRE, SKID CONTROL SENSOR

main89516-0R070iZSA42201308-201506

main89516-0R110iZSA42201507-201607

89516BWIRE, SKID CONTROL SENSOR

main89516-0R080iZSA42201308-201506

main89516-0R120iZSA42201507-201607

89542SENSOR, SPEED, FRONT RH

main89542-0R020iASA44,ZSA4#201308-201607

89543SENSOR, SPEED, FRONT LH

main89543-0R020iASA44,ZSA4#201308-201607

89545SENSOR, SPEED, REAR RH

main89545-0R020iASA44,ZSA44201308-201607

89546SENSOR, SPEED, REAR LH

main89546-0R020iASA44,ZSA44201308-201607

89630ACOMPUTER ASSY, 4WD

main89630-0R020iASA44,ZSA44201308-201607

main89630-0R040iASA4#,ZSA44201607

89634DBRACKET, SKID CONTROL COMPUTER NO.3

main89634-42020iASA44,ZSA44201308-201607

90105C0111

main90105-C0111

90105C0142

main90105-C0142

90119C0096

main90119-C0096

90119C0098

main90119-C0098

90119C0104

main90119-C0104

90119C0107

main90119-C0107

90178C0011

main90178-C0011

90178C0032

main90178-C0032

22 parts on this diagram · 1 diagram in section
