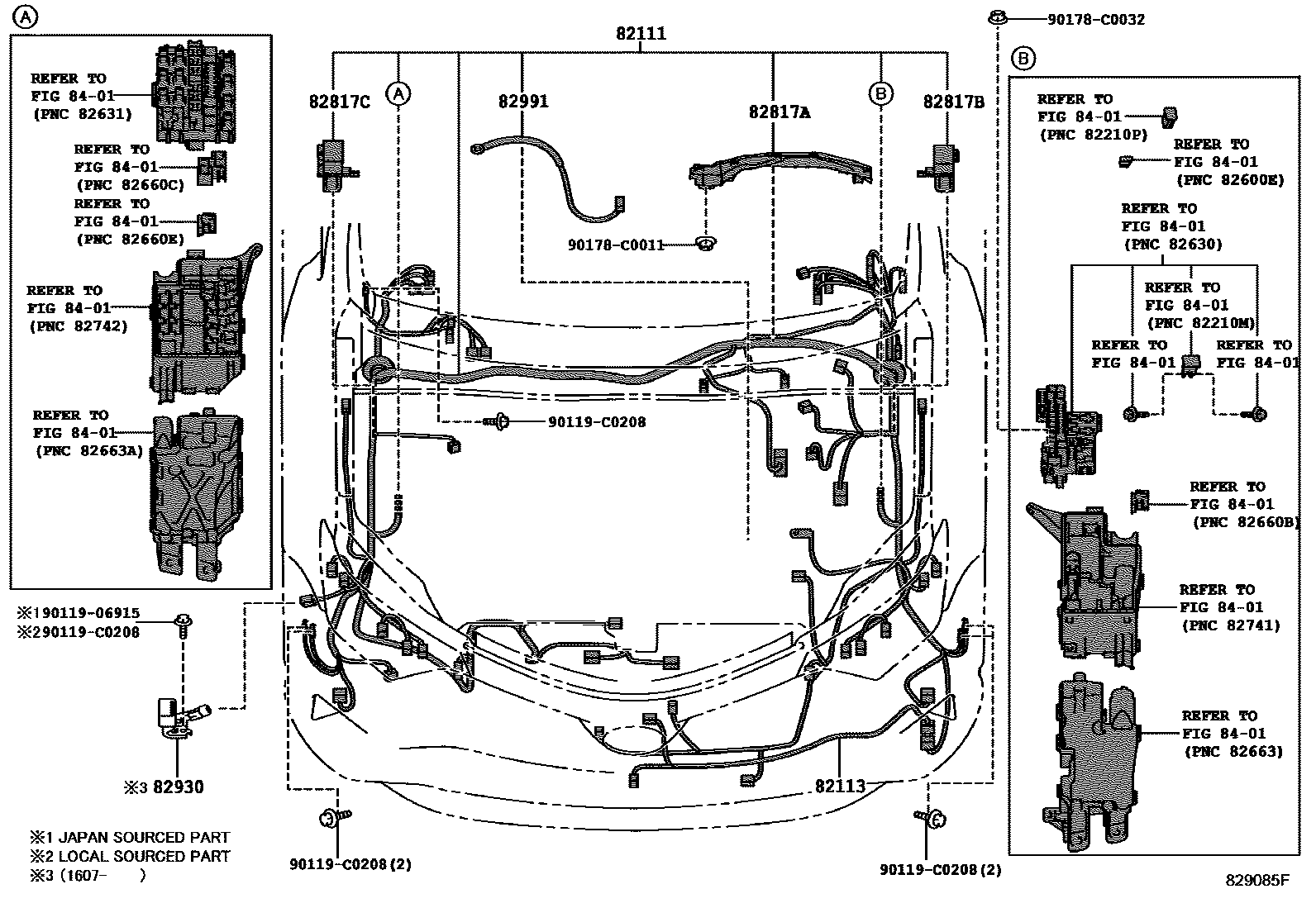

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
VSC-WITH(HSAC & DAC)
VSC-WITHOUT
VSC-WITHOUT&POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)&HEAD LAMP-DISCHARGE & WITH(AUTOMATIC HIGH BEAM)
POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)&HEAD LAMP-DISCHARGE & WITH(AUTOMATICHIGH BEAM)
VSC-WITHOUT
AUDIO-AVN & JBL & *BT
AUDIO-AVN & JBL & *BT
AUDIO-AVN & JBL & *BT
PRE-COLLISION SYSTEM-WITH
PRE-COLLISION SYSTEM-WITH
VALUE PACKAGE(WITH(CRUISE CONTROL))
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82817CPROTECTOR, WIRING HARNESS, NO.4
82930CONDENSER ASSY, WIRING HARNESS, NO.1
8401
9011906915
main90119-06915
90119C0208
main90119-C0208
90178C0011
main90178-C0011
90178C0032
main90178-C0032
13 parts on this diagram · 13 diagrams in section
