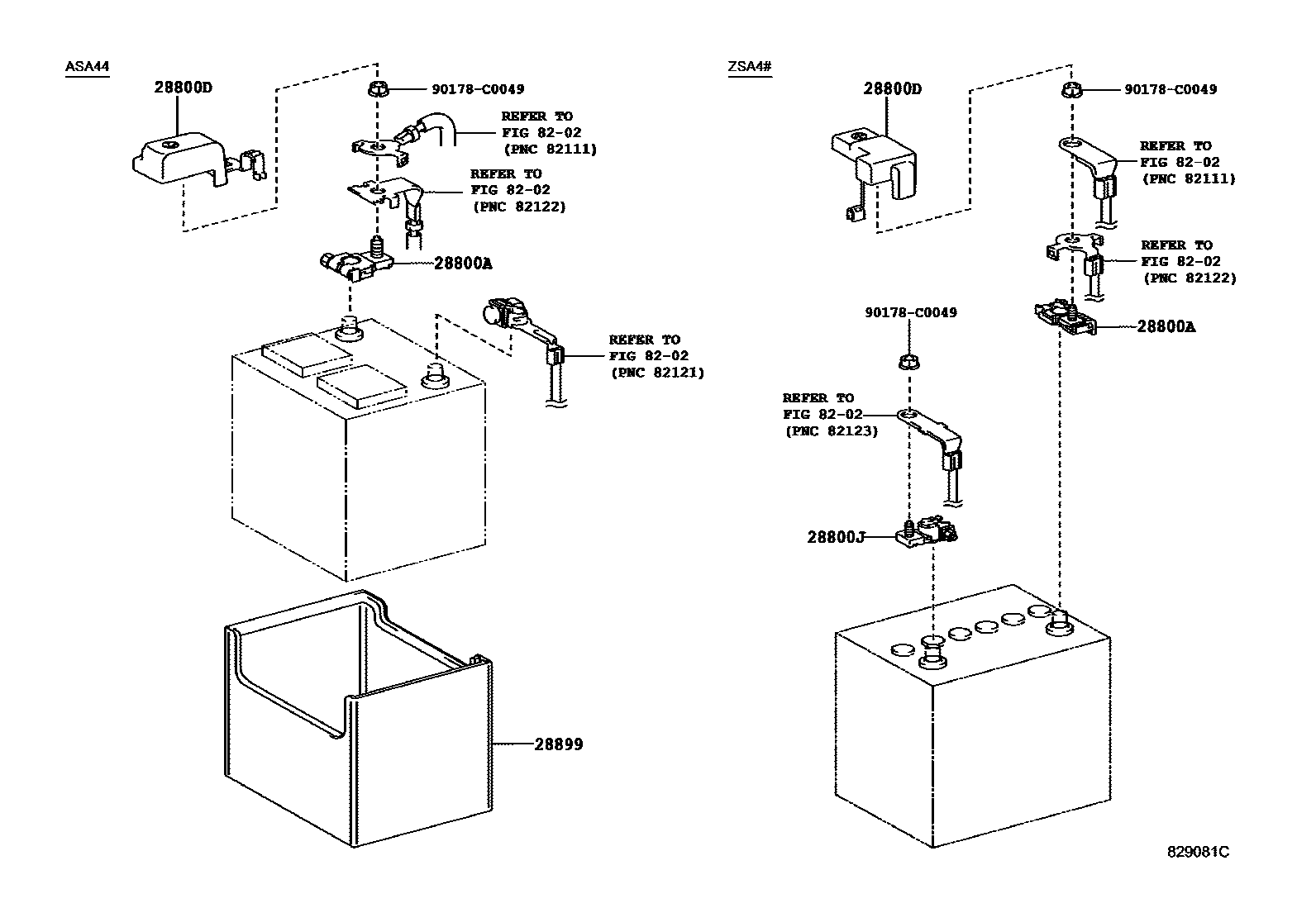

BATTERY & BATTERY CABLE

0001 1 0002 1

28800ATERMINAL, BATTERY POSITIVE

main82675-42080i6ZRFAE..ZSA4#201607

main90982-05061i5ARFE..ASA44201308-201607

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-42070i6ZRFAE..ZSA4#201607

main82821-48020i5ARFE..ASA44201308-201607

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i6ZRFE..ZSA4#201308-201607

28899INSULATOR, BATTERY

main28899-28090i5ARFE..ASA44201308-201607

8202

90178C0049

main90178-C0049

6 parts on this diagram · 2 diagrams in section
