Toyota 660310 — REAR COMBINATION LAMP

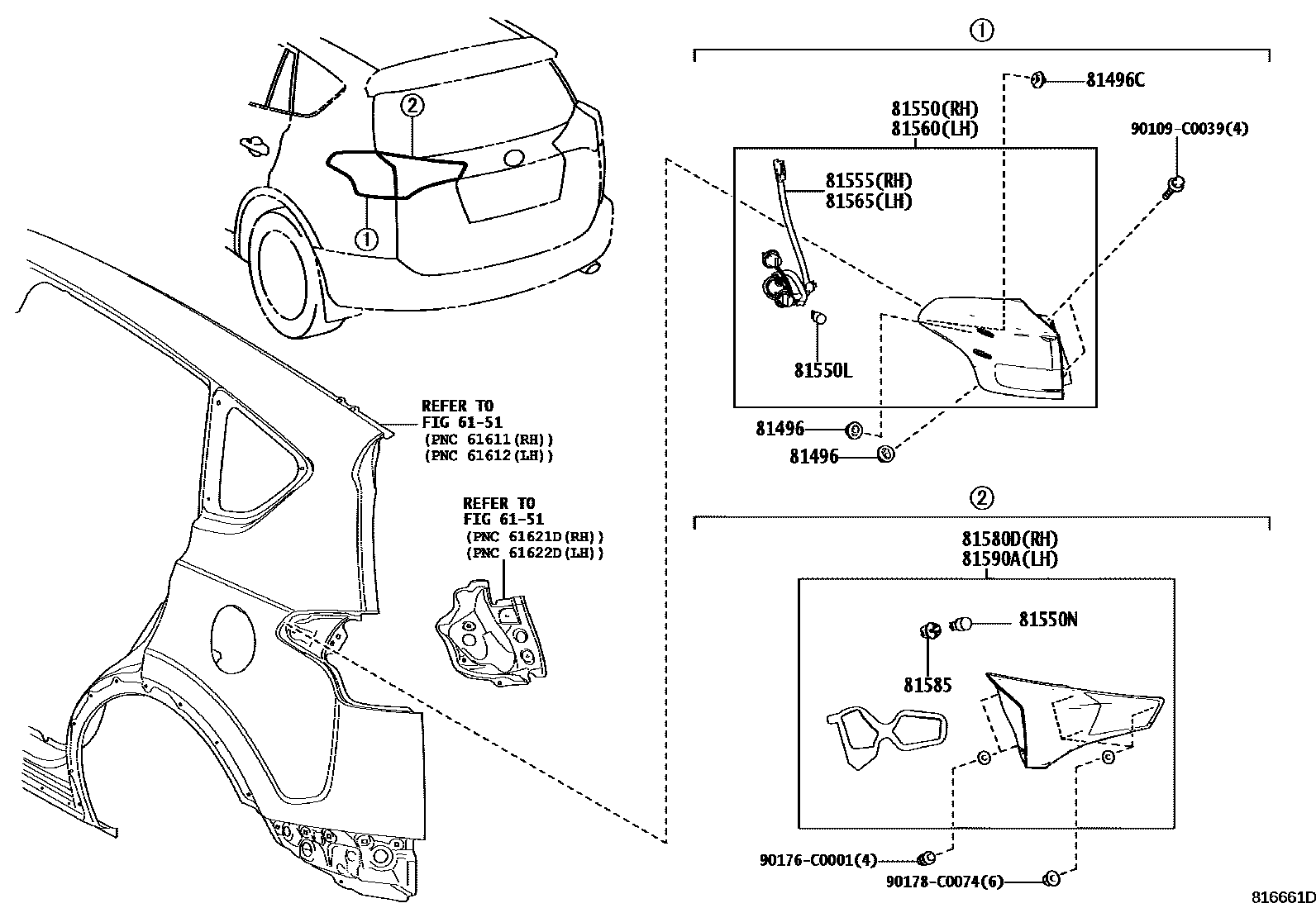

Parts diagram

6151SIDE MEMBER

→ Go to FIG 61-51

81496GUIDE, REAR COMBINATION LAMP

81496CGUIDE, REAR COMBINATION LAMP, NO.2

81550LAMP ASSY, REAR COMBINATION, RH

81550LBULB, REAR TURN SIGNAL LAMP

81550NBULB, BACK UP LAMP

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81560LAMP ASSY, REAR COMBINATION, LH

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

81580DLAMP ASSY, REAR, RH

81585SOCKET & WIRE, REAR LAMP

81590ALAMP ASSY, REAR, LH

90109C0039

90176C0001

90178C0074

15 parts on this diagram · 2 diagrams in section

REAR COMBINATION LAMP for Toyota 660310

This section contains 19 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota 660310. Key components include: SIDE MEMBER, GUIDE, REAR COMBINATION LAMP, GUIDE, REAR COMBINATION LAMP, NO.2, LAMP ASSY, REAR COMBINATION, RH, BULB, REAR TURN SIGNAL LAMP.
