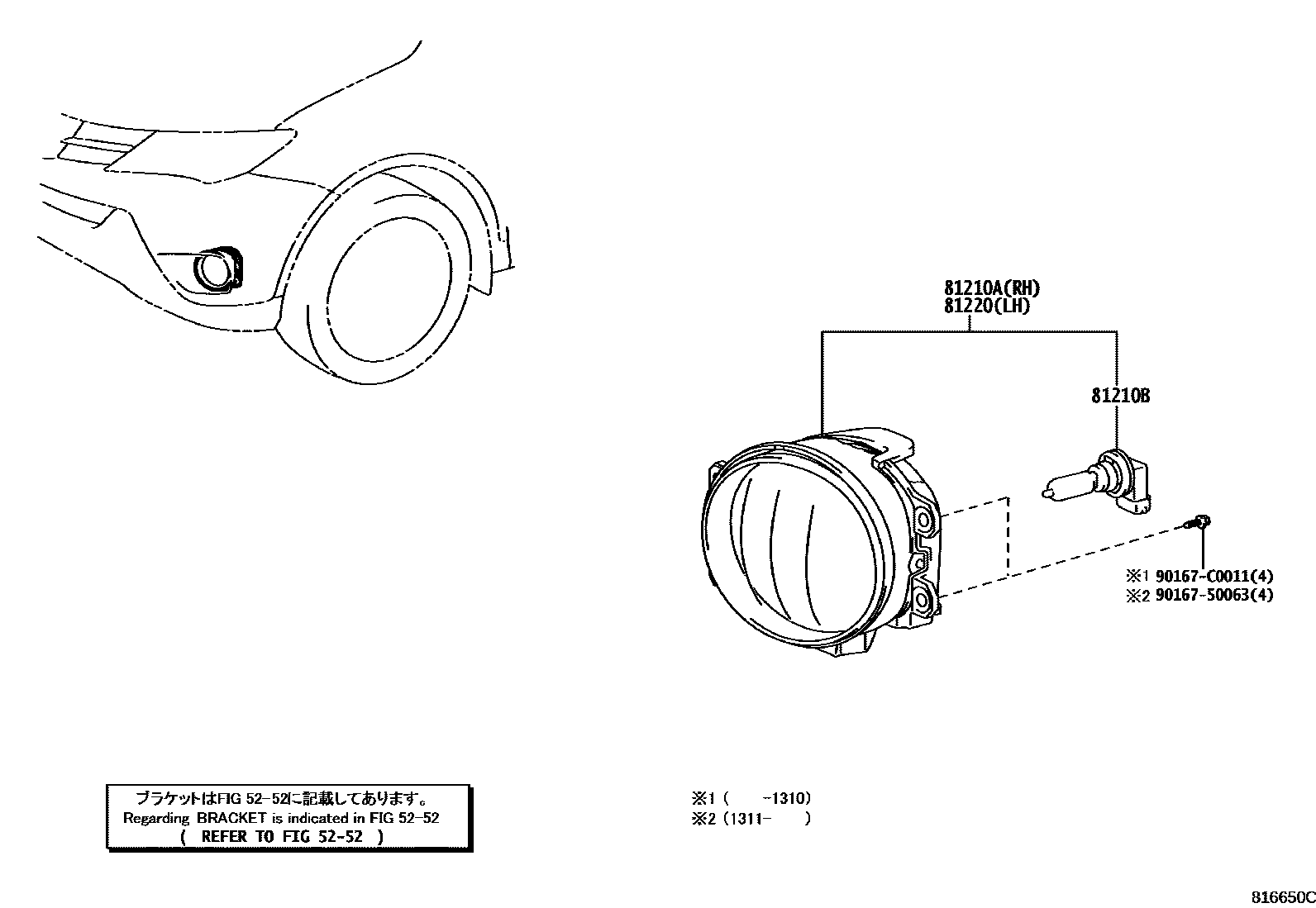

FOG LAMP

0001 1 0002 1

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81210ALAMP ASSY, FOG, RH

main81210-0D100iASA4#,ZSA4#201607

main81210-0R010iASA44,ZSA4#201308-201607

81210BBULB, FOG LAMP

main90981-CD003iASA4#,ZSA4#201607

12V 19W

main90981-CD004iASA44,ZSA4#201308-201607

12V 19W

81220LAMP ASSY, FOG, LH

main81220-0D100iASA4#,ZSA4#201607

main81220-0R010iASA44,ZSA4#201308-201607

9016750063

main90167-50063

90167C0011

main90167-C0011

6 parts on this diagram · 2 diagrams in section
