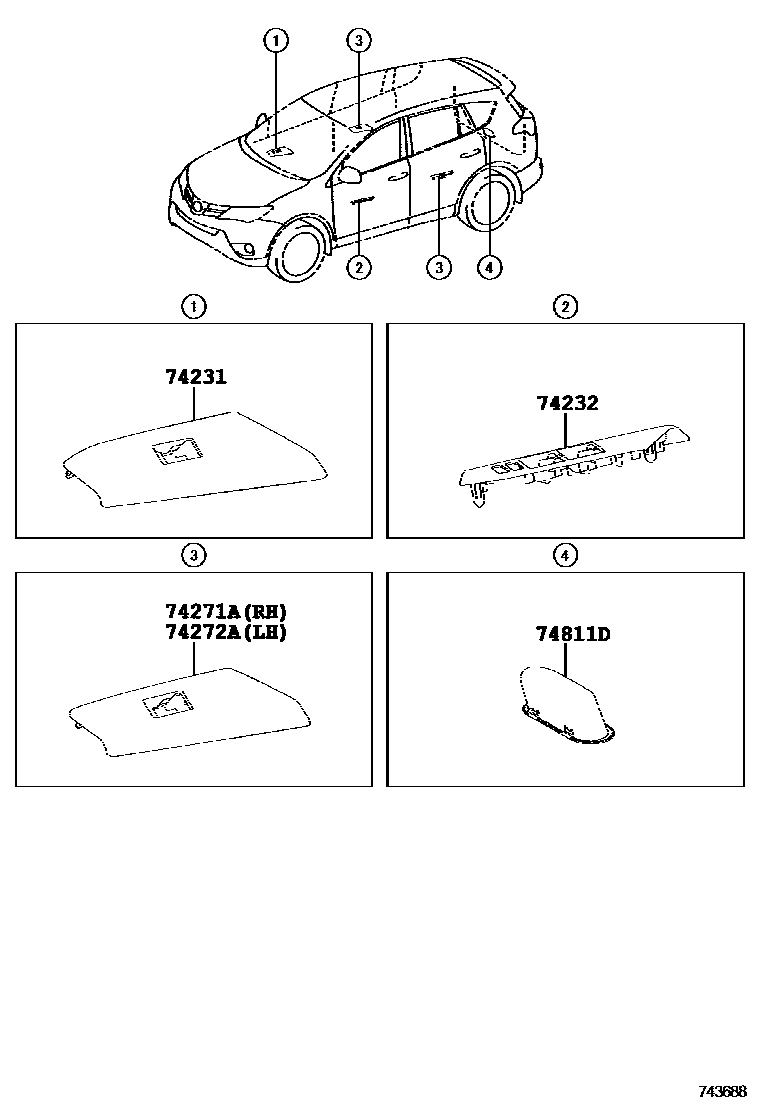

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0R040-C0iASA44;ZSA44..G201308-201607

BLACK,TRIM2#,4#

main74231-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main74231-0R090iASA4#,ZSA4#201607

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main74232-0R040-C0iASA44;ZSA44..G201308-201607

BLACK,TRIM2#,4#

main74232-0R090iASA4#,ZSA4#201607

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main74271-0R040-C0iASA44;ZSA44..G201308-201607

BLACK,TRIM2#,4#

main74271-0R090iASA4#,ZSA4#201607

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main74272-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main74272-0R090iASA4#,ZSA4#201607

74811DHANDLE, DOOR PULL

main74811-13010-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

sub74811-13010

main74811-13010-C0iZSA4#..M,X201308-201710

BLACK,TRIM2#,3#,4#

sub74811-13010

main74811-13010-C0iASA44..M201607-201710

BLACK,TRIM1#,2#,3#,4#

sub74811-13010

main74811-13010-C0iASA44..M201607-201710

BLACK,TRIM1#,2#,4#

sub74811-13010

main74811-13010-C2iZSA4#..M,X201710

BLACK,TRIM2#,4#

sub74811-13010

main74811-13010-C2iZSA4#..M,X201710

BLACK,TRIM2#,3#,4#

sub74811-13010

5 parts on this diagram · 2 diagrams in section
