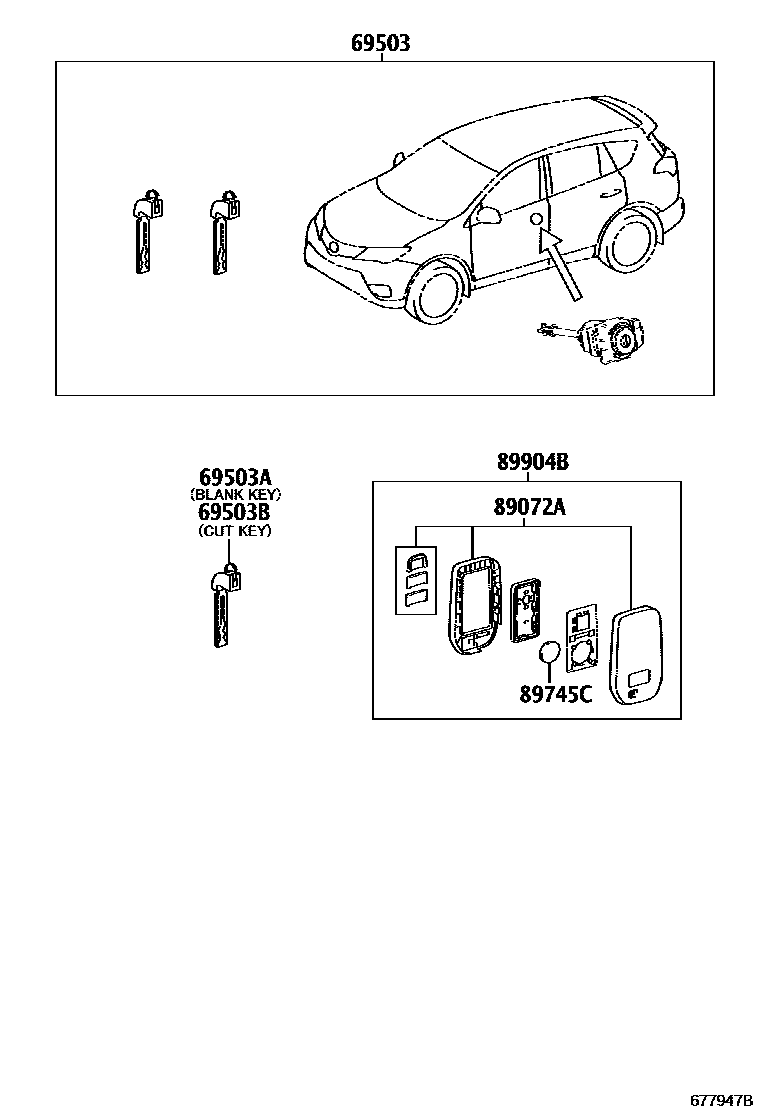

LOCK CYLINDER SET

0001 1WITH(SMART ENTRY) 0002 1WITHOUT(SMART ENTRY)

69503CYLINDER SET, LOCK

main69005-0R110iASA4#,ZSA4#..G,M,Q201607

main89704-0R150iZSA42..X201607

main89704-0R160iZSA4#..M201308-201607

69503AKEY, BLANK

main69515-33120iASA4#,ZSA4#..G,M,Q201607

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-33110×2iASA44;ZSA44..G201308-201607

MASTER KEY,W(*68)

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-0R160×2iASA44..G201308-201410

main89072-0R170×2iZSA44..G201410-201607

POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)

89745CBATTERY, TRANSMITTER

main89745-45010iASA44;ZSA44..G201308-201607

CR2032

sub89745-50020

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-0R110×2iASA44..G201308-201410

main89904-0R120×2iZSA44..G201410-201607

POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)

6 parts on this diagram · 2 diagrams in section
