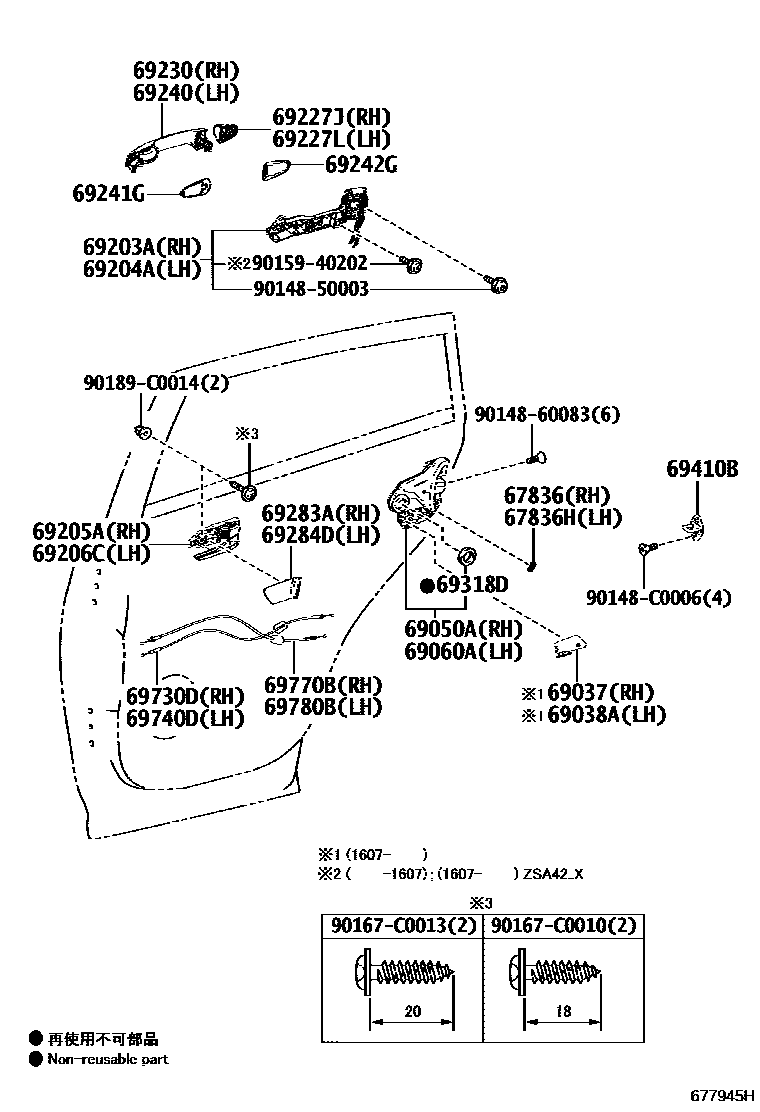

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-02040iASA4#,ZSA4#201607

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-02040iASA4#,ZSA4#201607

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02060iASA4#,ZSA4#201607

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02060iASA4#,ZSA4#201607

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02450iASA4#,ZSA4#..G,M,Q201607

main69050-02460iZSA42..X201607

main69050-06111iASA44,ZSA4#201308-201607

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02450iASA4#,ZSA4#..G,M,Q201607

main69060-02460iZSA42..X201607

main69060-06111iASA44,ZSA4#201308-201607

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0R040iZSA42..X201607

main69203-0R050iASA4#,ZSA4#..G,M,Q201607

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0R040iZSA4#..M,X201308-201607

main69204-0R050iASA4#,ZSA4#..G,M,Q201607

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0R040-C0iASA4#..M; ZSA4#..M; ZSA42..X201607

BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,3#,4#

main69205-0R050-C0iASA44,ZSA44..G,Q201308-201607

BLACK,TRIM2#,3#,4#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0R040-C0iASA4#..M; ZSA4#..M; ZSA42..X201607

BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,3#,4#

main69206-0R050-C0iASA45..Q201901

BLACK,TRIM2#,3#,4#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69250-0R040-A0iZSA4#..M,X201308-201410

SUPER WHITE 2,040

main69250-0R040-A1iZSA4#..M,X201410-201607

WHITE PEARL CS.,070

main69250-0R040-B0iZSA4#..M,X201308-201607

SILVER ME.,1F7

main69250-0R040-C0iZSA4#..M,X201308-201607

BLACK MC.,209

main69250-0R040-D0iZSA4#..M,X201308-201607

RED M.M.,3R3

main69250-0R040-D1iZSA42..X201607

DK.RED M.M.,3T0

main69250-0R040-E0iZSA4#..M,X201308-201607

ORANGE ME.,4R8

main69250-0R040-E1iZSA42..X201607

DK. BROWN M.M.,4U3

main69250-0R040-E2iZSA4#..M,X201308-201607

AVANT-GARDE BRONZE ME.,4V8

main69250-0R040-J0iZSA42..X201607

BLUE ME.,8X7

main69250-0R050iASA4#,ZSA4#..G,M,Q201607

*CR

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69250-0R040-A0iZSA4#..M,X201308-201410

SUPER WHITE 2,040

main69250-0R040-A1iZSA42..X201607

WHITE PEARL CS.,070

main69250-0R040-B0iZSA4#..M,X201308-201607

SILVER ME.,1F7

main69250-0R040-C0iZSA4#..M,X201308-201607

BLACK MC.,209

main69250-0R040-D0iZSA4#..M,X201308-201607

RED M.M.,3R3

main69250-0R040-D1iZSA42..X201607

DK.RED M.M.,3T0

main69250-0R040-E0iZSA4#..M,X201308-201607

ORANGE ME.,4R8

main69250-0R040-E1iZSA4#..M,X201308-201607

DK. BROWN M.M.,4U3

main69250-0R040-E2iZSA4#..M,X201308-201607

AVANT-GARDE BRONZE ME.,4V8

main69250-0R040-J0iZSA42..X201607

BLUE ME.,8X7

main69250-0R050iASA4#,ZSA4#..G,M,Q201607

*CR

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-0R040-B1iASA44;ZSA44..G201308-201607

PLATED,SILVER METALLIC,040 ,070 ,1F7 ,209 ,3R3 ,4R8 ,4U3 ,4V8

main69211-0R040-A0iZSA4#..M,X201308-201410

SUPER WHITE 2,040

main69211-0R040-A1iZSA42..X201607

WHITE PEARL CS.,070

main69211-0R040-B0iZSA4#..M,X201308-201607

SILVER ME.,1F7

main69211-0R040-C0iZSA4#..M,X201308-201607

BLACK MC.,209

main69211-0R040-D0iZSA4#..M,X201308-201607

RED M.M.,3R3

main69211-0R040-D1iZSA42..X201607

DK.RED M.M.,3T0

main69211-0R040-E0iZSA42..X201607-201710

ORANGE ME.,4R8

main69211-0R040-E1iZSA42..X201607

DK. BROWN M.M.,4U3

main69211-0R040-E2iZSA42..X201607

AVANT-GARDE BRONZE ME.,4V8

main69211-0R040-J0iZSA42..X201607

BLUE ME.,8X7

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-0R040-B1iASA44;ZSA44..G201308-201607

PLATED,SILVER METALLIC,040 ,070 ,1F7 ,209 ,3R3 ,4R8 ,4U3 ,4V8

main69211-0R040-A0iZSA4#..M,X201308-201410

SUPER WHITE 2,040

main69211-0R040-A1iZSA4#..M,X201410-201607

WHITE PEARL CS.,070

main69211-0R040-B0iZSA4#..M,X201308-201607

SILVER ME.,1F7

main69211-0R040-C0iZSA42..X201607

BLACK MC.,209

main69211-0R040-D0iZSA4#..M,X201308-201607

RED M.M.,3R3

main69211-0R040-D1iZSA42..X201607

DK.RED M.M.,3T0

main69211-0R040-E0iZSA42..X201607-201710

ORANGE ME.,4R8

main69211-0R040-E1iZSA42..X201607

DK. BROWN M.M.,4U3

main69211-0R040-E2iZSA42..X201607

AVANT-GARDE BRONZE ME.,4V8

main69211-0R040-J0iZSA42..X201607

BLUE ME.,8X7

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-0R020×2iASA44,ZSA4#201308-201607

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-0R020×2iASA44,ZSA4#201308-201607

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-0R010-C0iASA44..Q;ZSA4#..G,M; ASA45;ASA44..M; ZSA42..X201607

BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,3#,4#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-0R010-C0iASA44;ZSA44..G; ZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iASA44,ZSA4#201308-201607

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D020×2iASA44,ZSA4#201308-201607

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0R040iASA44,ZSA4#201308-201607

main69730-0R050iASA4#,ZSA4#201607

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0R040iASA44,ZSA4#201308-201607

main69730-0R050iASA4#,ZSA4#201607

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0R040iASA44,ZSA4#201308-201607

main69770-0R050iASA4#,ZSA4#201607

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-0R040iASA44,ZSA4#201308-201607

main69770-0R050iASA4#,ZSA4#201607

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

9015940202

main90159-40202

90167C0010

main90167-C0010

90167C0013

main90167-C0013

90189C0014

main90189-C0014

31 parts on this diagram · 1 diagram in section
