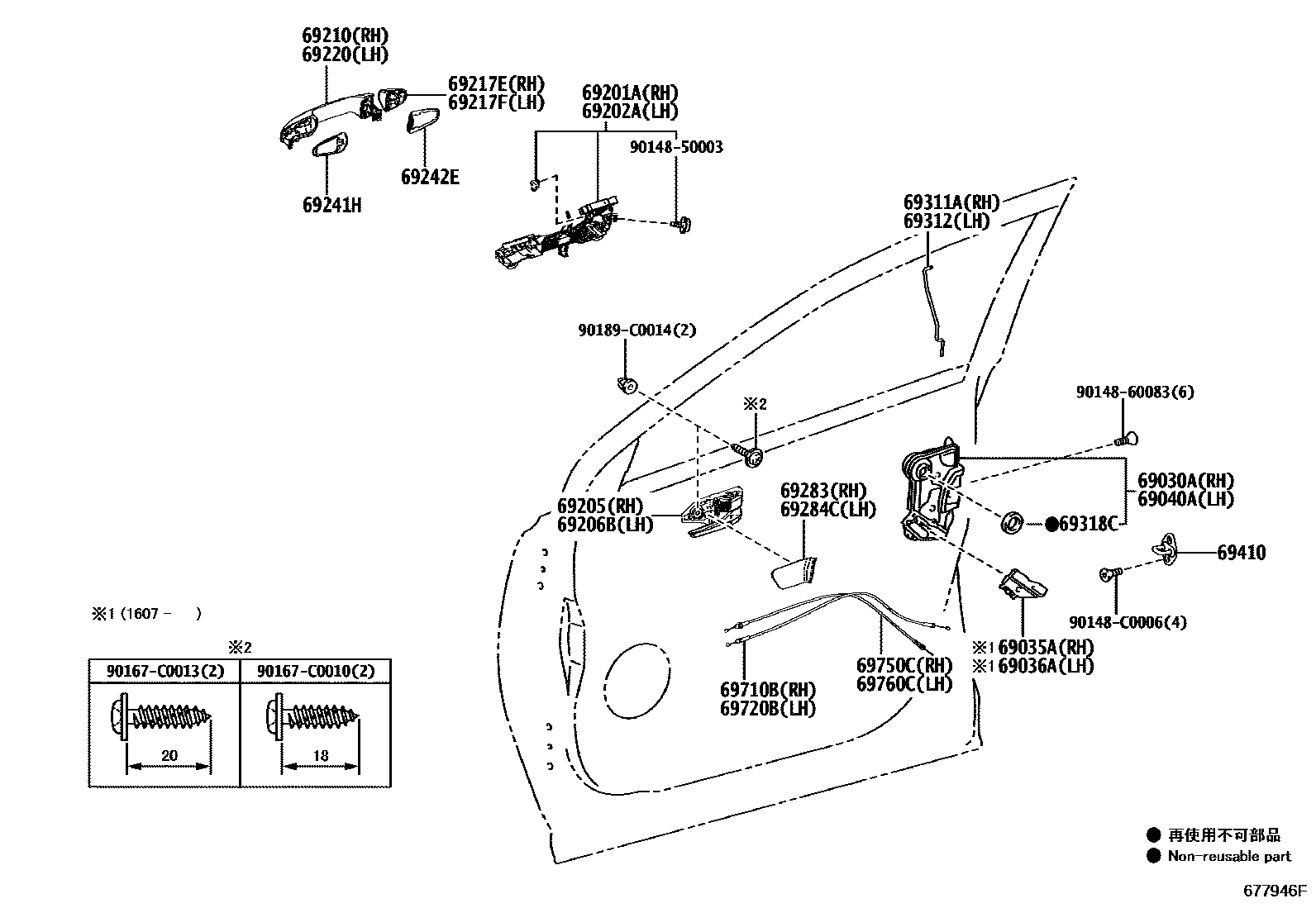

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02620iASA4#,ZSA4#201607

main69030-06221iASA44,ZSA4#201308-201607

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02060iASA4#,ZSA4#201607

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02060iASA4#,ZSA4#201607

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02590iASA4#,ZSA4#201607

main69040-06191iASA44,ZSA4#201308-201607

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0R020iZSA4#..M,X201308-201607

main69201-0R030iASA4#,ZSA4#..G,M,Q201607

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0R020iZSA4#..M,X201308-201607

main69202-0R030iASA4#,ZSA4#..G,M,Q201607

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0R040-C0iASA4#..M; ZSA4#..M; ZSA42..X201607

BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,3#,4#

main69205-0R050-C0iASA44,ZSA44..G,Q201308-201607

BLACK,TRIM2#,3#,4#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0R040-C0iASA4#..M; ZSA4#..M; ZSA42..X201607

BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,3#,4#

main69206-0R050-C0iASA44,ZSA44..G,Q201308-201607

BLACK,TRIM2#,3#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0R030-B1iASA4#,ZSA4#..G,M,Q201607

PLATED,SILVER METALLIC,070 ,209 ,3T0 ,4R8 ,4U3 ,4V8 ,8X7

main69211-0R040-A0iZSA4#..M,X201308-201410

SUPER WHITE 2,040

main69211-0R040-A1iZSA4#..M,X201410-201607

WHITE PEARL CS.,070

main69211-0R040-B0iZSA4#..M,X201308-201607

SILVER ME.,1F7

main69211-0R040-C0iZSA42..X201607

BLACK MC.,209

main69211-0R040-D0iZSA4#..M,X201308-201607

RED M.M.,3R3

main69211-0R040-D1iZSA42..X201607

DK.RED M.M.,3T0

main69211-0R040-E0iZSA4#..M,X201308-201607

ORANGE ME.,4R8

main69211-0R040-E1iZSA4#..M,X201308-201607

DK. BROWN M.M.,4U3

main69211-0R040-E2iZSA42..X201607

AVANT-GARDE BRONZE ME.,4V8

main69211-0R040-J0iZSA42..X201607

BLUE ME.,8X7

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69250-0R010-A0iZSA4#..M,X201308-201410

SUPER WHITE 2,040

main69250-0R010-A1iZSA42..X201607

WHITE PEARL CS.,070

main69250-0R010-B0iZSA4#..M,X201308-201607

SILVER ME.,1F7

main69250-0R010-C0iZSA4#..M,X201308-201607

BLACK MC.,209

main69250-0R010-D0iZSA4#..M,X201308-201607

RED M.M.,3R3

main69250-0R010-D1iZSA42..X201607

DK.RED M.M.,3T0

main69250-0R010-E0iZSA42..X201607-201710

ORANGE ME.,4R8

main69250-0R010-E1iZSA4#..M,X201308-201607

DK. BROWN M.M.,4U3

main69250-0R010-E2iZSA42..X201607

AVANT-GARDE BRONZE ME.,4V8

main69250-0R010-J0iZSA42..X201607

BLUE ME.,8X7

main69250-0R030iASA44;ZSA44..G201308-201607

*CR

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-0R080-A0iZSA4#..M,X201308-201410

SUPER WHITE 2,040

main69217-0R080-A1iZSA4#..M,X201410-201607

WHITE PEARL CS.,070

main69217-0R080-B0iZSA4#..M,X201308-201607

SILVER ME.,1F7

main69217-0R080-C0iZSA4#..M,X201308-201607

BLACK MC.,209

main69217-0R080-D0iZSA4#..M,X201308-201607

RED M.M.,3R3

main69217-0R080-D1iZSA42..X201607

DK.RED M.M.,3T0

main69217-0R080-E0iZSA42..X201607-201710

ORANGE ME.,4R8

main69217-0R080-E1iZSA42..X201607

DK. BROWN M.M.,4U3

main69217-0R080-E2iZSA42..X201607

AVANT-GARDE BRONZE ME.,4V8

main69217-0R080-J0iZSA42..X201607

BLUE ME.,8X7

main69217-0R120iASA4#,ZSA4#..G,M,Q201607

*CR

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0R030-B1iASA4#,ZSA4#..G,M,Q201607

PLATED,SILVER METALLIC,070 ,209 ,3T0 ,4R8 ,4U3 ,4V8 ,8X7

main69211-0R040-A0iZSA4#..M,X201308-201410

SUPER WHITE 2,040

main69211-0R040-A1iZSA42..X201607

WHITE PEARL CS.,070

main69211-0R040-B0iZSA4#..M,X201308-201607

SILVER ME.,1F7

main69211-0R040-C0iZSA42..X201607

BLACK MC.,209

main69211-0R040-D0iZSA4#..M,X201308-201607

RED M.M.,3R3

main69211-0R040-D1iZSA42..X201607

DK.RED M.M.,3T0

main69211-0R040-E0iZSA4#..M,X201308-201607

ORANGE ME.,4R8

main69211-0R040-E1iZSA4#..M,X201308-201607

DK. BROWN M.M.,4U3

main69211-0R040-E2iZSA4#..M,X201308-201607

AVANT-GARDE BRONZE ME.,4V8

main69211-0R040-J0iZSA42..X201607

BLUE ME.,8X7

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-0R020×2iASA44,ZSA4#201308-201607

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0R020×2iASA44,ZSA4#201308-201607

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-0R010-C0iASA44..Q;ZSA4#..G,M; ASA45;ASA44..M; ZSA42..X201607

BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,3#,4#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-0R010-C0iASA44;ZSA44..G; ZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0R040iASA44,ZSA4#201308-201607

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0R040iASA44,ZSA4#201308-201607

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iASA44,ZSA4#201308-201607

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D020×2iASA44,ZSA4#201308-201607

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0R040iASA44,ZSA4#201308-201607

main69710-0R050iASA4#,ZSA4#201607

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0R040iASA44,ZSA4#201308-201607

main69710-0R050iASA4#,ZSA4#201607

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0R040iASA44,ZSA4#201308-201607

main69750-0R050iASA4#,ZSA4#201607

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-0R040iASA44,ZSA4#201308-201607

main69750-0R050iASA4#,ZSA4#201607

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

90167C0010

main90167-C0010

90167C0013

main90167-C0013

90189C0014

main90189-C0014

30 parts on this diagram · 1 diagram in section
