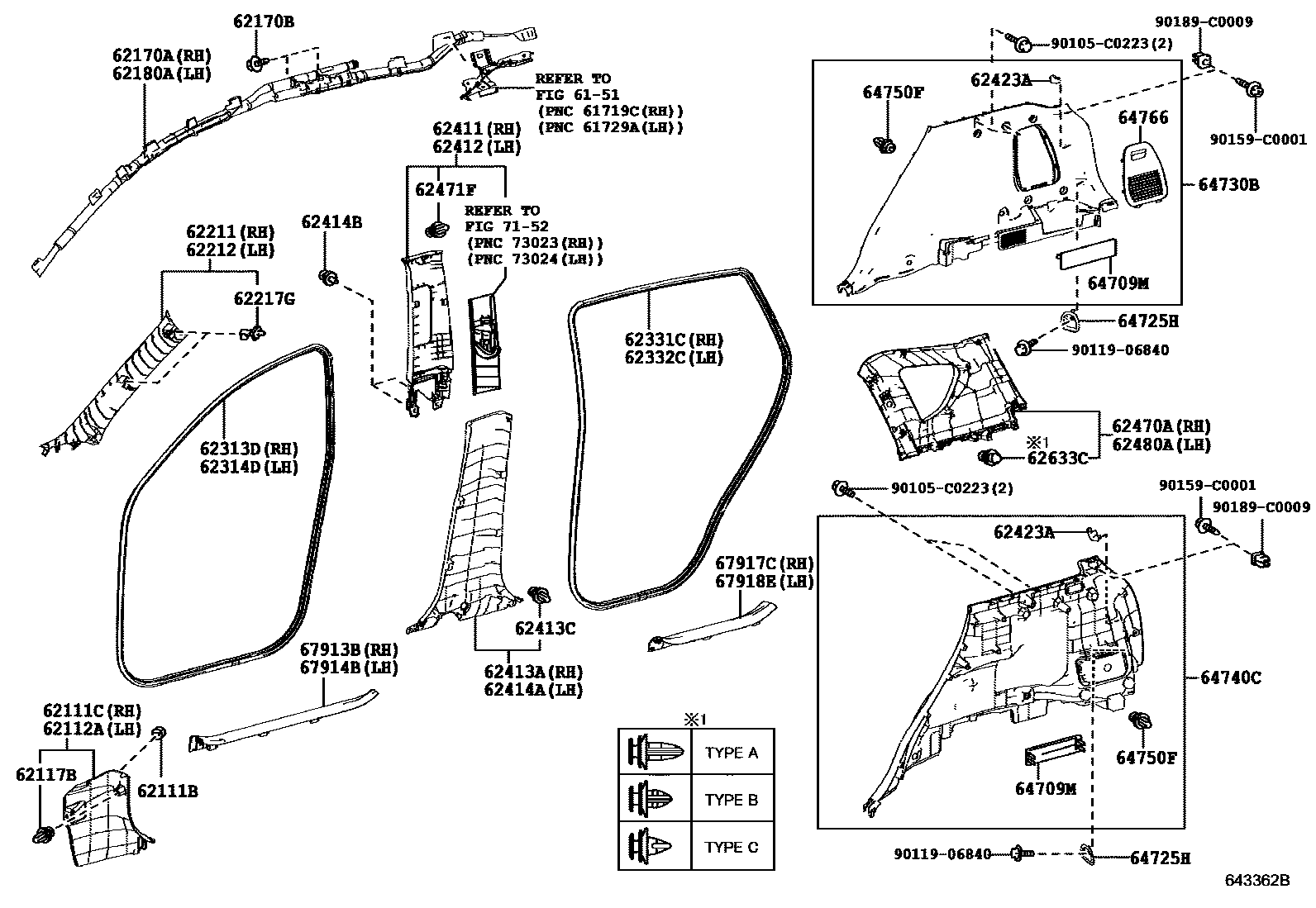

INSIDE TRIM BOARD

0001 1 0002 1 0003 1

6151

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06147iASA44,ZSA4#201308-201607

main90467-06155iASA4#,ZSA4#201607-201911

62111CBOARD, COWL SIDE TRIM, RH

main62111-0R040-C0iASA44;ZSA44..G201308-201607

BLACK,TRIM2#,4#

main62111-0R040-C0iASA44;ZSA44..G201308-201607

BLACK,TRIM2#,3#,4#

main62111-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,3#,4#

main62111-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,4#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-0R040-C0iASA45;ASA44..M201607

BLACK,TRIM1#,2#,3#,4#

main62112-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main62112-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main62112-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-10161iASA44,ZSA4#201308-201501

main90467-C0036iASA44,ZSA4#201502-201911

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0R050iASA44,ZSA4#201308-201607

62170BBOLT, W/WASHER

main90119-06869iASA44,ZSA4#201308-201607

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0R050iASA44,ZSA4#201308-201607

62211GARNISH, FRONT PILLAR, RH

main62210-0R060-B0iZSA4#..M,X201308-201607

LT.GRAY,TRIM2#,4#

main62210-0R060-B0iZSA4#..M,X201308-201607

LT.GRAY,TRIM2#,3#,4#

main62210-0R060-B0iASA44..Q;ZSA4#..G,M201607

LT.GRAY,TRIM1#,2#,3#,4#

main62210-0R060-B0iASA44..Q;ZSA4#..G,M201607

LT.GRAY,TRIM1#,2#,4#

62212GARNISH, FRONT PILLAR, LH

main62220-0R060-B0iZSA4#..M,X201308-201607

LT.GRAY,TRIM2#,4#

main62220-0R060-B0iZSA4#..M,X201308-201607

LT.GRAY,TRIM2#,3#,4#

main62220-0R060-B0iASA44..Q;ZSA4#..G,M201607

LT.GRAY,TRIM1#,2#,3#,4#

main62220-0R060-B0iASA44..Q;ZSA4#..G,M201607

LT.GRAY,TRIM1#,2#,4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52120iASA44,ZSA4#201308-201607

62313DTRIM, FRONT DOOR OPENING, RH

main62311-0R040iASA44,ZSA4#201308-201607

62314DTRIM, FRONT DOOR OPENING, LH

main62312-0R040iASA44,ZSA4#201308-201607

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0R040iASA44,ZSA4#201308-201607

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0R040iASA44,ZSA4#201308-201607

62411GARNISH, CENTER PILLAR, RH

main62410-0R040-B0iZSA4#..M,X201308-201511

LT.GRAY,TRIM2#,4#

sub62410-0R041

main62410-0R040-B0iZSA4#..M,X201308-201511

LT.GRAY,TRIM2#,3#,4#

sub62410-0R041

main62410-0R041-B0iZSA4#..M,X201512-201607

LT.GRAY,TRIM2#,4#

main62410-0R041-B0iZSA4#..M,X201512-201607

LT.GRAY,TRIM2#,3#,4#

62412GARNISH, CENTER PILLAR, LH

main62420-0R040-B0iZSA4#..M,X201308-201511

LT.GRAY,TRIM2#,4#

sub62420-0R041

main62420-0R040-B0iZSA4#..M,X201308-201511

LT.GRAY,TRIM2#,3#,4#

sub62420-0R041

main62420-0R041-B0iZSA4#..M,X201512-201607

LT.GRAY,TRIM2#,4#

main62420-0R041-B0iZSA4#..M,X201512-201607

LT.GRAY,TRIM2#,3#,4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main62413-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main62413-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,3#,4#

main62413-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10167iASA44,ZSA4#201308-201607

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main62414-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main62414-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,3#,4#

main62414-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,4#

62414BCLIP (FOR CENTER LOWER GARNISH)

main90467-10216iASA44,ZSA4#201308-201707

main90467-C0046iASA4#,ZSA4#201708

62423AHOOK, SIDE WINDOW GARNISH

main62423-0R030-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main62423-0R030-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main62423-0R030-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,3#,4#

main62423-0R030-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-0R050-B0iZSA42..X201607

LT.GRAY,TRIM1#,2#,3#,4#

main62470-0R050-B0iZSA4#..M,X201308-201607

LT.GRAY,TRIM2#,4#

main62470-0R050-B0iZSA4#..M,X201308-201607

LT.GRAY,TRIM2#,3#,4#

main62470-0R050-B0iASA44..Q;ZSA4#..G,M201607

LT.GRAY,TRIM1#,2#,4#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-10188iASA4#,ZSA4#201308-201607

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-0R060-B0iASA44;ZSA44..G201308-201607

LT.GRAY,TRIM2#,4#

main62480-0R060-B0iASA44;ZSA44..G201308-201607

LT.GRAY,TRIM2#,3#,4#

main62480-0R060-B0iASA44..Q;ZSA4#..G,M201607

LT.GRAY,TRIM1#,2#,3#,4#

main62480-0R060-B0iASA44..Q;ZSA4#..G,M201607

LT.GRAY,TRIM1#,2#,4#

62633CCLIP (FOR QUARTER TRIM GARNISH)

main90467-09240iASA44,ZSA4#201308-201607

TYPE C:REFER ILLUST.

main90467-10161iASA44,ZSA4#201308-201501

TYPE A:REFER ILLUST.

main90467-10167iASA4#,ZSA4#201308-201607

TYPE B:REFER ILLUST.

main90467-C0036iASA44,ZSA4#201502-201607

TYPE A:REFER ILLUST.

64709MCOVER SUB-ASSY, DECK TRIM POCKET

main64709-0R010iASA44,ZSA4#201308-201607

64725HHOOK, QUARTER TRIM,

main58460-33020iASA44,ZSA4#201308-201607

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0R040-C0iASA44;ZSA44..G201308-201607

BLACK,TRIM2#,4#

main64730-0R040-C0iASA44;ZSA44..G201308-201607

BLACK,TRIM2#,3#,4#

main64730-0R080-C0iASA45..Q201901

BLACK,TRIM2#,3#,4#

main64730-0R080-C0iZSA4#..G201607

AUDIO-AVN & JBL & *BT,BLACK,TRIM1#,2#,3#,4#

main64730-0R080-C0iASA44..Q201607

BLACK,TRIM1#,2#,3#,4#

main64730-0R090-C0iASA4#..M201607

BLACK,TRIM1#,2#,4#

main64730-0R090-C0iASA4#..M201607

BLACK,TRIM1#,2#,3#,4#

main64730-0R090-C0iASA4#..M201607

BLACK,TRIM2#,3#,4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0R050-C0iASA45;ASA44..M201607

BLACK,TRIM1#,2#,3#,4#

main64740-0R050-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main64740-0R050-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main64740-0R050-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,4#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iASA44,ZSA4#201308-201501

main90467-C0036iASA44,ZSA4#201502-201607

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64766-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main64766-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main67913-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main67913-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,3#,4#

main67913-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main67914-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main67914-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,3#,4#

main67914-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main67917-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main67917-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,3#,4#

main67917-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,4#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,4#

main67918-0R040-C0iZSA4#..M,X201308-201607

BLACK,TRIM2#,3#,4#

main67918-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,3#,4#

main67918-0R040-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,4#

7152

90105C0223

main90105-C0223

9011906840

main90119-06840

90159C0001

main90159-C0001

90189C0009

main90189-C0009

41 parts on this diagram · 3 diagrams in section
