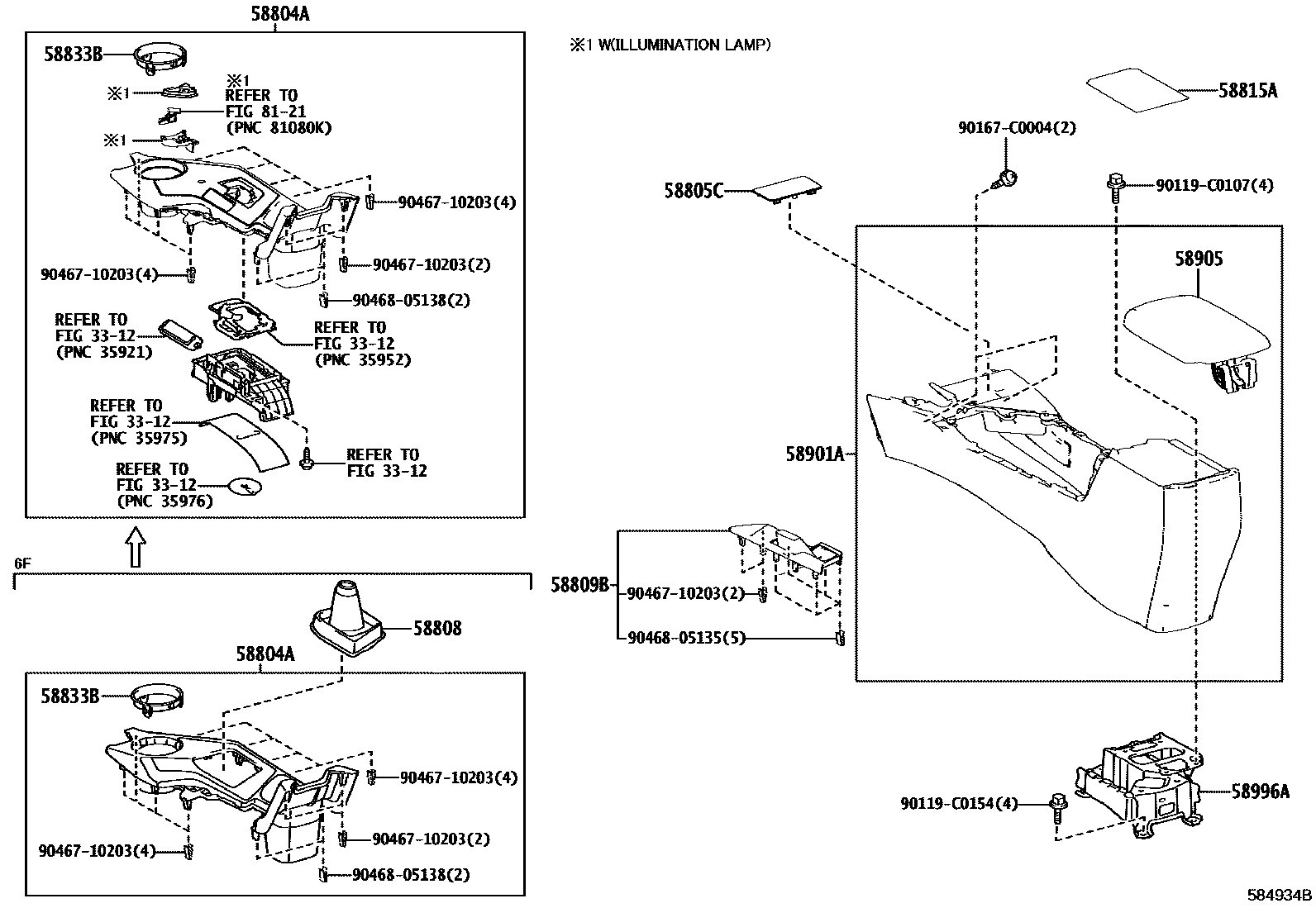

CONSOLE BOX & BRACKET

0001 1 0002 1

3312

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0R040-C0iZSA42..6F201308-201511

BLACK,TRIM2#,4#

main58804-0R041-C0iZSA42..6F201512-201607

BLACK,TRIM2#,4#

main58804-0R050-C0iASA44..M201308-201511

BLACK,TRIM2#,3#,4#

main58804-0R051-C0iASA44..M201512-201607

BLACK,TRIM2#,3#,4#

main58804-0R060-C0iZSA4#..CVT..(M,X)201308-201511

BLACK,TRIM2#,4#

main58804-0R061-C0iZSA4#..CVT..(M,X)201512-201607

BLACK,TRIM2#,4#

main58804-0R070-C0iZSA44..G201308-201511

BLACK,TRIM2#,3#,4#

main58804-0R071-C0iZSA44..G201512-201607

BLACK,TRIM2#,3#,4#

main58804-0R090-C0iASA44..G,Q201308-201511

BLACK,TRIM2#,3#,4#

main58804-0R091-C0iASA44..G,Q201512-201607

BLACK,TRIM2#,3#,4#

main58804-0R140-C0iZSA4#..M,X201607

BLACK,TRIM2#,4#

main58804-0R150-C0iASA4#201607

BLACK,TRIM2#,3#,4#

main58804-0R160-C0iZSA4#..G201607

BLACK,TRIM2#,3#,4#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-0R050-C0iASA44;ZSA44..G201308-201607

BLACK,TRIM2#,3#,4#

main58805-0R070-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,3#,4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0R020-C0iZSA42..6F201308-201607

BLACK,TRIM2#,4#

58809BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58809-0R020-C1iASA44;ZSA44..G201308-201607

BLACK,TRIM2#,3#,4#

main58809-0R030-C0iASA44..Q;ZSA4#..G,M201607

BLACK,TRIM1#,2#,3#,4#

58815ACARPET, CONSOLE BOX

main58815-0R040iASA44,ZSA4#201607-201610

main58815-0R070iASA4#,ZSA4#201611

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58831-0R040iASA4#,ZSA4#201607

main58833-0R050iASA44,ZSA4#..M,X201308-201607

main58833-0R070iASA44,ZSA44..G,Q201308-201607

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-0R050-C0iZSA4#..M,X201308-201511

BLACK,TRIM2#,4#

main58901-0R051-C0iZSA4#..M,X201512-201607

BLACK,TRIM2#,4#

main58901-0R070-C0iASA44;ZSA44..G201308-201511

BLACK,TRIM2#,3#,4#

main58901-0R071-C0iASA44;ZSA44..G201512-201607

BLACK,TRIM2#,3#,4#

main58901-0R110-C0iZSA42..X201607

BLACK,TRIM1#,2#,3#,4#

main58901-0R120-C0iASA44,ZSA4#..G,Q201607

BLACK,TRIM1#,2#,3#,4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0R050-C0iZSA42..X201607

BLACK,TRIM1#,2#,3#,4#

main58905-0R070-C0iASA44,ZSA4#..G,Q201607

BLACK,TRIM1#,2#,3#,4#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0R040iASA44,ZSA4#201308-201607

8121

90119C0107

main90119-C0107

90119C0154

main90119-C0154

90167C0004

main90167-C0004

9046710203

main90467-10203

9046805135

main90468-05135

9046805138

main90468-05138

17 parts on this diagram · 2 diagrams in section
