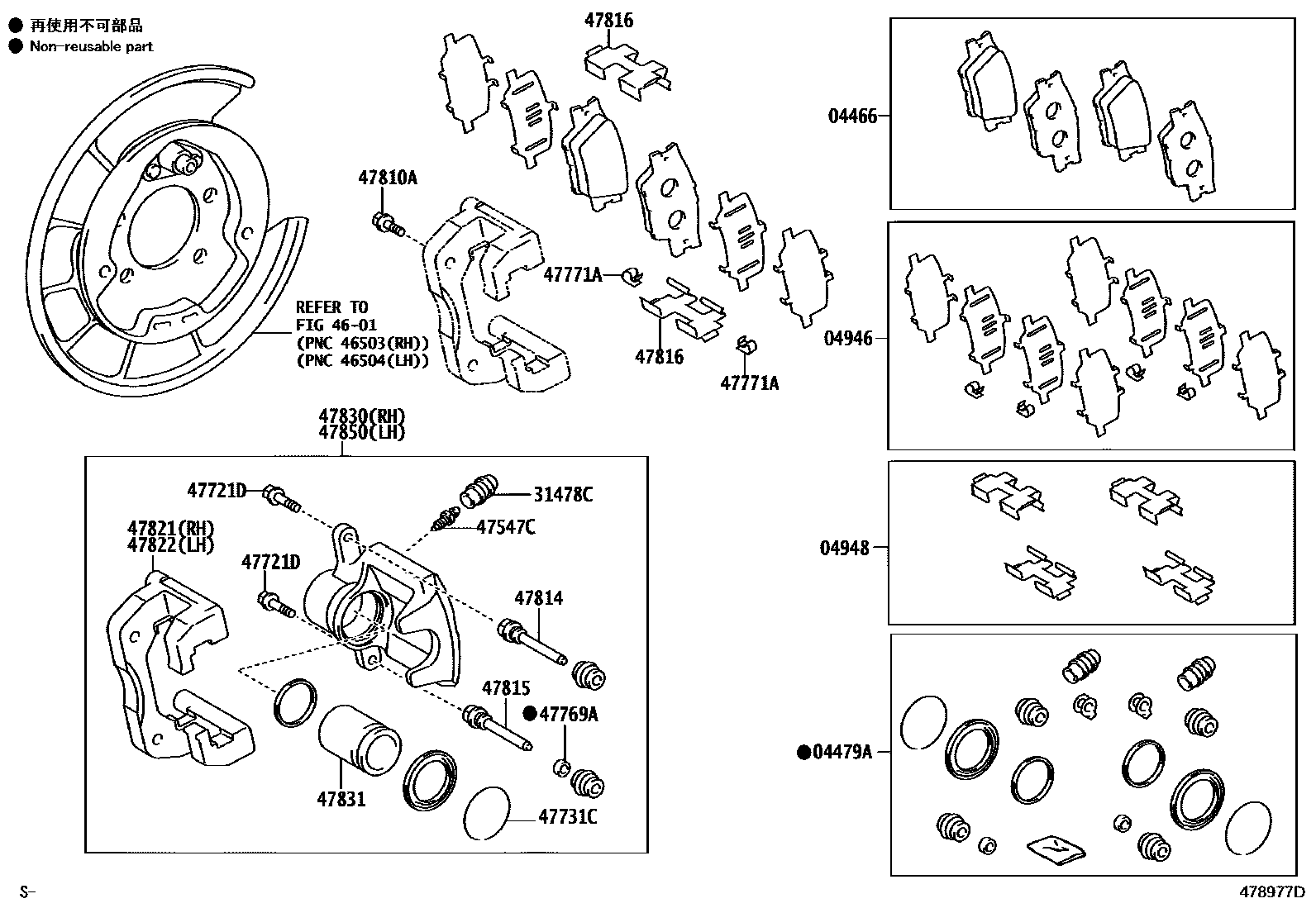

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-42060iASA44,ZSA4#201308-201411

MARK ADVICS PS558

main04466-42070iASA44,ZSA4#201411-201607

MARK ADVICS PS558

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06320iASA4#,ZSA4#201607

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0R025iASA44,ZSA4#201308-201607

04948FITTING KIT, DISC BRAKE, REAR

main04948-0R020iASA44,ZSA4#201308-201607

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-06020×2iASA44,ZSA4#201308-201607

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12010×2iASA44,ZSA4#201308-201607

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA608×4iASA44,ZSA4#201308-201607

*8-1.00PX23-15

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006×2iASA44,ZSA4#201308-201607

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-06130×2iASA44,ZSA4#201308-201607

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47871-47060×4iASA4#,ZSA4#201607

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-C0140×4iASA44,ZSA4#201308-201607

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06130×2iASA44,ZSA4#201308-201607

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-06130×2iASA44,ZSA4#201308-201607

47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-0R040×4iASA44,ZSA4#201311-201607

main47816-0R041×4iASA44,ZSA4#201308-201311

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0R040iASA44,ZSA4#201308-201607

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0R040iASA44,ZSA4#201308-201607

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0R040iASA44,ZSA4#201308-201607

47831PISTON, REAR DISC BRAKE

main47831-06130×2iASA44,ZSA4#201308-201607

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0R040iASA44,ZSA4#201308-201607

20 parts on this diagram · 1 diagram in section
