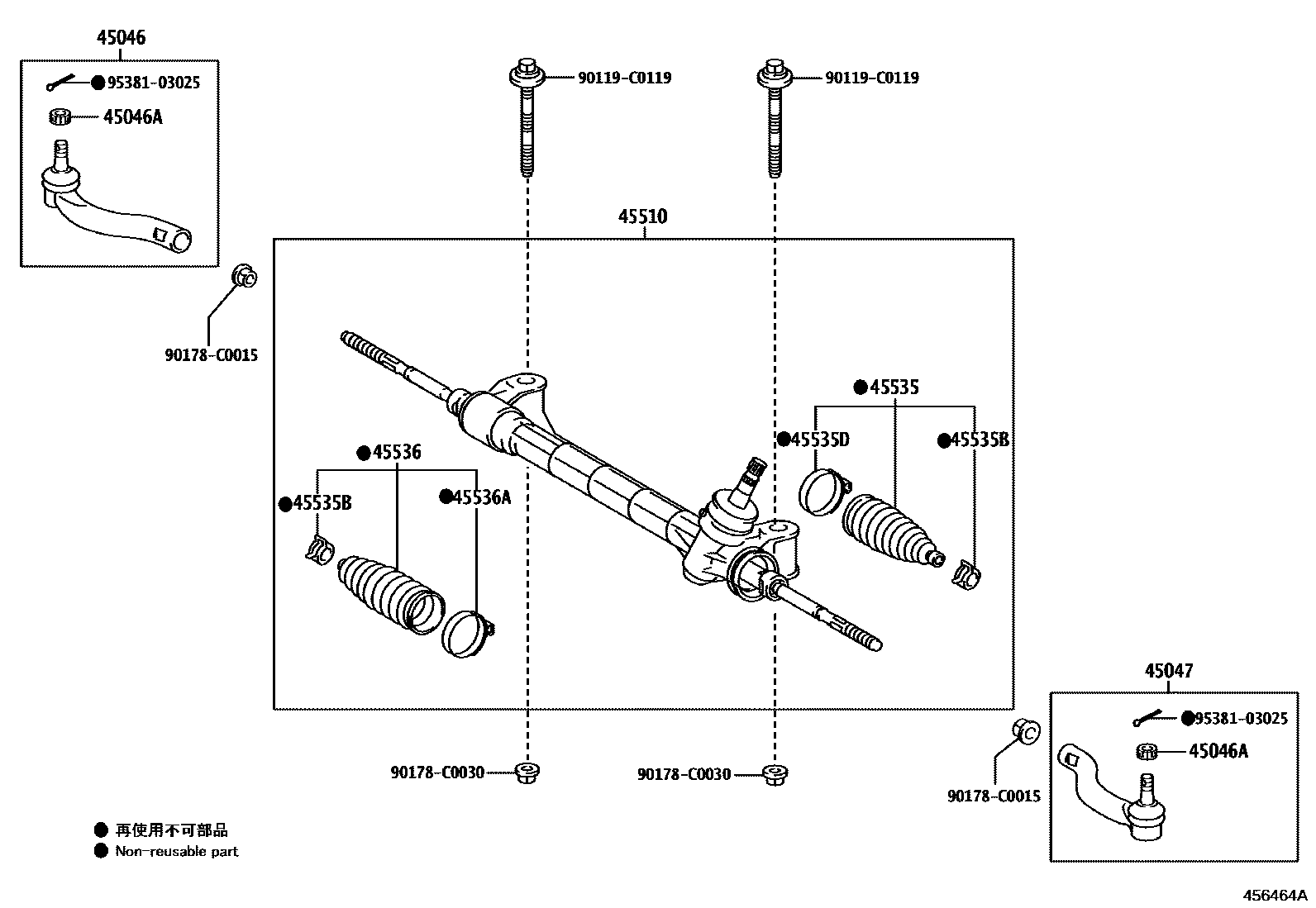

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09675iASA4#,ZSA4#201607

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-C0001×2iASA44,ZSA4#201308-201607

45047END SUB-ASSY, TIE ROD, LH

main45047-09335iASA4#,ZSA4#201607

45510GEAR ASSY, STEERING

main45510-0R080iASA44..M201308-201412

main45510-0R081iZSA4#201607

main45510-0R090iASA44..G,Q201308-201607

main45510-0R091iASA4#201607

45535BOOT, STEERING RACK, NO.1

main45535-09310iASA44,ZSA4#201308-201607

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0R020×2iASA44,ZSA4#201308-201607

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-42010iASA44,ZSA4#201308-201607

45536BOOT, STEERING RACK, NO.2

main45535-09310iASA44,ZSA4#201308-201607

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-42010iASA44,ZSA4#201308-201607

90119C0119

main90119-C0119

90178C0015

main90178-C0015

90178C0030

main90178-C0030

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section
