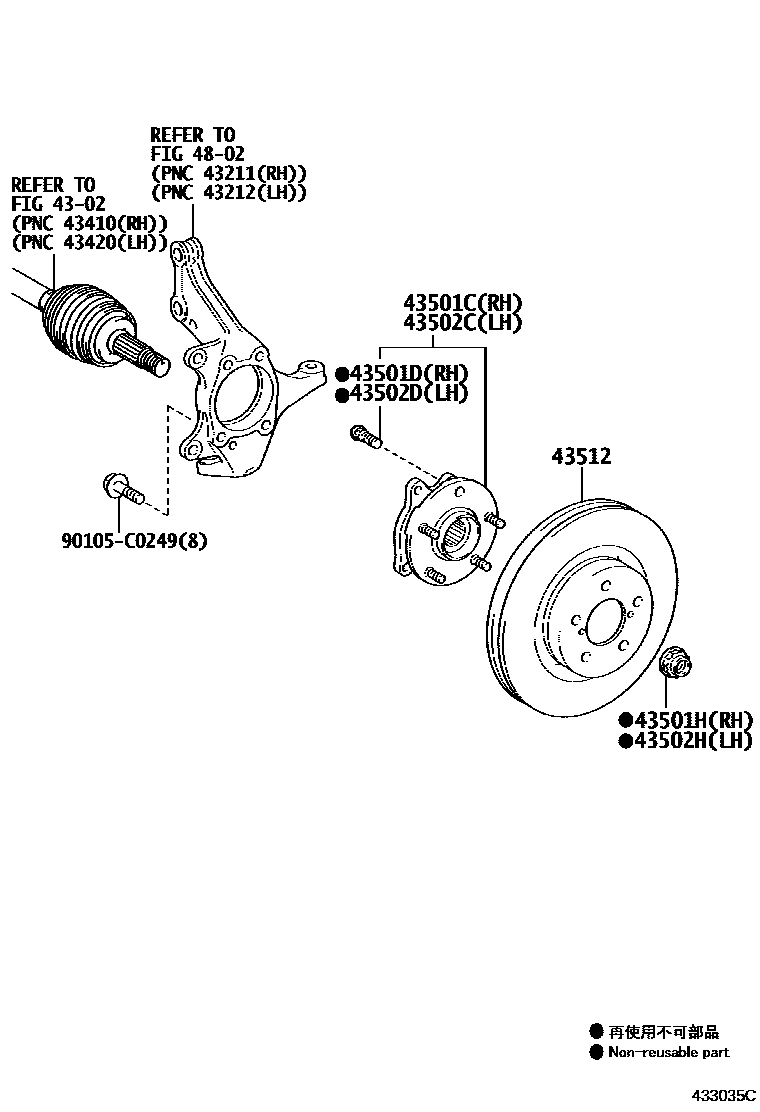

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0R030iASA44,ZSA42..6F,6FC201308-201607

main43550-0R040iZSA4#..CVT201308-201607

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iASA44,ZSA4#201308-201607

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iASA44,ZSA4#201308-201607

main90177-C0004iASA4#,ZSA4#201807

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0R030iASA44,ZSA42..6F,6FC201308-201607

main43550-0R040iZSA4#..CVT201308-201607

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iASA44,ZSA4#201308-201607

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iASA44,ZSA4#201308-201607

main90177-C0004iASA4#,ZSA4#201807

(L)

43512DISC, FRONT

main43512-0R030×2iASA44,ZSA4#201308-201607

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

90105C0249

main90105-C0249

10 parts on this diagram · 1 diagram in section
